Electricity Supply to
Your Oven
Warning! this appliance must be
earthed.
This appliance must be connected by
a competent person, using fixed wiring
via a double pole switched fused spur
outlet, protected by a 13A fuse.
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.T. and local regulations. The wires in the mains lead are
coloured in accordance with the following code:
GREEN AND YELLOW = EARTH BLUE = NEUTRAL BROWN =
LIVE.
As the colours of the wires in the mains lead for the appliance, may
not correspond with the coloured markings identifying the terminals in
your spur box, proceed as follows:
1. The wire which is coloured green and yellow must be connected to
the terminal marked E (Earth) or coloured Green.
2. The wire which is coloured blue must be connected to the terminal
marked N (Neutral) or coloured Black.
3. The wire which is coloured brown must be connected to the
terminal marked L (Live) or coloured Red.

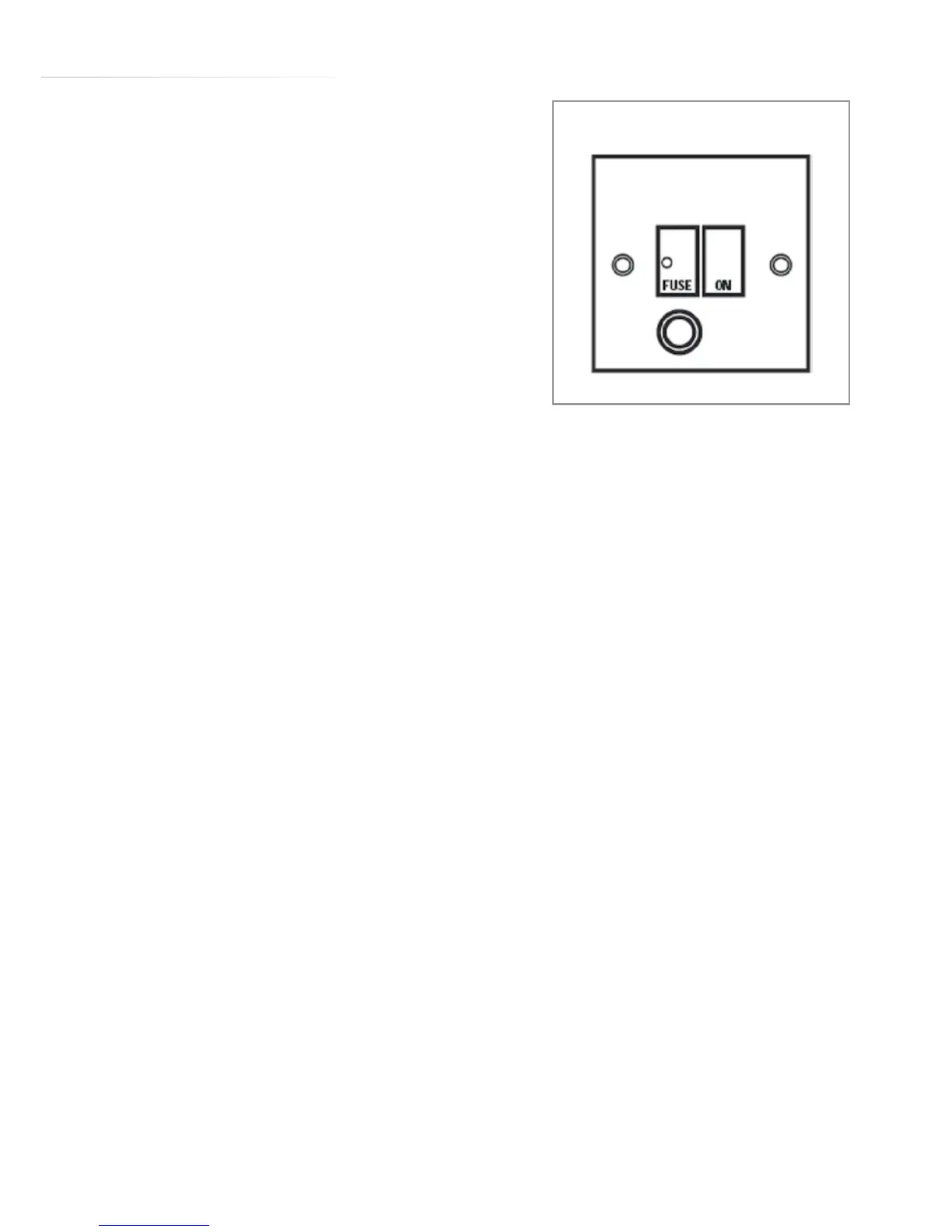

DOUBLE POLE SWITCHED
FUSE SPUR OUTLET
13A
