ATRIUM
2-Door Controller
INSTALLATION MANUAL
EN
ATRIUM
2-Door Controller
INSTALLATION MANUAL


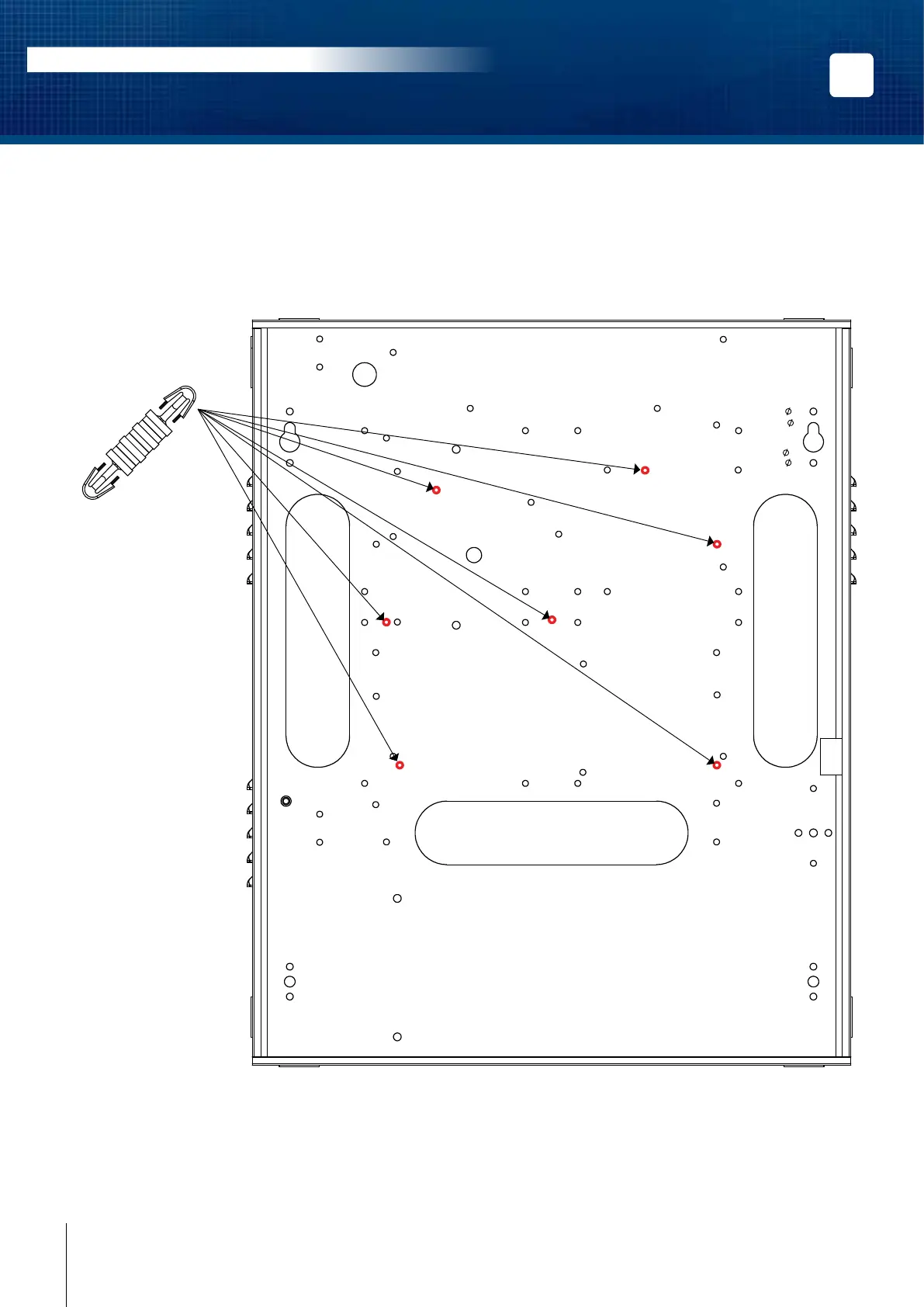

Install the 7 fasteners (PCB holder) supplied respectively to the box holes identied in red in the following
picture.
