6] PROGRAMMATION
The stand-alone card enrollment allows you to add or delete user cards without the need of a PC by using one
of the following procedures.
CARD ENROLLMENT PROCEDURE

1. Press and hold the on-board MODE button for 1 second.
The STAT LED blink once every 3 seconds.
2. Within ve minutes, choose any card reader of the system and
present the PROGRAMMING card to start adding/removing cards.
Reader LEDs will begin ashing in sequence (2 Red ashes + 2 Green).
3. Present cards, one by one, to the reader.
NEW cards will be ADDED:
Green LED will ash and a pulsed beep will be emitted.
Each new card will create a user and attribute the card to the user
EXISTING cards will be DELETED:
Red LED will ash & a long beep will be emitted.
4. Present the PROGRAMMING card again to stop enrollment mode.
The ashing sequence (2 Red ashes + 2 Green) will stop.
The card enrollment learning mode automatically ends when no new card is presented for 5 minutes

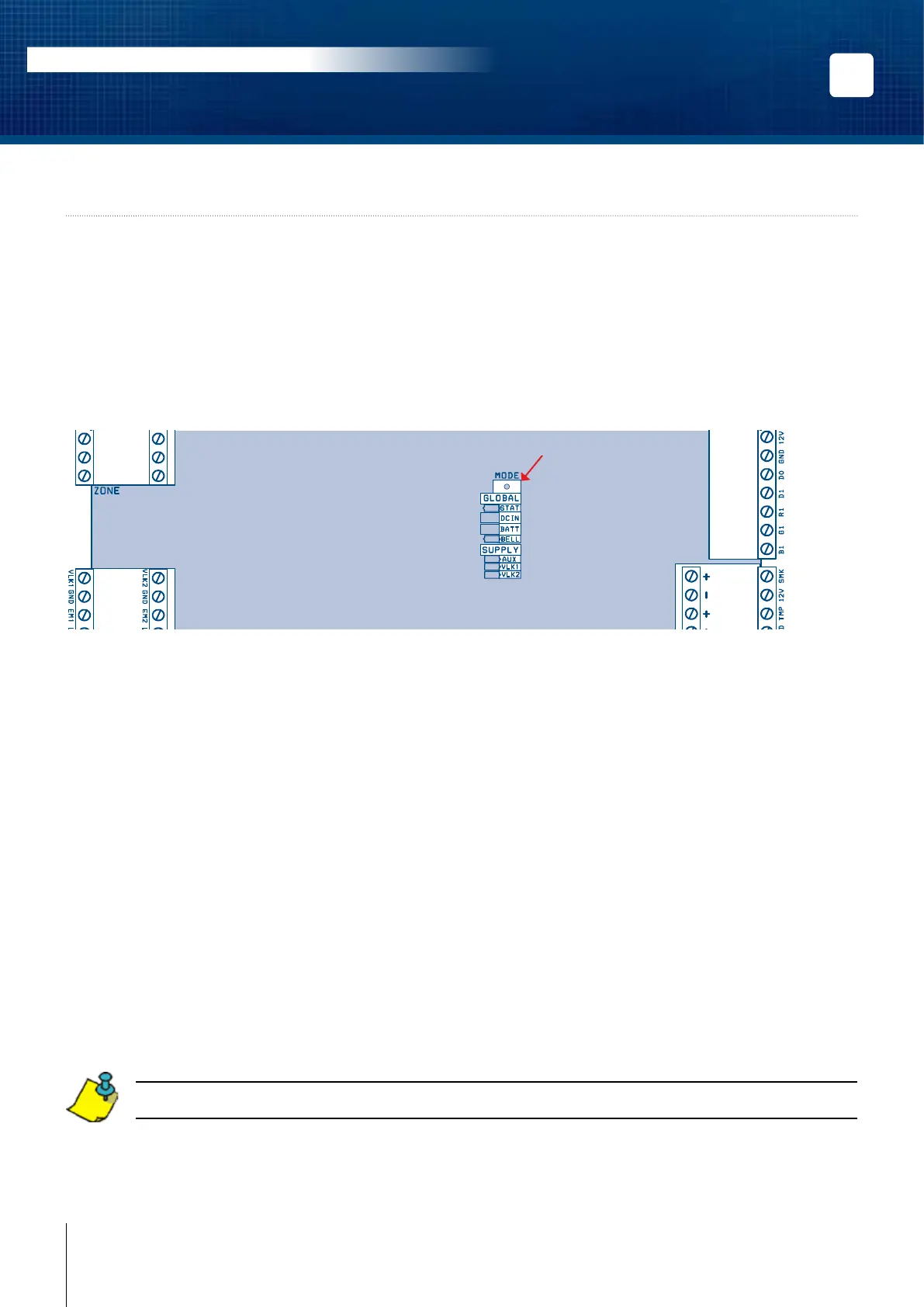

READER 2
INPUTS
LOCAL
BUS
READER 1
BATT.
POWER
SUPPLY
BELL
DOOR 2
12V Z6 GND Z7 Z8
C1
NO1 NC1
C2
NO2 NC2
GND Z9 Z10
12V Z1 GND Z2 Z3
GND Z4 Z5
AC22
2-Door Controller
1 x Sealed
Rechargeable
GEL Type Battery
12Vdc @ 7Ah
1
2
Card
ENROLLMENT MODE
button
