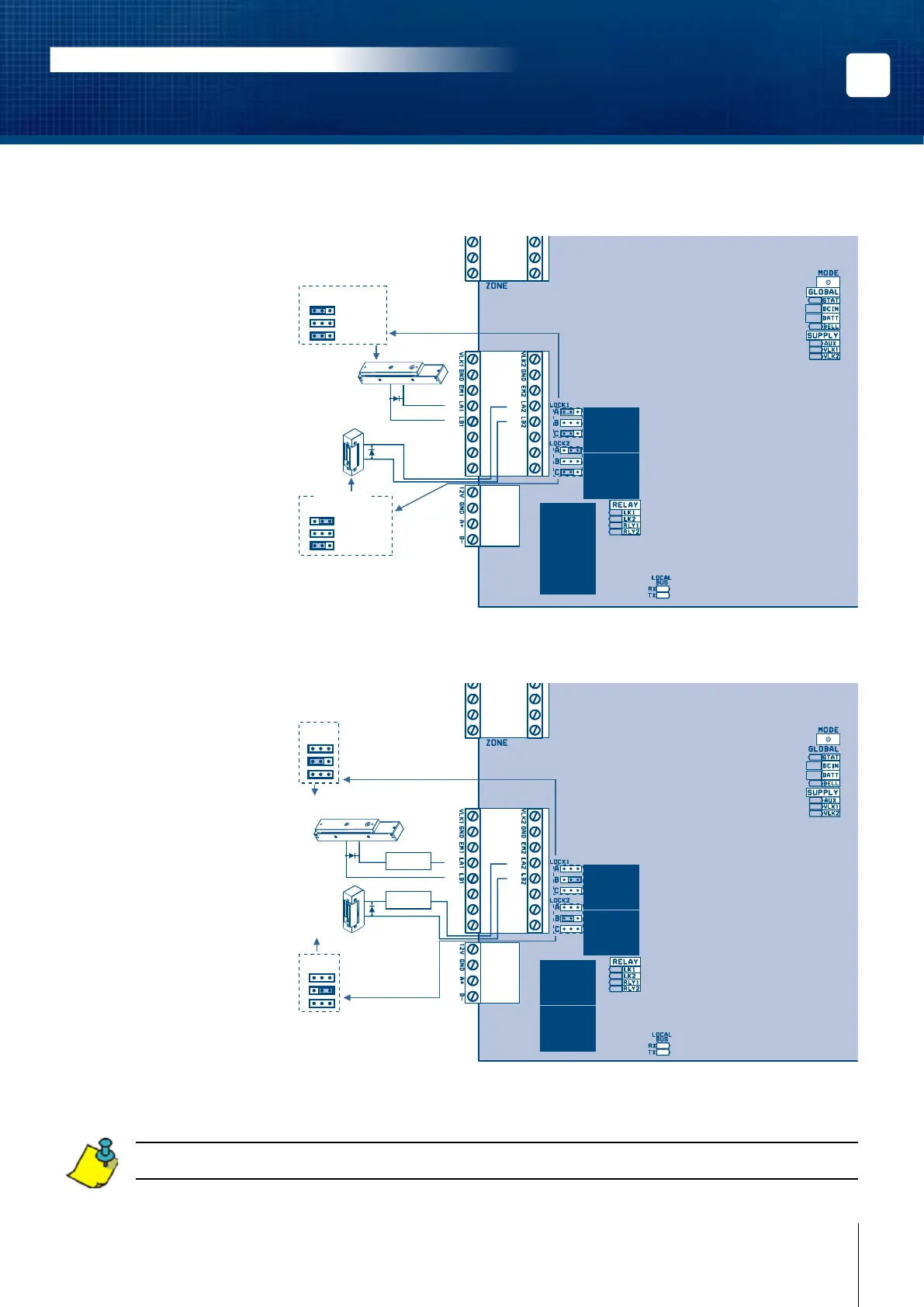

Wiring Diagram of Locking Device
READER 2
INPUTS
LOCAL
BUS
READER 1
BATT.
POWER
SUPPLY
BELL
DOOR 2
DOOR 1
12V Z6 GND Z7 Z8
C1
NO1 NC1
C2
NO2
NC2
GND
Z9 Z10
AC22
2-Door Controller
1
2
Work with
“Fail Safe”
device
A
B
C
ENERGIZED (12V)
A
B
C
Work with
“Fail Secure”
device
Default
DE-ENERGIZED (0V)
Electromagnetic
Option
Door
Strike
Option
+
-
+
-
Lock Outputs:
750mA @ 12Vdc
READER 2
INPUTS
LOCAL
BUS
READER 1
BATT.
POWER
SUPPLY
BELL
DOOR 2
DOOR 1
12V Z6 GND Z7 Z8
C1
NO1 NC1
C2
NO2 NC2
GND Z9 Z10
1
2
N.C. DRY
CONTACT
A
B
C
Power Supply
Power Supply
N.O. DRY
CONTACT
A
B
C
Electromagnetic
Option
DoorStrike
Option
+
-
+
+
-
-
+
-
Lock Outputs:
750mA @ 12Vdc
AC22
2-Door Controller
See “Recommended Wiring” section for more information on wiring type, size, and maximum length.
Terminals EM1 and EM2 are reserved for future use.
Using On-Board
Power Supply
Using External
Power Supply
