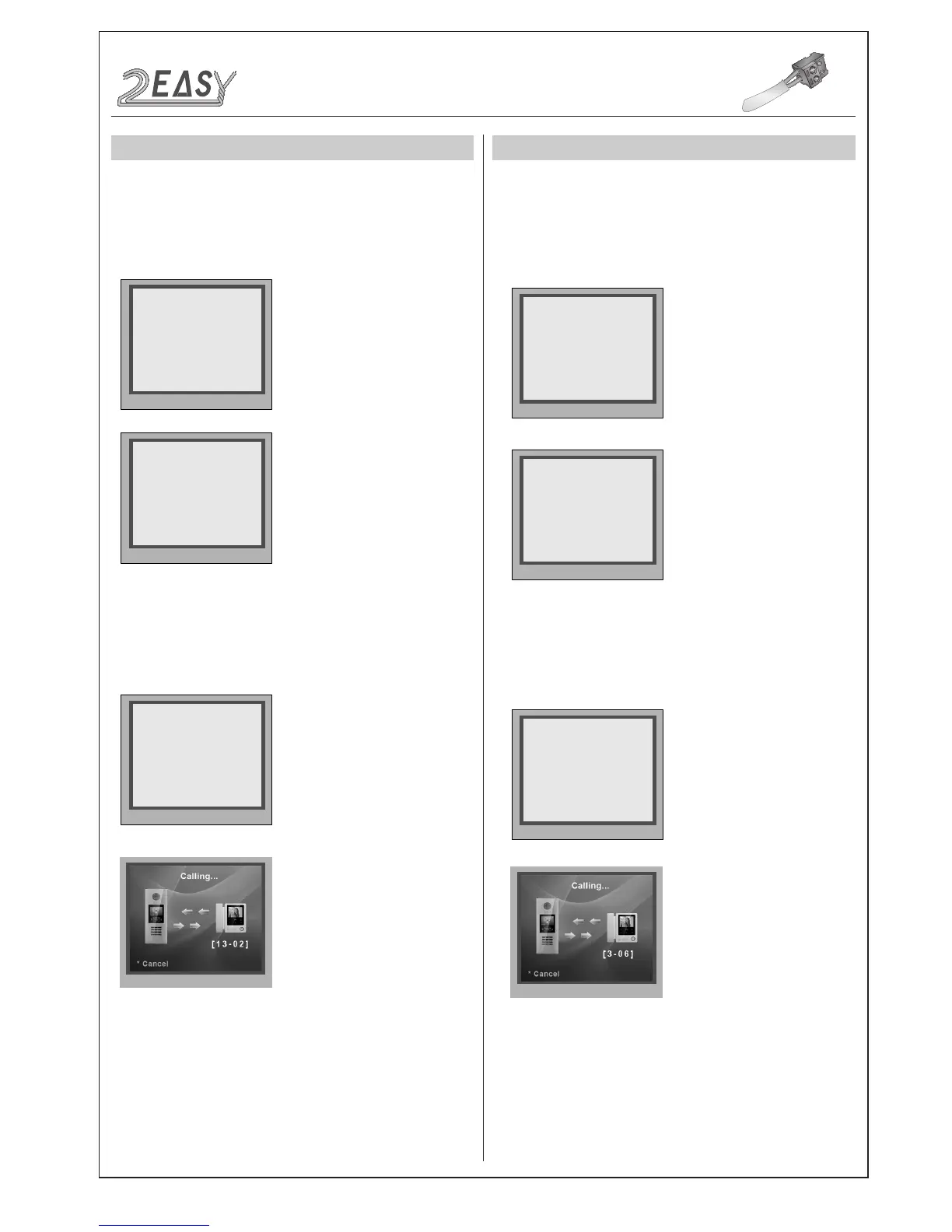

CDVI DMR18S - Router and Gateway Mode Setup

2 EASY
Work Mode Set to
2
, and ID code set to
0~3
.
Work Mode set to
3
, and ID code set to
0~3
.
DT-BDU ROUTER MODE
DT-BDU GATEWAY MODE
* Cancel # Save
(0~3)
[ 2 ]
5. Work Mode [0]
* Cancel # Save
[ * * * 1 1 - 1 1 ]
5. Doorplate Mode [11]
0: *
1: 123
2: ABC
3: -
* Cancel # Save
(0~3)
[ 0 ]
1. ID Code [0]
* Cancel # Save
(0~3)
[ 3 ]
5. Work Mode [0]
* Cancel # Save
[ * * * * 1 - 1 1 ]
5. Doorplate Mode [11]
0: *
1: 123
2: ABC
3: -
* Cancel # Save
(0~3)
[ 0 ]
1. ID Code [0]
Input Mode
: In standby mode enter #8001+ Code ( 66666666 by
default), then select “ 5 ” to set the
Doorplate Mode
, for example
enter 13-02 to call the monitor. As the following picture shows: 13
corresponds to the 13th oor, and 02 corresponds to the second room
number.
Gateway Mode
is used for a community network system, a common
door station is connected into the system which can call all the
monitors, the other door stations connected at each block can only call
the monitors in that block.
Input Mode
: In standby mode. Enter #8001+ Code ( 66666666 by
default), then select “ 5 ” to set the
Doorplate Mode
, for example
enter 3-06 to call the monitor. As the following picture shows: 3
corresponds to the third BDU, and 06 corresponds to the ID code of
monitor.
CONFIGURATION
Work Mode
Router Mode
is used for large capacity systems in conjunction with a
BDU unit. The namelist can be updated by SD Card or CDV-Cong
software (More details refer to
Update Namelist
Section
).
-10- DMR18S Technical Menu
