J. OPTIONAL PROFIL100 EC 2 AND 3 RELAY OUTPUTS
Programming instructions are the same as for the KCIN keypad with 1 relay output.
KCIN 2:
2 relay outputs N/O and N/C contacts 8A @ 250V~
Group 1: from user location 00 to user location 59 to activate relay 1
Group 2: from user location 60 to user location 99 to activate relay 2
Release Time of relay 2 enter *2 sub master code enter *8 (default values 1 and 3).
KCIN 3:
3 relay outputs N/O and N/C contacts 8A @ 250V~
Group 1: from user location 00 to user location 59 to activate relay 1
Group 2: from user location 60 to user location 79 to activate relay 2
Group 3: from user location 80 to user location 99 to activate relay 3
Release time for relay 3 enter *3 sub master code enter *9 (default values 4 and 6)

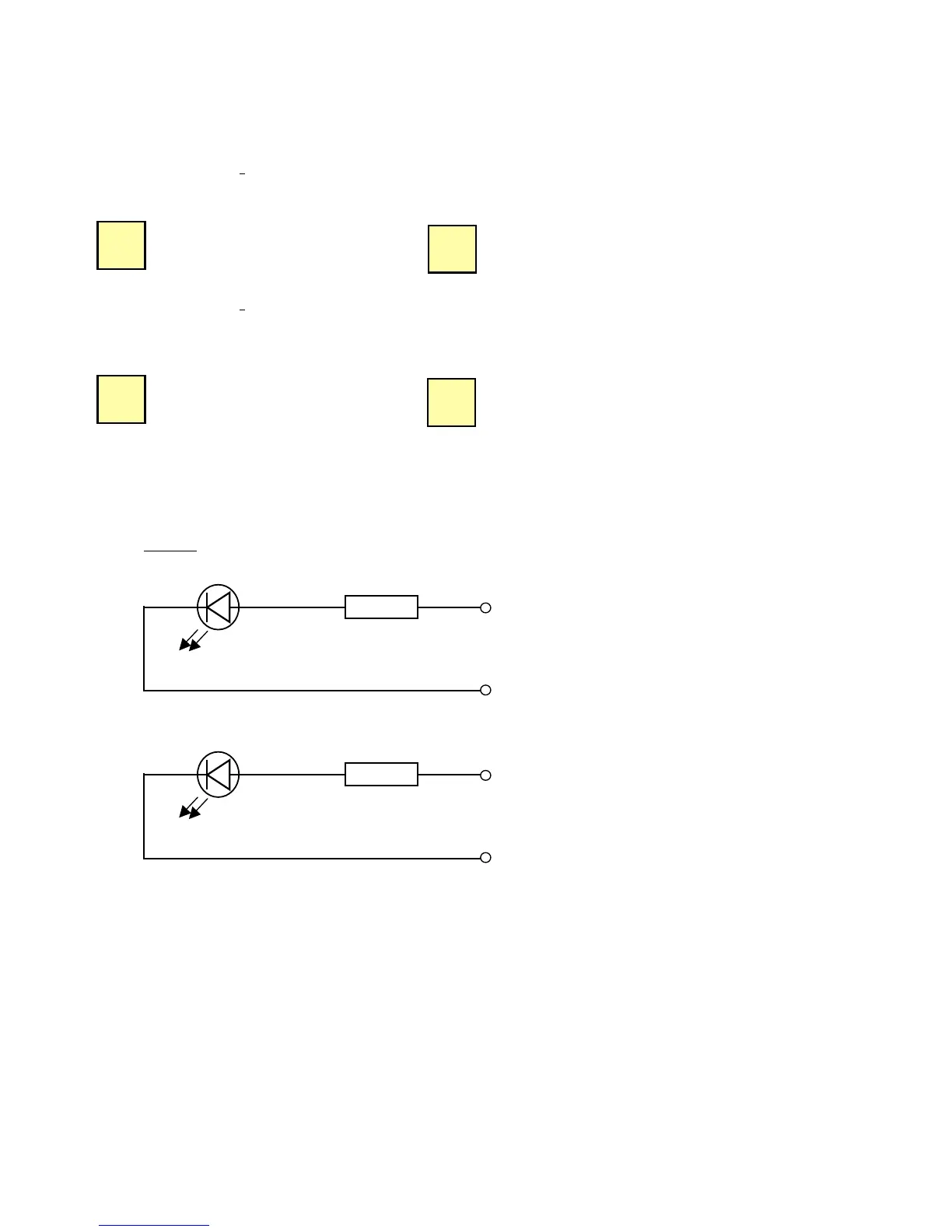

K. Red and Green LEDs’
The red and green LED’s can be powered in 12V DC (resistors are built-in).
Wirings:
Red 2.2K
Green 2.2K
Gray 0V
Orange 12V DC
Pink 12V DC
Light blue 0V
*2
*8
*3
*9
