5 - ELECTRICAL DIAGRAMS
5.1 - Power source art. 2150: see file SCHE2150.pdf enclosed at the end of the manual.

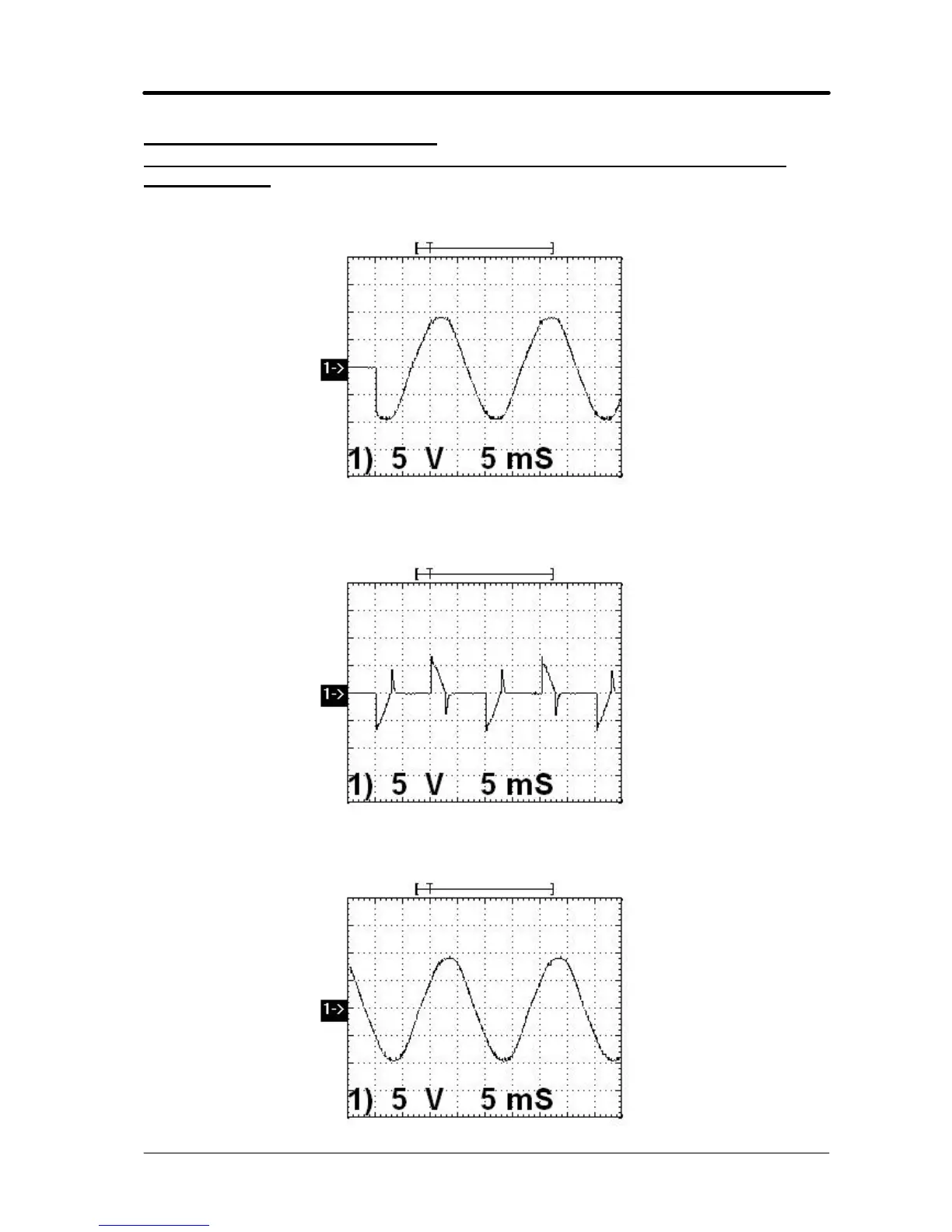

5.2 - Waveforms.
5.2.1 - Output voltage, static switch (14) upon engagement (par. 3.3.1).
5.2.2 - Minimum output voltage, manual mode (par. 3.3.3, 3.3.4).
5.2.3 - Maximum output voltage, manual mode (par. 3.3.3, 3.3.4).
