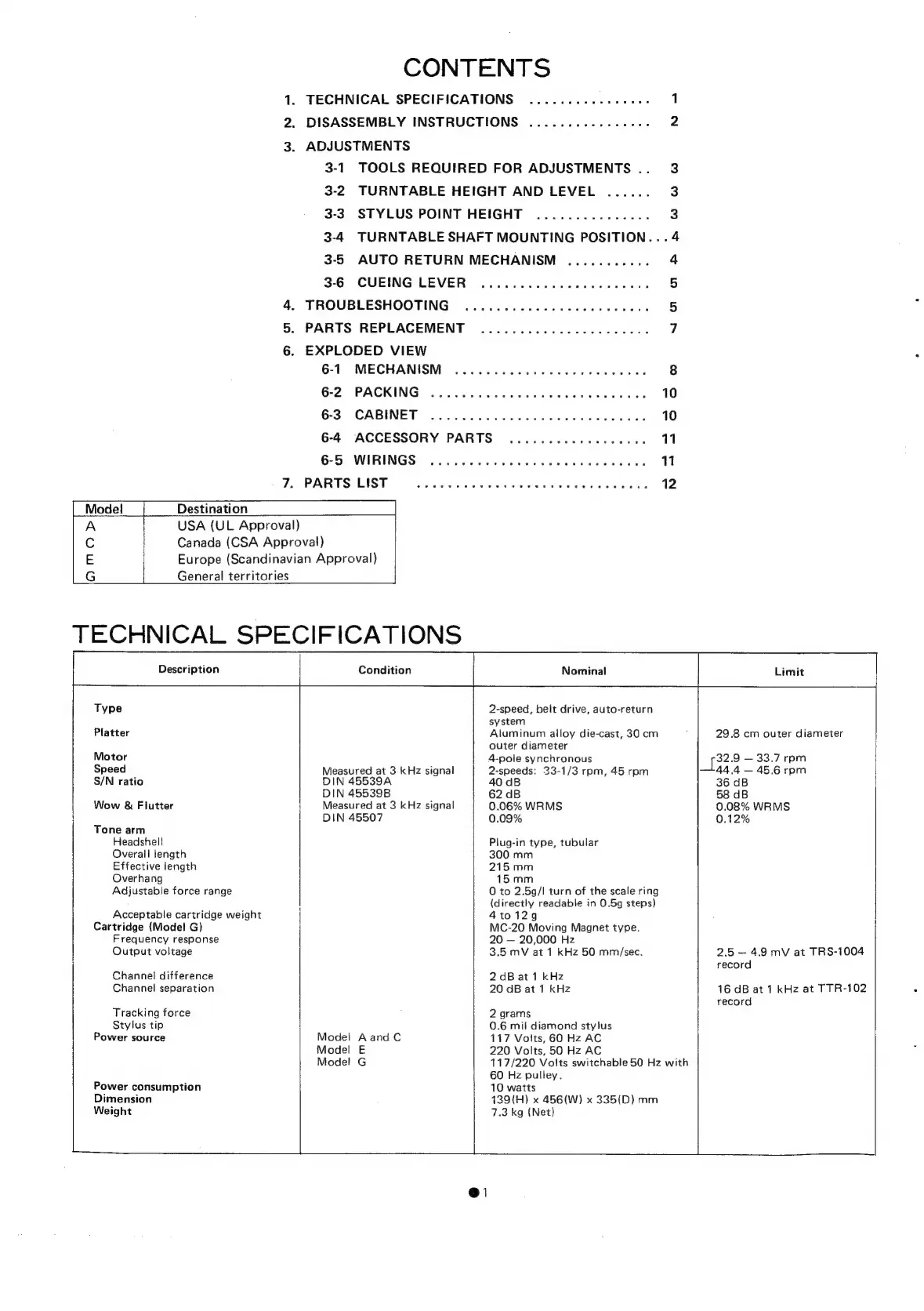

cec BD-3200 - Table of Contents; Technical Specifications

CONTENTS
1. TECHNICAL SPECIFICATIONS
2. DISASSEMBLY INSTRUCTIONS
3. ADJUSTMENTS
3-1 TOOLS REQUIRED FOR ADJUSTMENTS .. 3
3-2. TURNTABLE HEIGHT AND LEVEL ...... 3
3-3 STYLUS POINT HEIGHT ............... 3
3-4 TURNTABLE SHAFT MOUNTING POSITION... 4
3-5 AUTO RETURN MECHANISM ........... 4
3-6 CUEING LEVER .............0 0 eee eee 5
4. TROUBLESHOOTING ............ 2.002 c ee eee 5
5. PARTS REPLACEMENT .............20200000: 7
6. EXPLODED VIEW
6-1 MECHANISM ...........0- 0.2 cee ee eee 8
6:2: PACKING iid ci ca Se eet eee be shawls 10
6-3: CABINET oc site. cv tee ae de eee Meee ode ke 10
6-4 ACCESSORY PARTS ..........0e ee eeee 11
6-5 WIRINGS ....... ccc ce cee eee eee 11
Te PARTS LUST © ceesailsc aie Sater eee a ale dials Seth nee 12
Destination id
USA (UL Approval)
Canada (CSA Approval)
Europe (Scandinavian Approval)
General territories
TECHNICAL SPECIFICATIONS
Description
Adjustable force range
Acceptable cartridge weight
Cartridge (Model G)
Frequency response
Output voltage
Channel difference
Channel separation
Tracking force
Stylus tip
Power source Modei A and C
Model E
Model G
Power consumption
Dimension
Weight
Condition
Type 2-speed, belt drive, auto-return
system
Platter Aluminum alloy die-cast, 30 cm
outer diameter
Motor 4-pole synchronous
Speed Measured at 3 kHz signal 2-speeds: 33-1/3 rpm, 45 rpm
S/N ratio DIN 45539A 40 dB
DIN 455398 62 dB
Wow & Flutter | Measured at 3 kHz signal 0.06% WRMS
DIN 45507 0.09%
Tone arm
Headshell Plug-in type, tubular
Overall length 300 mm
Effective length 215mm
Overhang 15mm
0 to 2.5g/I turn of the scale ring
(directly readable in 0.5g steps)
4to12g
MC-20 Moving Magnet type.
20 — 20,000 Hz
3.5 mV at 1 kHz 50 mm/sec.
2 dB at 1 kHz
20 dB at 1 kHz
2 grams
0.6 mil diamond stylus
117 Volts, 60 Hz AC
220 Volts, 50 Hz AC
117/220 Volts switchable 50 Hz with
60 Hz pulley.
10 watts
139(H) x 456(W) x 335(D) mm
7.3 kg (Net)
ak
Limit
29.8 cm outer diameter
32.9 — 33.7 rpm
44.4 — 45.6 rpm
36 dB
58 dB
0.08% WRMS
0.12%
2.5—49 mV at TRS-1004
record
16 dB at 1 kHz at TTR-102
record
ei
