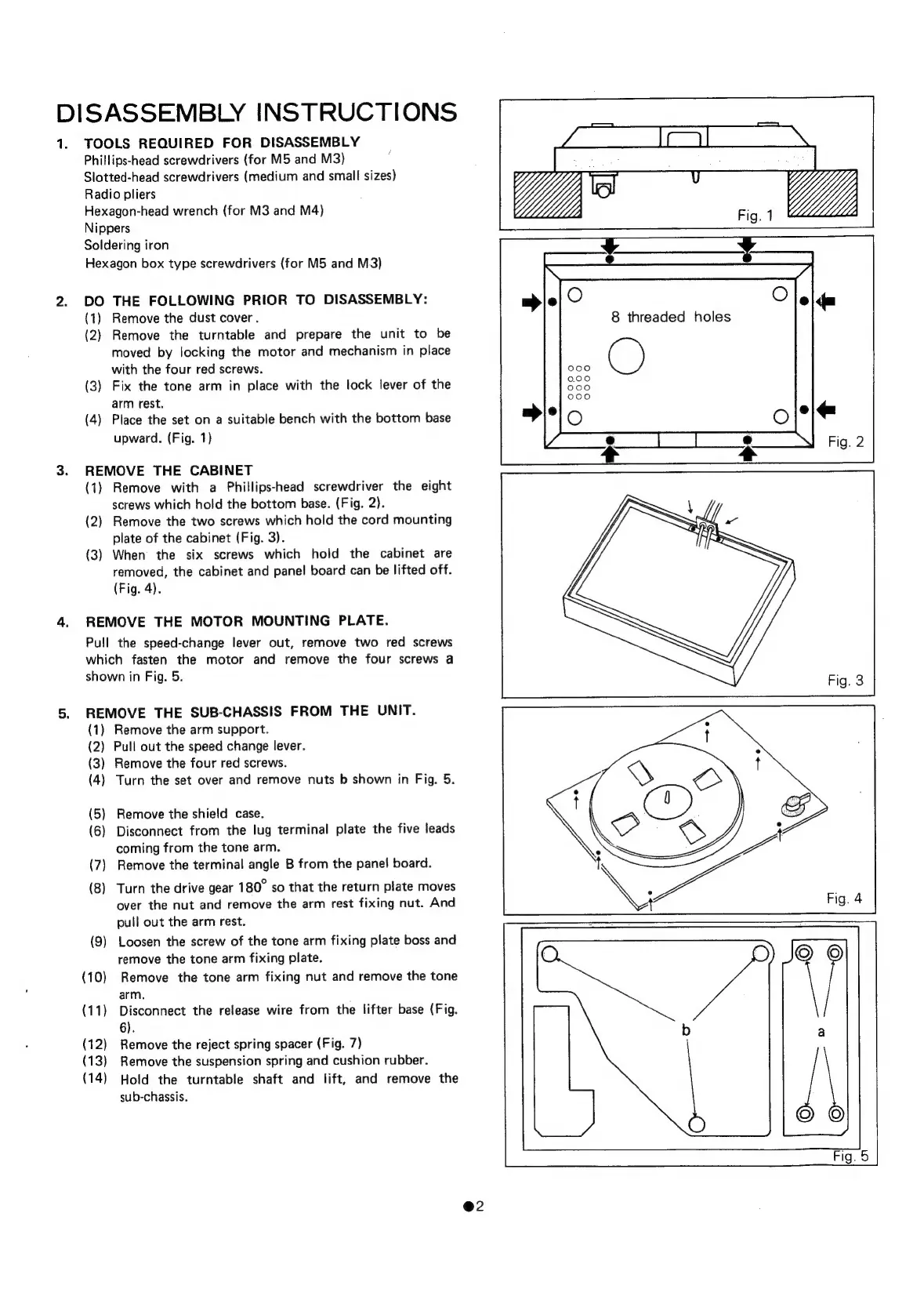

DISASSEMBLY
INSTRUCTIONS
1.
TOOLS
REQUIRED
FOR
DISASSEMBLY
Phillips-head
screwdrivers
(for
M5
and
M3)
Slotted-head
screwdrivers
(medium
and
small
sizes)
Radio
pliers
Hexagon-head
wrench
(for
M3
and
M4)
Nippers
Soldering
iron
Hexagon
box
type
screwdrivers
(for
M5
and
M3)
DO
THE
FOLLOWING
PRIOR
TO
DISASSEMBLY:
(1)
Remove
the
dust
cover.
(2)
Remove
the
turntable
and
prepare
the
unit
to
be
moved
by
locking
the
motor
and
mechanism
in
place
with
the
four
red
screws.
(3)
Fix
the
tone
arm
in
place
with
the
lock
lever
of
the
arm
rest.
(4)
Place
the
set
on
a
suitable
bench
with
the
bottom
base
upward.
(Fig.
1)
REMOVE
THE
CABINET
(1)
Remove
with
a
Phillips-head
screwdriver
the
eight
screws
which
hold
the
bottom
base.
(Fig.
2).
(2)
Remove
the
two
screws
which
hold
the
cord
mounting
plate
of
the
cabinet
(Fig.
3).
(3)
When
the
six
screws
which
hold
the
cabinet
are
removed,
the
cabinet
and
panel
board
can
be
lifted
off.
(Fig.
4).
REMOVE
THE
MOTOR
MOUNTING
PLATE.
Pull
the
speed-change
lever
out,
remove
two
red
screws
which
fasten
the
motor
and
remove
the
four
screws
a
shown
in
Fig.
5.
REMOVE
THE
SUB-CHASSIS
FROM
THE
UNIT.
(1)
Remove
the
arm
support.
(2)
Pull
out
the
speed
change
lever.
(3)
Remove
the
four
red
screws.
(4)
Turn
the
set
over
and
remove
nuts
b
shown
in
Fig.
5.
(5)
Remove
the
shield
case.
(6)
Disconnect
from
the
lug
terminal
plate
the
five
leads
coming
from
the
tone
arm.
(7)
Remove
the
terminal
angle
B
from
the
panel
board.
(8)
Turn
the
drive
gear
180°
so
that
the
return
plate
moves
over
the
nut
and
remove
the
arm
rest
fixing
nut.
And
pull
out
the
arm
rest.
(9)
Loosen
the
screw
of
the
tone
arm
fixing
plate
boss
and
remove
the
tone
arm
fixing
plate.
(10)
Remove
the
tone
arm
fixing
nut
and
remove
the
tone
arm.
(11)
Disconnect
the
release
wire
from
the
lifter
base
(Fig.
6).
(12)
Remove
the
reject
spring
spacer
(Fig.
7)
(13)
Remove
the
suspension
spring
and
cushion
rubber.
(14)
Hold
the
turntable
shaft
and
lift,
and
remove
the
sub-chassis.
@2
O
8
threaded
holes
