6.

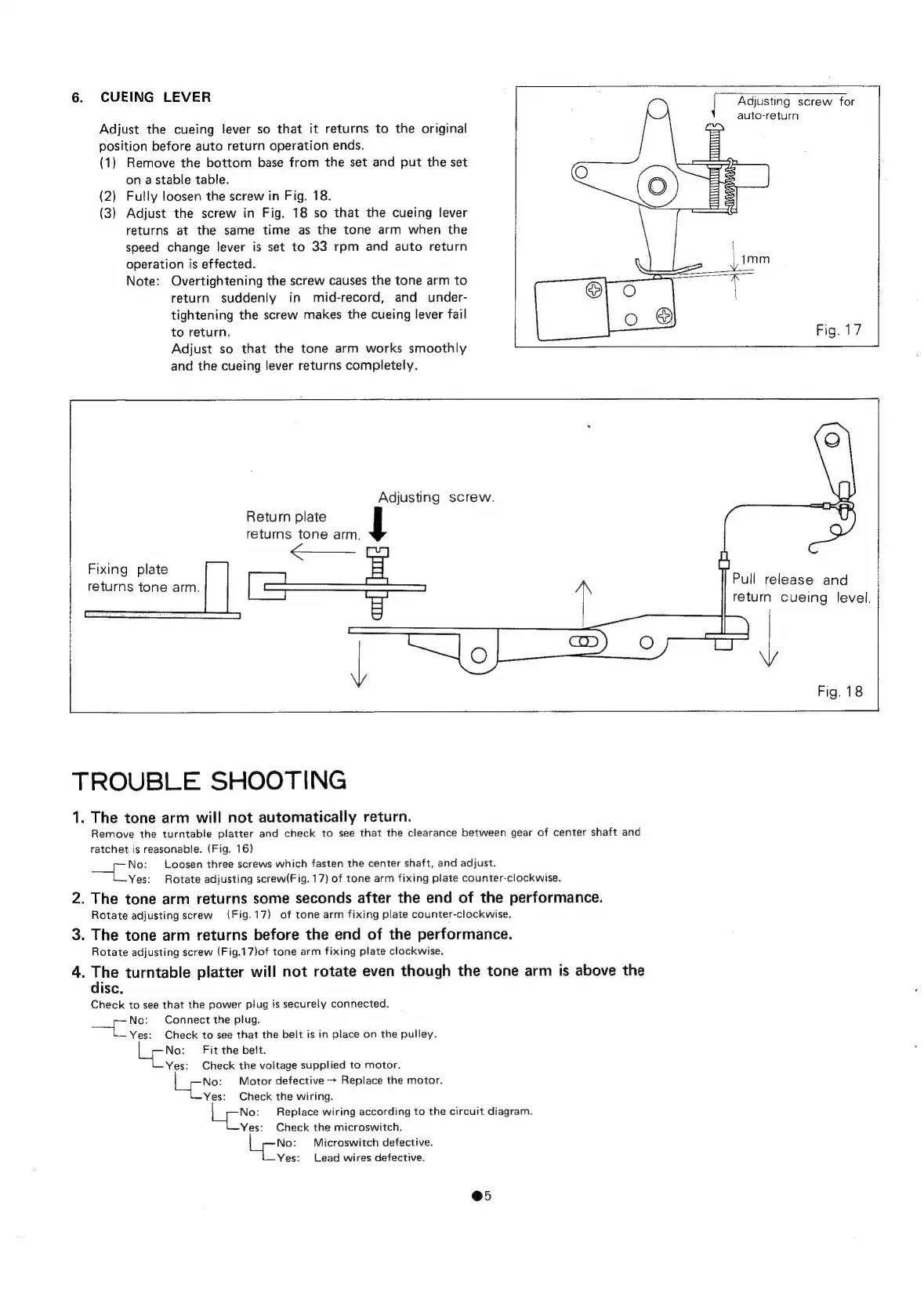

CUEING LEVER
Adjust the cueing lever so that it returns to the original
position before auto return operation ends.
(1) Remove the bottom base from the set and put the set
on a stable table.
(2) Fully loosen the screw in Fig. 18.
(3) Adjust the screw in Fig. 18 so that the cueing lever
returns at the same time as the tone arm when the
speed change lever is set to 33 rpm and auto return
operation is effected.
Note: Overtightening the screw causes the tone arm to
return suddenly in mid-record, and under-
tightening the screw makes the cueing lever fail
to return.
Adjusting screw for
auto-return
Fig. 17
Adjust so that the tone arm works smoothly
and the cueing lever returns completely.
Adjusting screw.
Return plate
returns tone arm.
Fixing plate
returns tone arm.
TROUBLE SHOOTING
1
. The tone arm will not automatically return.
Remove the turntable platter and check to see that the clearance between gear of center shaft and
ratchet. is reasonable. (Fig. 16)
No: Loosen three screws which fasten the center shaft, and adjust.
Yes: Rotate adjusting screw(Fig. 17) of tone arm fixing plate counter-clockwise.
2. The tone arm returns some seconds after the end of the performance.
Rotate adjusting screw (Fig.17) of tone arm fixing plate counter-clockwise.
3. The tone arm returns before the end of the performance.
Rotate adjusting screw (Fig.17)of tone arm fixing plate clockwise.
4. The turntable platter will not rotate even though the tone arm is above the
disc.
Check to see that the power plug is securely connected.
No: Connect the plug.
Yes: Check to see that the belt is in place on the pulley.
No: Fit the belt.
Yes: Check the voltage supplied to motor.
No: Motor defective ~ Replace the motor.
Yes: Check the wiring.
No: Replace wiring according to the circuit diagram.
Yes: Check the microswitch.
No: Microswitch defective.
Yes: Lead wires defective.
@5
Pull release and
return cueing level.
Fig. 18
