3 Preparation of Measurement
It prepares and checks, before starting measurement

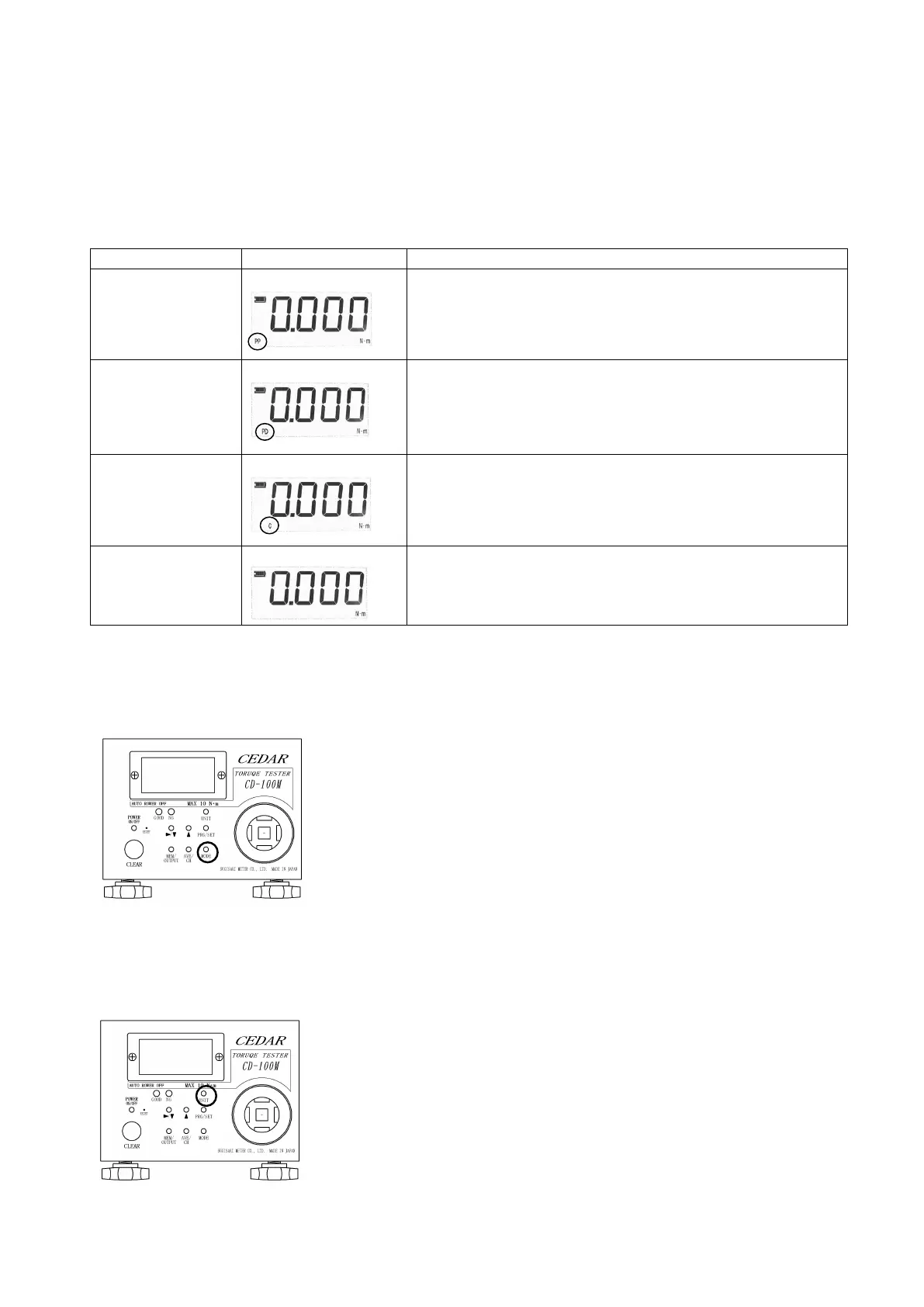

3.1 Measurement Mode
About the measurement mode which can be measured from this model (measuring method)
3.1.1 Kind in Measurement Mode
The maximum under measurement is always displayed.
Load holds more than from 20digits*.
Usually, this mode is used.
A value when a load torque value changes
from a rise to descent is displayed. It carries out,
once it pushes a clear button, when applying re-load.
Load operates more than from 20digits*.
It is suitable for measurement of a torque wrench etc.
The data output of the load torque value is carried out
every about 1 / 180 seconds.
(A change whole 1 / 12 seconds is possible)
It is suitable for torque curve creation
or a screw bundle examination.
It is mainly used at the time of calibration etc.
The value of the load torque concerning
a detector is displayed as it is.
(There is no display.)
* digit -- CD-100M - 10digit is 0.10 N･m(1.0kgf-cm/1.0lbf-in)
CD-10M - 10digit is 0.010 N･m(0.10kgf-cm/0.10lbf-in)
3.1.2 A setup and change in measurement mode
Button to be used -- "MODE"
Pushing the "MODE" button is continued for about 1 second.
( It is a setting mode pushed long
so that the measurement should not change while measuring it. )
The measurement mode display changes.
The measurement mode to be used is chosen.
The display changes sequentially if it keeps pushing.
Truck (with no display) -> Peak hold (PP) -> peak down( PD) -> Real-time output (C) -> Truck
3.1.3 Setup and Change of Measurement Unit
Button to be used -- "UNIT"
Pushing the "UNIT" button is continued for about 1 second.
(It is a setting mode pushed long
so that the measurement should not change while measuring it.)
The measurement unit display changes.
A push on a button changes a display.
The measurement unit to be used is chosen.
The display changes sequentially if it keeps pushing.
