operations are carried out at this time, it will check whether it blinks
with and eliminates.
When eliminating, the CLEAR key is pressed during blink.
When stopping elimination, it is left as it is.
It returns to a torque display and data are not eliminated.
* When memory data are eliminated, the data saved after that slide to
the data number.

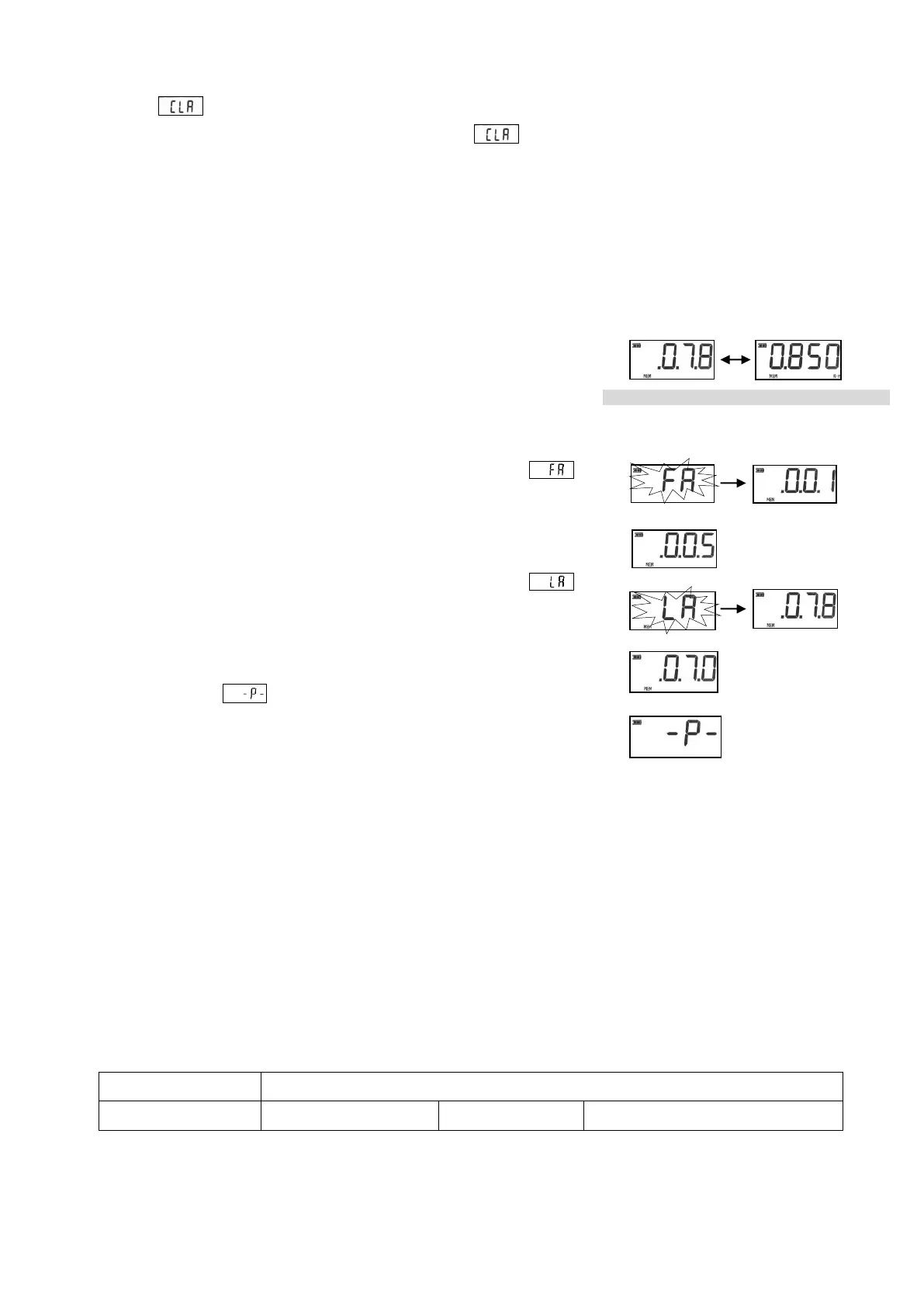

6.1.3 Output of Saved Measurement Data
1. A push on the MEM/OUTPUT key displays by turns the data
number and measured value which were saved at the end.
2. While displaying a data number and measured value, press the
MEM/OUTPUT key once again.
(It becomes data output preparation)
3. Since a data number is displayed after displaying it as
(first address), choose the data number of the first data to output by
▲ or ▼/▶.
4. Since a data number is displayed after displaying it as
(last address), choose the data number of the data of the last to output
by ▲ or ▼/▶.
The MEM/OUTPUT key will be pressed if selection finishes.
5.Display it as and output.
After an output finishes, it returns to a measurement state.
* Press the CLEAR key for about 1 second to stop an output during
an output.
6.2 Output data
Output data are outputted in the ASCII format with a USB cable.
In addition, in order to take in data, driver software needs to be installed separately.
About installation of driver software
Homepage http: of our company http://www.cedar.co.jp/ or
FTDI Chips Virtual COM Port Drivers http://www.ftdichip.com/Drivers/VCP.htm
It checks.
Data Format
Data bit length
start bit 1 + data bit 8 + stop bit 2 + no parity
Baud rate
19200bps
Connector form
USB（B type）
The format of data has the following two kinds.
When the data numbers 005-070 are outputted
Push MEM/OUTPUT
Push MEM/OUTPUT
Push ▲
Push MEM/OUTPUT
Push ▼/▶
Push MEM/Output
The first data number to output
The last data number to output
