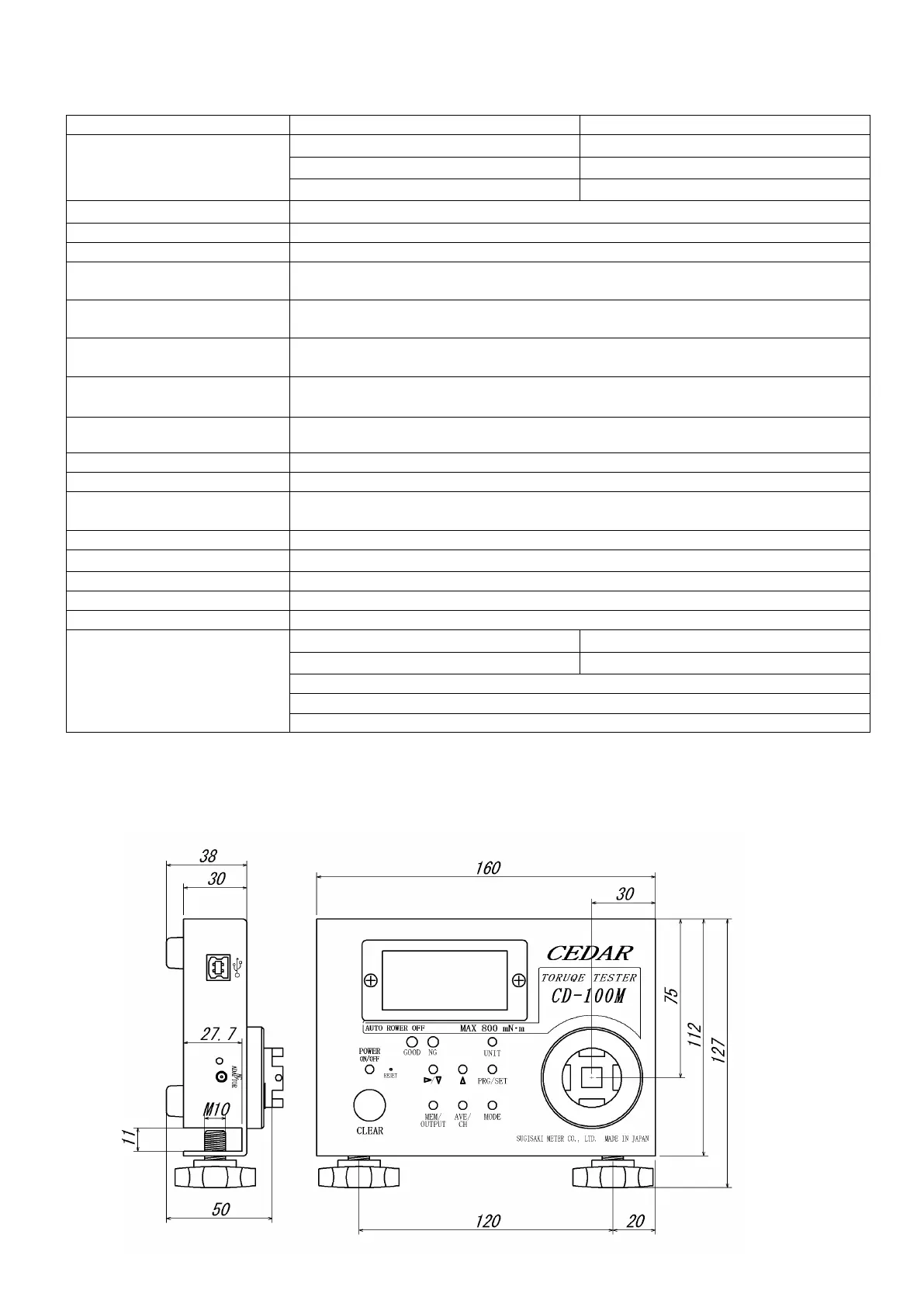

2.2 Specification
Model name
CD-100M
CD-10M
Measuring range
0.10～10 N・m
0.010～1 N・m
1.0～100 kgf・cm
0.10～10 kgf・cm
1.0～90 lbf・in
0.10～9 lbf・in
Accuracy
±0.5％ (199 or less digit±1digit)
Display
The 3.5 figures digital display of LCD
The measurement direction
CW-CCW (right and left)
Measurement Mode
P-P (peak to peak) / T-R (track) / P-D (peak-down) /
C (Real-time Output)
High and low limits judging
function
High and low value is measurement within the limits, and can be set up.
The setting numerical value of five sets is saved.
Results judgment
It can perform results judgment within the setting.(in P-P mode)
It confirms with lamp lighting or a buzzer.
The Maximum, the minimum,
and the average value display
It displays the maximum, the minimum, average value,
（As opposed to a maximum of 800 data）
Real-time Output
Load torque value is outputted every about1/ 180 second.
(A change whole 1 / 12 seconds is possible)
Data memory
Measured value - 800 data
Data output
ASCII format (baud rate 19200)
Automatic clear time
In 0.1 - 3.0 seconds (0.5 seconds interval) an indication is automatically given zero.
It is a manual zero clearance by 0.0 second setup.
One-touch zero
By pushing a clear button, zero adjustment can be performed by one-touch.
Battery
Ni-cd battery 1.2V×5sells (700mAh) /300 times or more charge life
Auto power OFF
Power-supply OFF is carried out after the neglect during 10 minutes.
Charge time / use time
About 3 hours / About 12 hours use consecutive at full charge time
Socket size
□20mm / □9.5mm
Accessories
(One piece each)
Measurement joint SJ-50、SJ-10K
Measurement joint SJ-10
（4 bits HEX opposite side 6mm）
（4 bits HEX opposite side 5mm）
An AC/DC adaptor
Exclusive case
Result of calibration , Certification on calibration , Traceability system figure
* Do not use it for measurement of an impact tool
*Measurement while charging cannot be performed. A plug is pulled out at the time of measurement.
2.3 Outside dimension
