Preparation and operation
CF•13.3 B / CF•13.3 B-L
ENGLISH

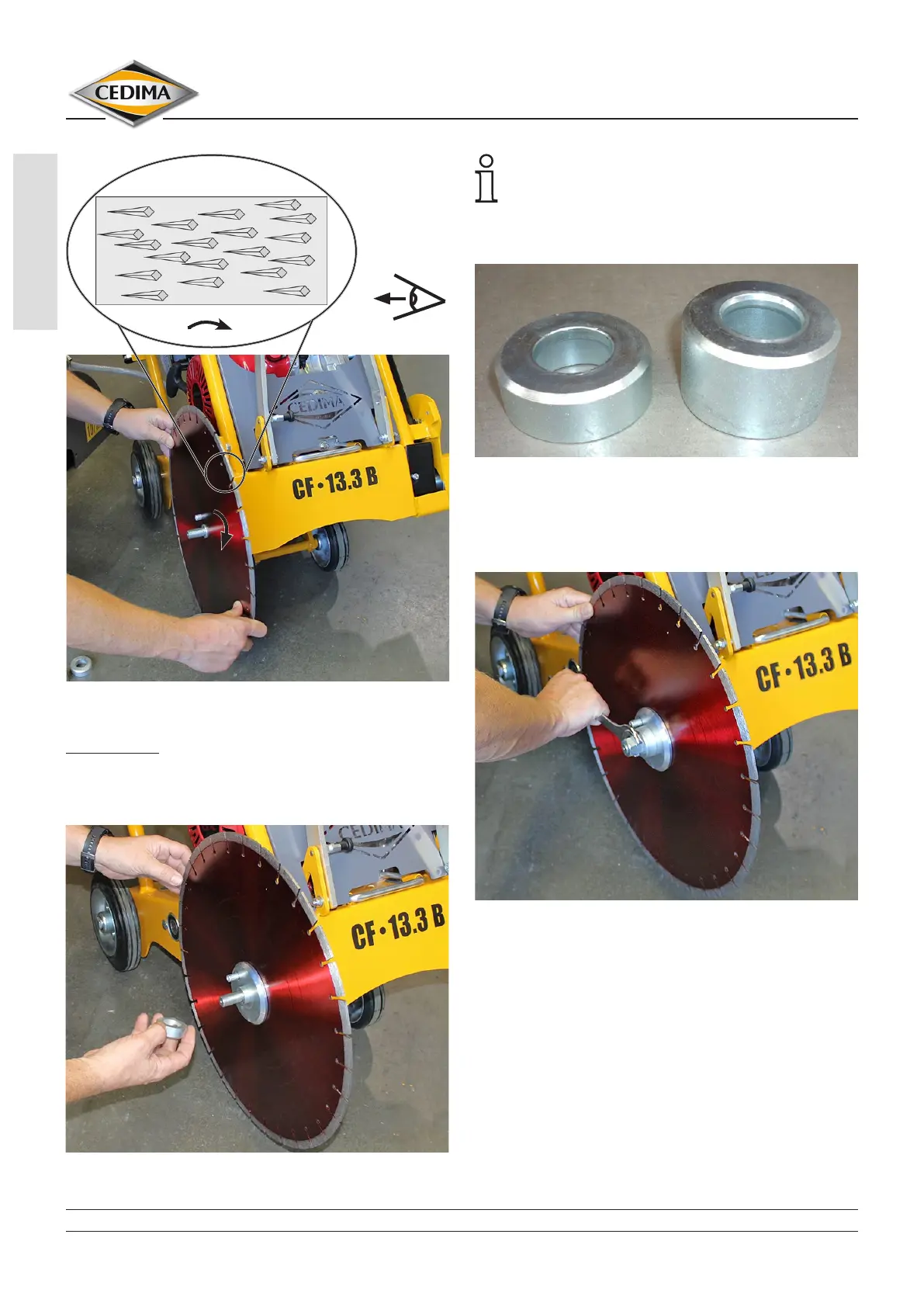

Cutting shaft clamping rings Figure 4.22
ATTENTION
The direction of rotation of the cutting shaft must match
the direction of rotation of the saw blade!
Mount the right or left clamping ring according to the
saw blade mounting width (gure 4.22, section 4.6.4)!
Diamond saw blade with correct direction of rotation on the right
side of the cutting shaft, driver pin plugged in Figure 4.20
Remount the saw blade pressure ange and clamping ring
Figure 4.21
Diamond saw blade with left-hand thread cutting shaft nut on the
right side of the cutting shaft Figure 4.23
