Preparation and operation
CF•13.3 B / CF•13.3 B-L
ENGLISH

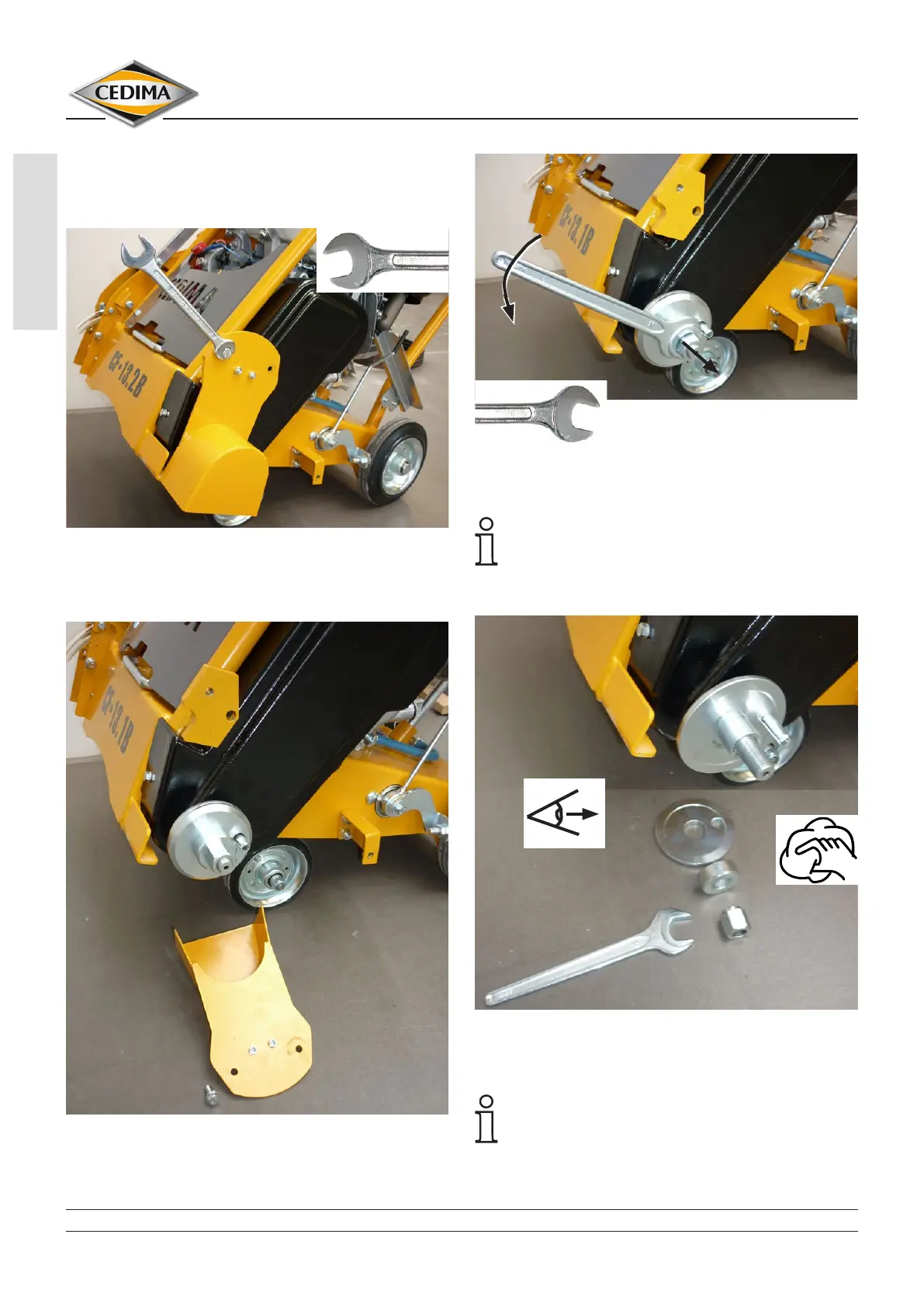

4.6.4 Changing the cutting side as here
described with seperated blade guard
13
Dismount cutting shaft guard (left) Figure 4.27
Cutting shaft guard, dismounted Figure 4.28
Right-hand thread on the left side of the cutting shaft!
Loosening the right-hand thread cutting shaft nut Figure 4.29
24
Cutting shaft nut, clamping ring, saw blade pressure ange dismount-
ed Figure 4.30
Dismount any mounted saw blade
(section 4.6.3)!
