Preparation and operation
CF•13.3 B / CF•13.3 B-L
ENGLISH

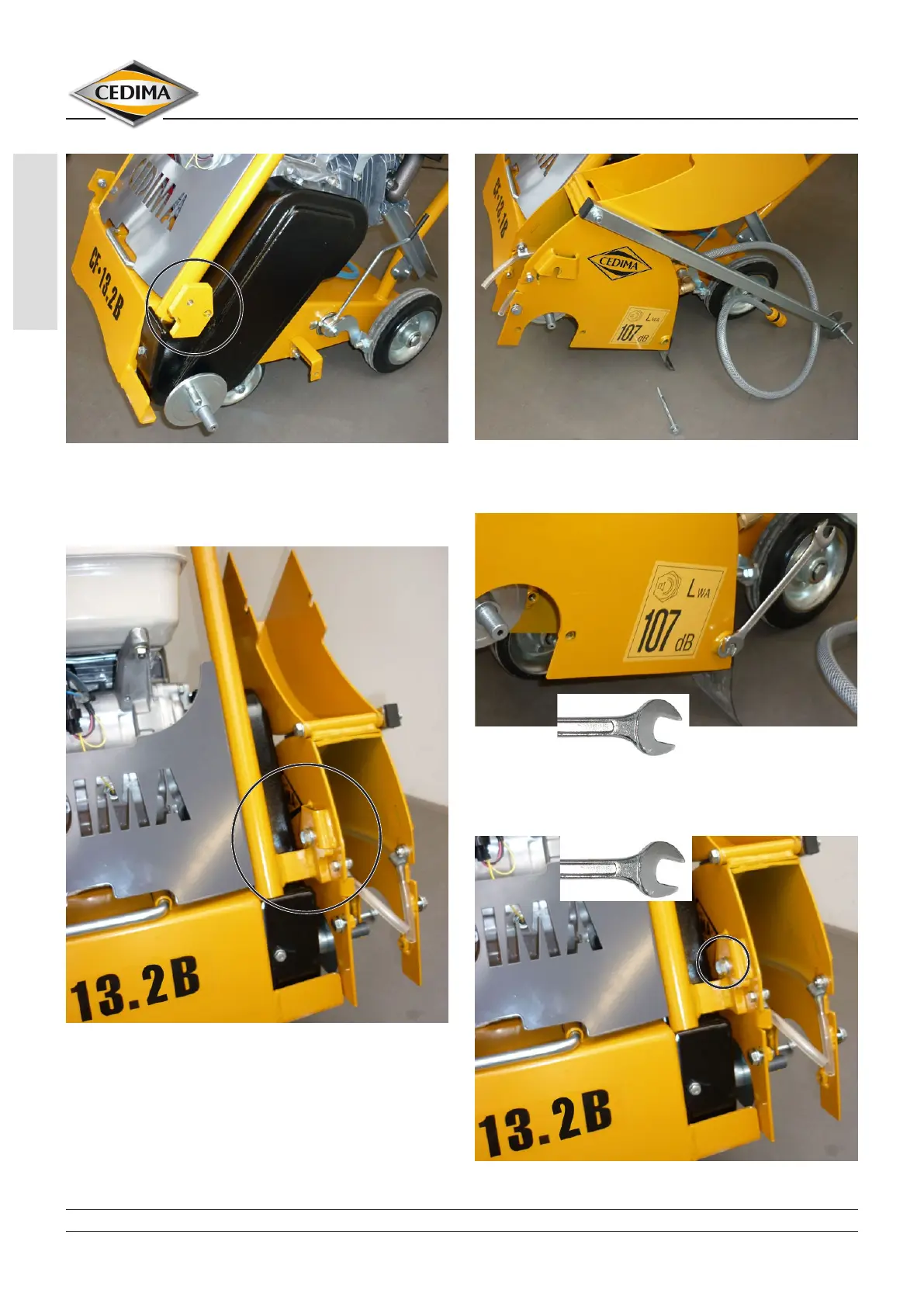

Left side of cutting shaft, saw blade guard holder Figure 4.37
Left side of cutting shaft, saw blade guard
plugged to saw blade guard holder Figure 4.38
13
13
Screw with washer provided for saw blade guard mounting
Figure 4.39
Fastening saw blade guard with screw (washer) Figure 4.40
Tightening screw at the saw blade guard holder Figure 4.41
