Preparation and operation
CF•13.3 B / CF•13.3 B-L
ENGLISH

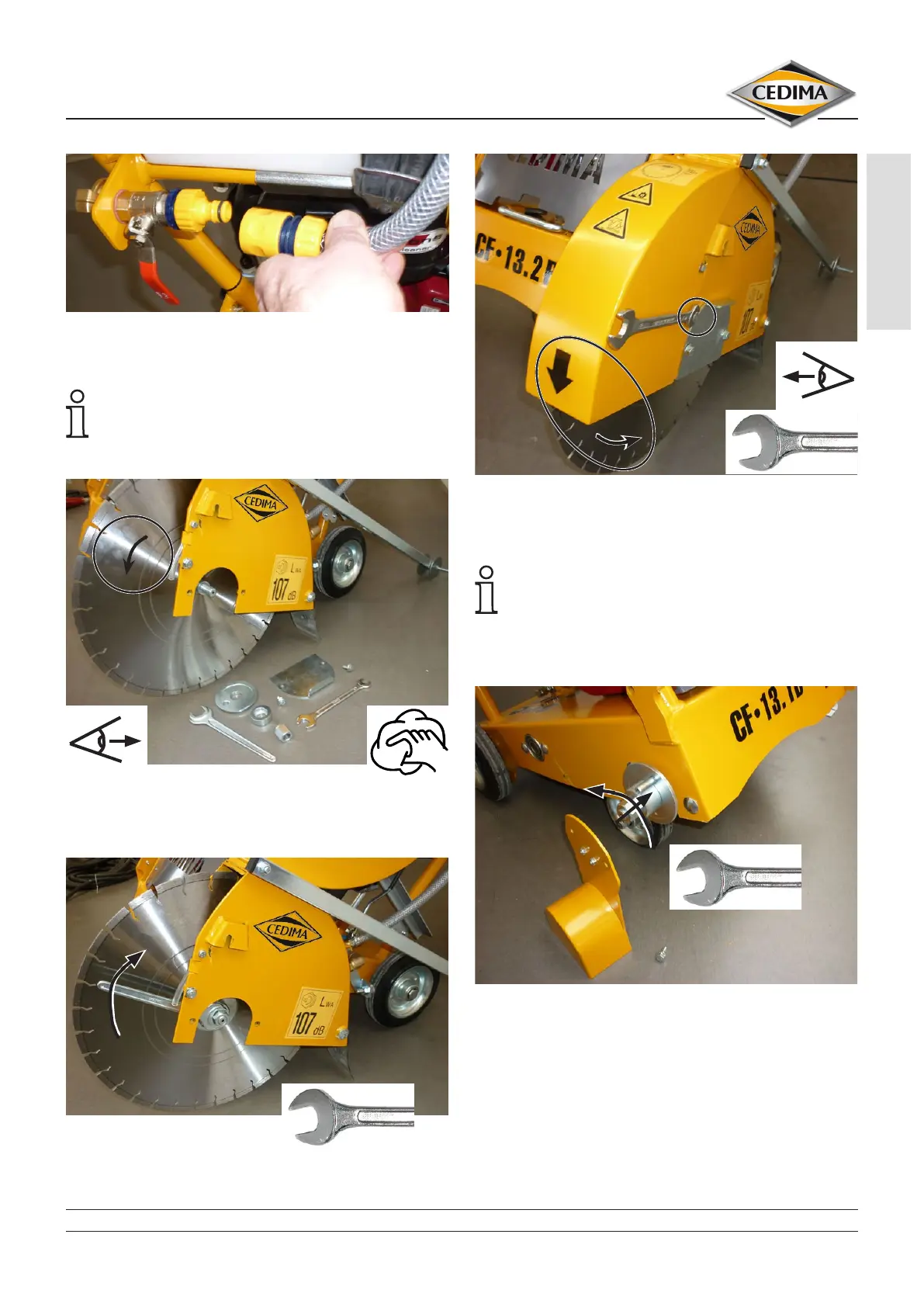

Mount the saw blade(s) according to section 4.6.3 and
gures 4.43 to 4.45!
Diamond saw blade with correct direction of rotation on the left side
of the cutting shaft, driver pin plugged in Figure 4.43
Coupling cooling water connection to the saw blade guard (see sec-
tion 4.9) Figure 4.42
24
Clamping diamond saw blade with right-hand thread cutting shaft
nut on the left side of the cutting shaft Figure 4.44
Saw blade guard hood and protective plate at saw blade guard
closed, direction of rotation and cutting Figure 4.45
13
Protect the unused side of the cutting shaft with the
free clamping ring (gure 4.46)!
Clamping ring with left-hand thread cutting shaft nut mounted on
the right side of the cutting shaft,
cutting shaft guard provided for mounting Figure 4.46
