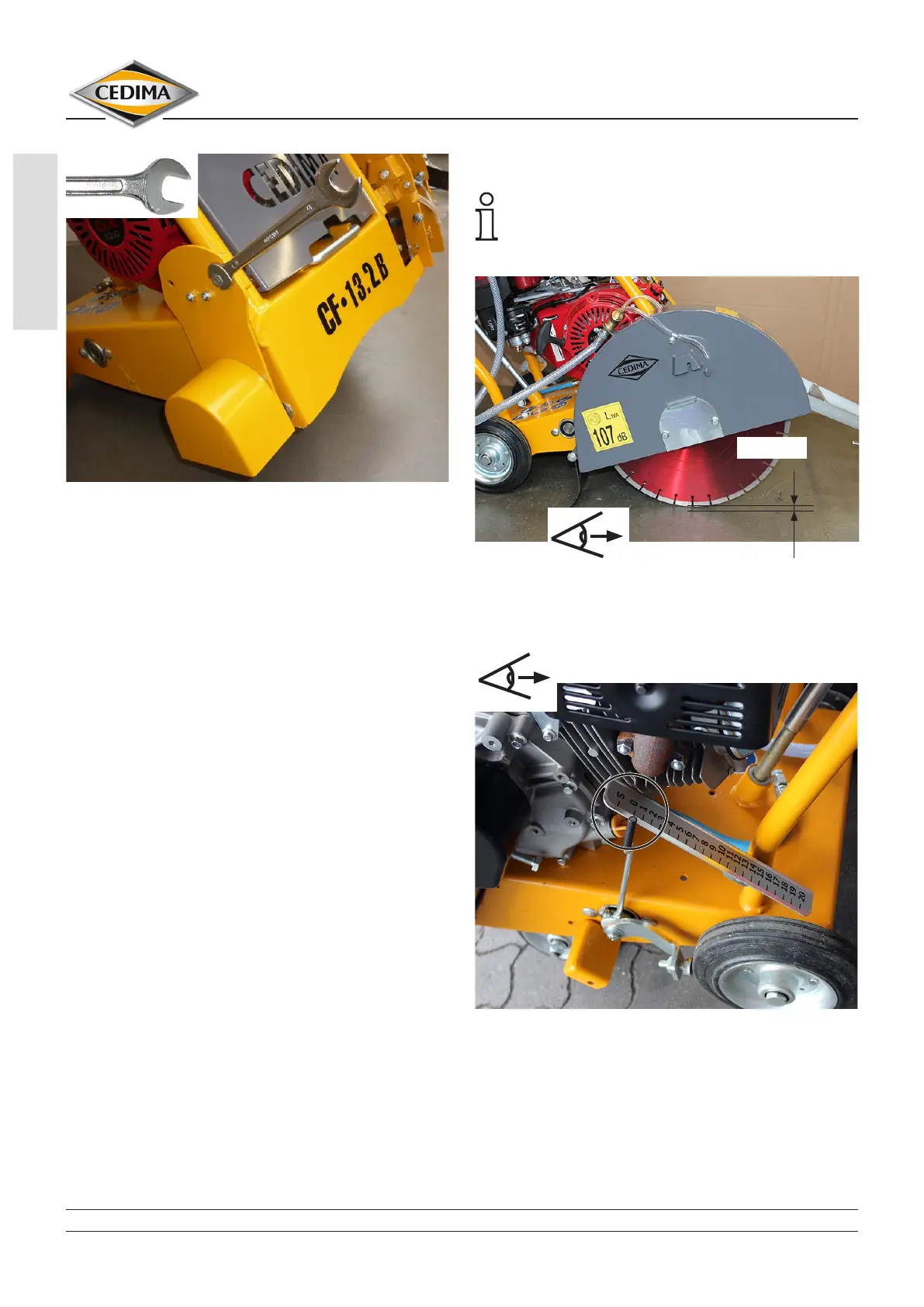

Cutting shaft guard right, mounted Figure 4.47
4.7 Adjusting the cutting depth indication
The cutting depth indication can be adjusted
exactly to the diameter of the diamond saw blade!
Scratching with the diamond saw blade Figure 4.48
0 mm
STOP!
Setting the pointer of the cutting depth indication to 0,
tightening clamping screw and lock nut Figure 4.49
10
0 mm
