Maintenance and care
CF•13.3 B / CF•13.3 B-L
ENGLISH

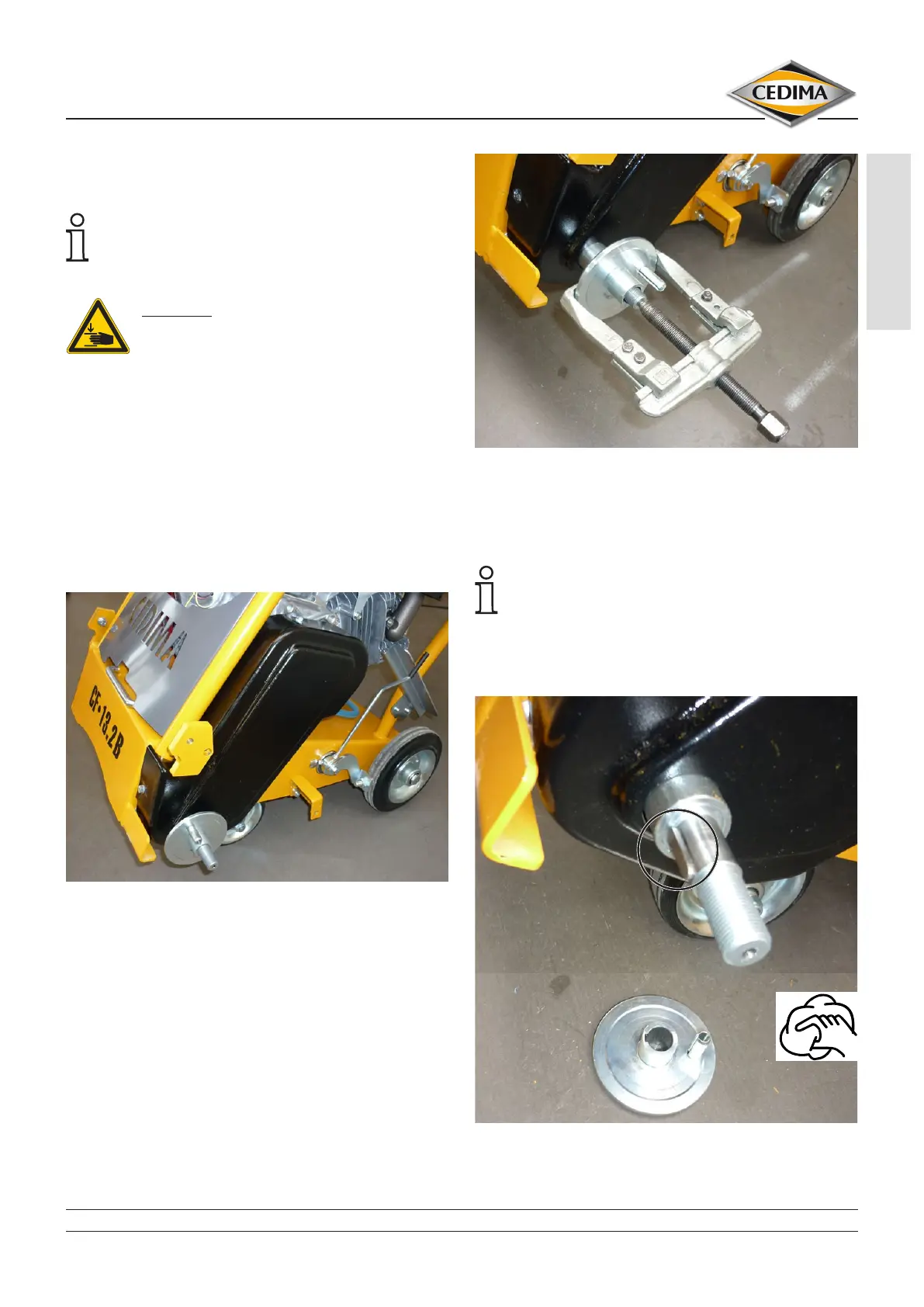

6.7.2 Replacing the V-ribbed belt
as here demonstrated on the CF•13.2 B
The V-ribbed belt should or must be replaced when
another tensioning is not possible any more and/or
the V-ribbed belt is damaged (torn, frayed,
porous,...)!
DANGER
Risk of pinching or crushing when
replacing the V-ribbed belt!
Careful with hands and ngers!
1. Lift out the cutting shaft (saw blade),
2. Dismount the cutting shaft guard or the saw blade guard
and the saw blade mounted on the left (section 4.6.4),
3. Dismount the left cutting shaft nut with the clamping
ring and if applicable the mounted saw blade pressure
ange (gures 4.30, 4.31 and 6.4),
4. Left cutting shaft side, saw blade guard and if applicable
saw blade, cutting shaft nut, clamping ring, saw blade
pressure ange or cutting shaft guard dismounted
Figure 6.4
Pay attention to the parallel key in the cutting shaft!
Do not use force!
5. Pull saw blade holder ange o the left side of the
cutting shaft, parallel key
Figure 6.5
6. Saw blade holder ange pulled o the left side of the
cutting shaft, parallel key
Figure 6.6
