Maintenance and care
CF•13.3 B / CF•13.3 B-L
ENGLISH
Press o the tight tting sleeve o the cutting shaft
using the taper clamping bush (gures 6.10 and 6.11)!
Do not use force!
10

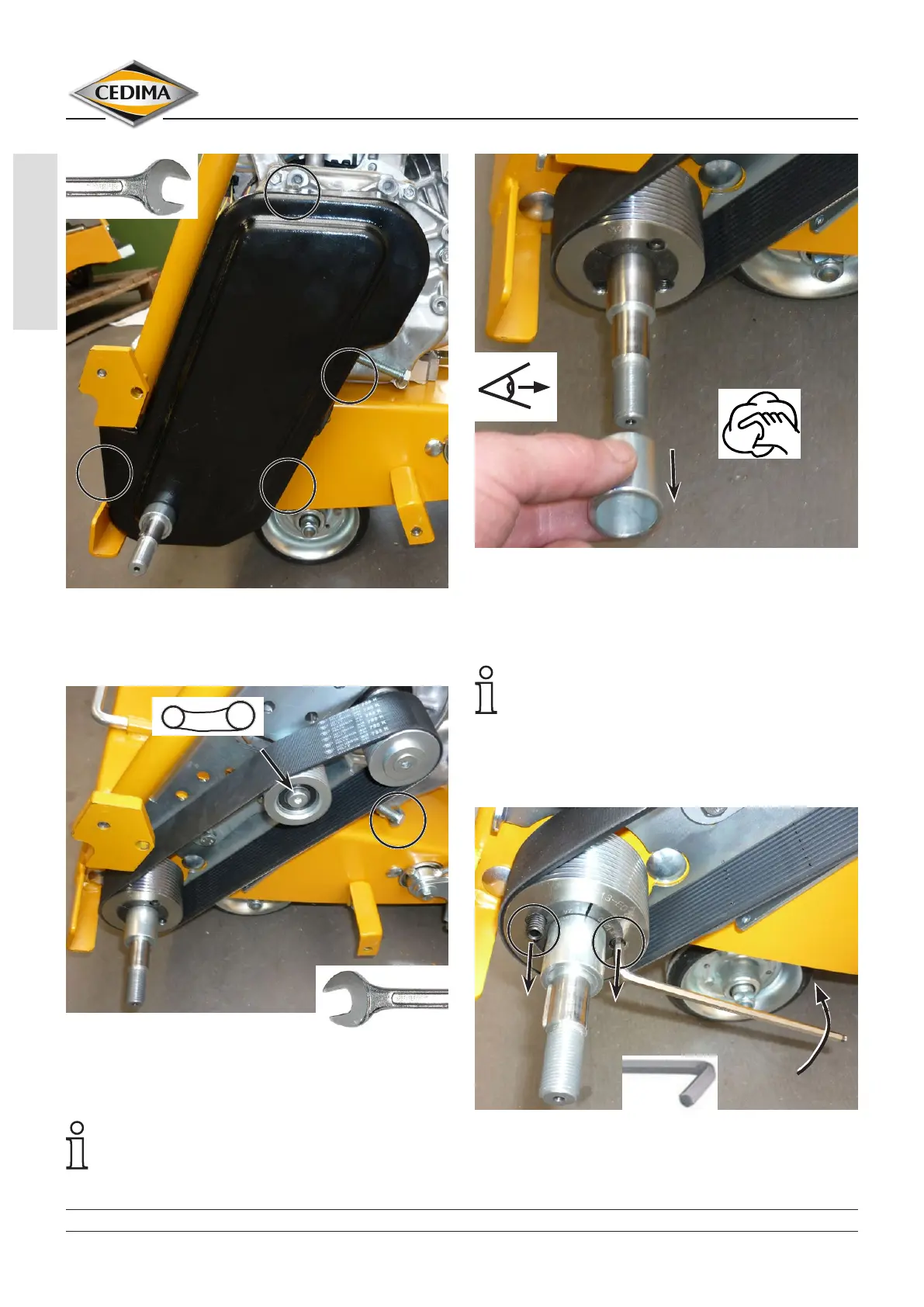

7. V-ribbed belt guard cover mounted with screws
Figure 6.7
8. V-ribbed belt guard cover dismounted. Release V-ribbed
belt
Figure 6.8
9. Sleeve pulled o the left side of the cutting shaft
Figure 6.9
10. Unscrewing the studs
Figure 6.10
5
Release the V-ribbed belt according to section 6.7.1!
