Maintenance and care
CF•13.3 B / CF•13.3 B-L
ENGLISH

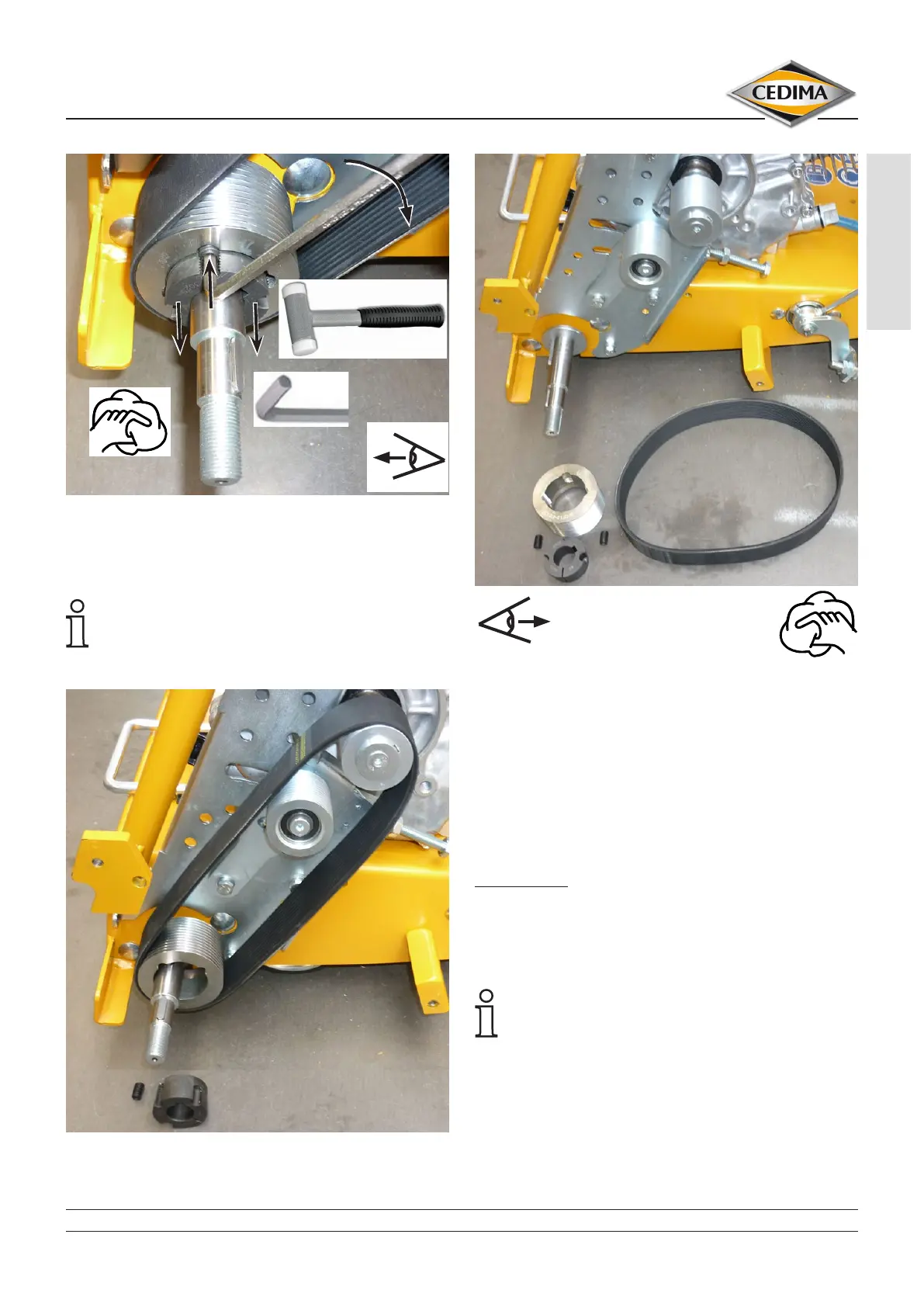

14. Put the new V-ribbed belt according to the supplier's in-
structions (if applicable, direction of rotation, ...) onto the
engine grooved pulley and plug it onto the cutting shaft
with the cutting shaft grooved pulley (gure 6.12).
ATTENTION
Do not use sharp or pointed objects to pull on the
V-ribbed belt!
Do not damage the V-ribbed belt!
The V-ribbed belt must lie completely on the grooved
pulleys!
Do not tilt the grooved pulley!
Do not use force!
13. V-ribbed belt with cutting shaft grooved pulley
removed
Figure 6.13
11. Screw stud into the third drilled hole and press the
taper clamping bush with the stud out of the grooved
pulley
Figure 6.11
If the taper clamping bush is stuck, loosen it by hitting
the plastic hammer on the front side of the grooved
pulley!
Do not use force!
12. Taper clamping bush removed from grooved pulley of
cutting shaft
Figure 6.12
