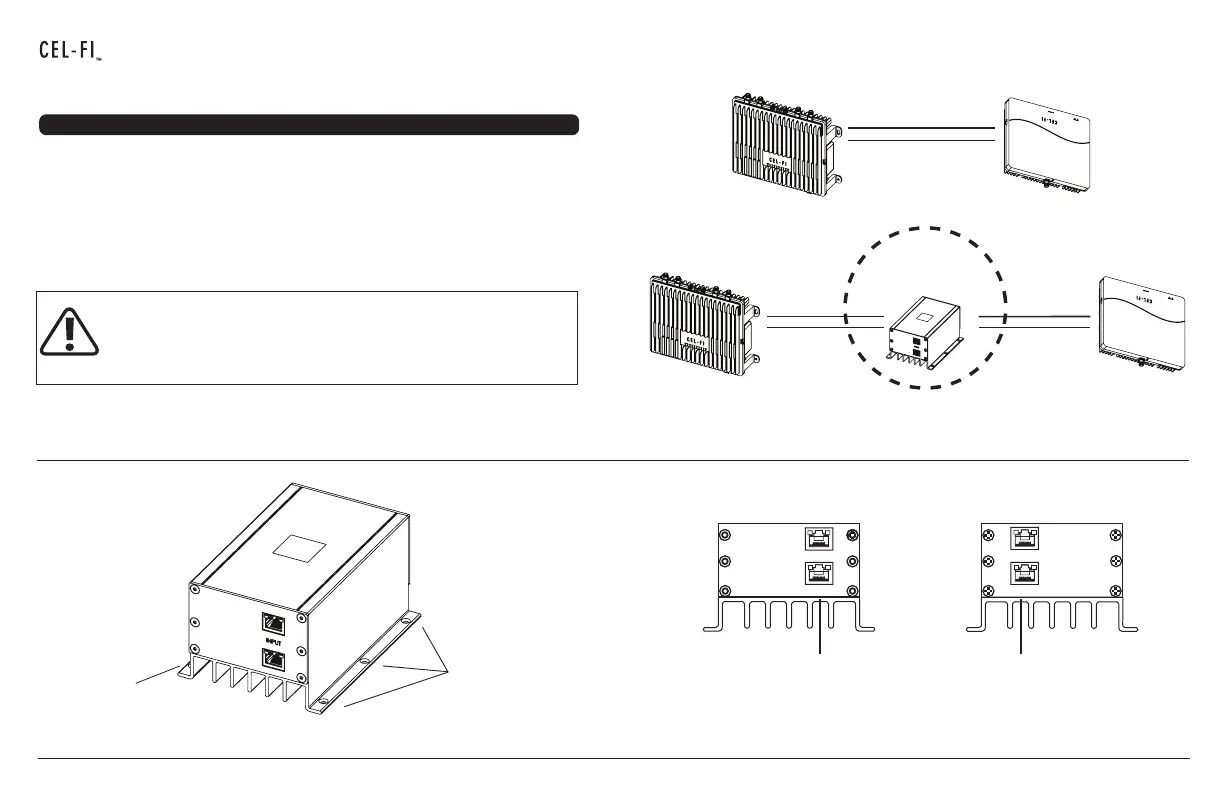

CEL-FI QUATRA 4000 - Overview of Cel-Fi QUATRA Range Extender; Product Functionality and Design; Compatibility and Usage Limitations

The Cel-Fi QUATRA 4000 Range Extender is a Power over Ethernet
(PoE) device that extends the maximum distance between the Cel-Fi
QUATRA Network Unit and the Coverage Unit interconnect via cable
lengths up to 200 meters. Plug and play installation.
Cel-Fi QUATRA
NETWORK UNIT
Cel-Fi QUATRA
COVERAGE UNIT
Cat 5e cable
100 meter max
Input from
Cel-Fi QUATRA
NETWORK UNIT
INPUT
Cel-Fi QUATRA
NETWORK UNIT
WITH
Cel-Fi QUATRA
RANGE EXTENDER
Cel-Fi QUATRA
COVERAGE UNIT
Cat 5e cable
100 meter max
Cat 5e cable
100 meter max
QUATRA 4000 RANGE EXTENDER
OVERVIEW
The Cel-Fi QUATRA Range Extender is designed solely for use with the
Cel-Fi QUATRA, and will not work with Cel-Fi QUATRA variants or
devices. Other extender products will not work with Cel-Fi QUATRA.
Only one (1) Extender may be used per Cel-Fi QUATRA Coverage Unit.
Mounting Holes
Cooling Fins
Output to
Cel-Fi QUATRA
COVERAGE UNIT
OUTPUT
Cel-Fi QUATRA 4000 Range Extender CEL-FI QUATRA ACCESSORY
