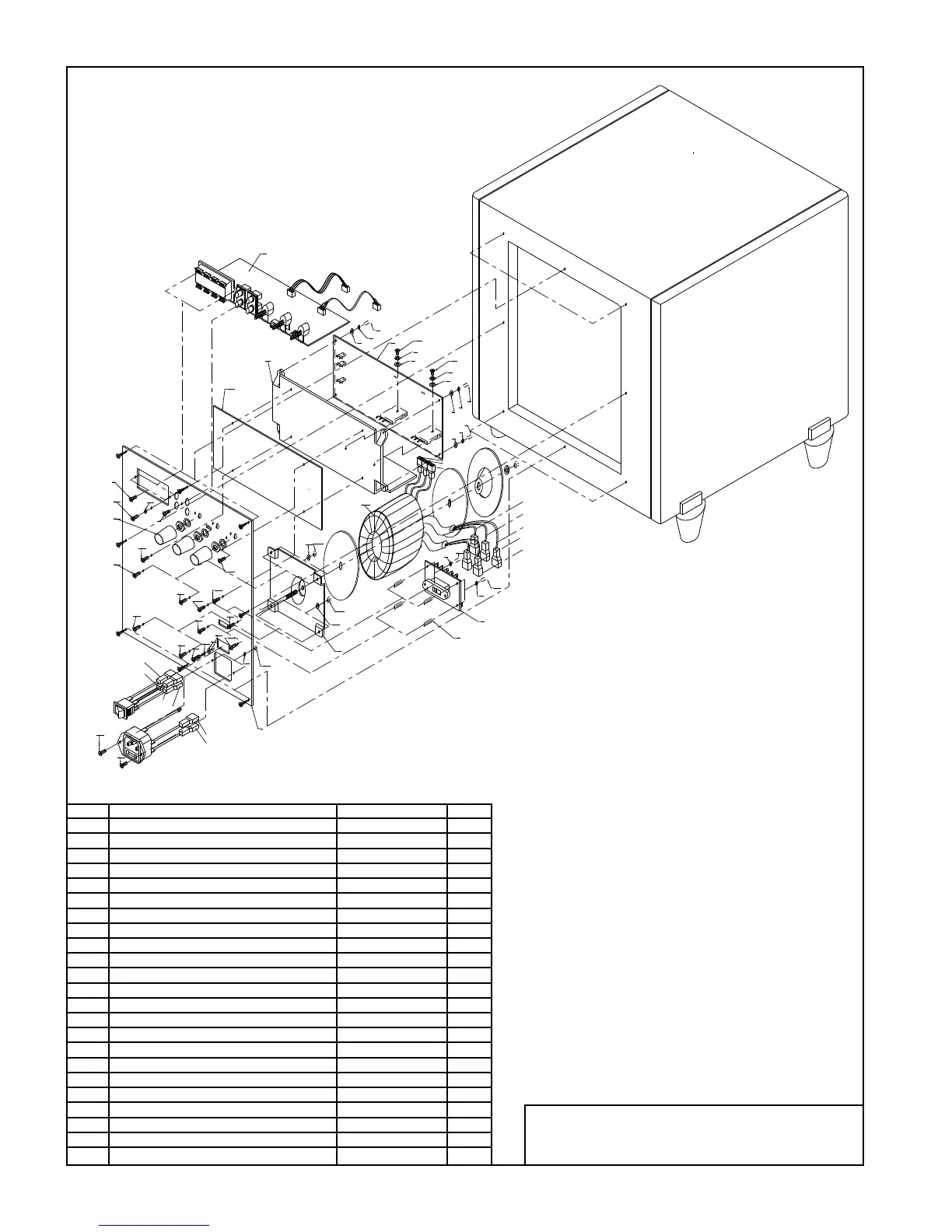

Celestion S8 - Exploded Views; Exploded View Diagrams

16
REF DESCRIPTION PARTS NO. QTY
1 REAR PANEL 1403-6370-0 1
2 TRANSFORMER BRACKET 1402-3070-0 1
3 BRASS TUBE 6*M3*12 4135-0271-0 4
4 VOLTAGE PCB 1723-780A-0000 1
5 PRE AMP PCB 1723-779A-0000 1
6 POWER AMP PCB 1723-779A-0000 1
7 T3*8MM SELF TAPPING 2954-3008-3000 7
8 SPRING WASHER M3*0.9*5.5MM 2607-3009-0550 12
9 METAL WASHER M3*0.5*8MM 2600-3005-0800 6
10 M3*12MM B-TITE (BLK.Zn) 2954-3012-3000 2
11 HEATSINK 5400-3311-0 1
12 INSULATION PCB-3 1725-327A-0000 1
13 INT TEETH WASHER M3*0.5*6.4MM 2606-3005-0643 1
14 B-TITE 3*10MM (BLK.Zn) 2954-3010-3000 4
15 VOL/FREQ KNOB 2436-6501-1 3
16 SCREW M4*10 (BLK) 2904-4010-3000 5
17 SCREW M3*6 BINDING (BLK) 2904-3006-3000 8
18 SCREW M3*10 (BLK) 2904-3010-3000 2
19 NUT HEX M4 2640-4030-0704 5
20 INT TOOTH WASHER M4*0.8*8.5MM 2606-4008-0853 1
21 SPRING WASHER M4*1*7MM NI 2607-4010-0704 5
22 M3 NUT 2640-3022-0540 2
23 TRANSFORMER 1806-2413-0 1
A(RED)
B(GRAY)
C(BLUE)
L(Y)
N(Y)
M(BLK)
E(BLUE)
I
F
B
K
H
A
D
J
C
E
G
D(GRAY)
M
N
L
GND
I(RED)
G(RED)
H(RED)
GND
K(GRAY)
J(GRAY)
F(GRAY)
CN2
CN1
CN1
CN2
9
8
10
9
8
7
9
8
10
9
8
18
8
18
3
4
8
7
5
7
6
8
9
11
12
23
19
19
21
21
7
14
7
15
13
17
19
21
17
16
14
16
16
14
14
17
17
8
1
18
18
2
16
16
20
22
CELESTION S8
Exploded View
