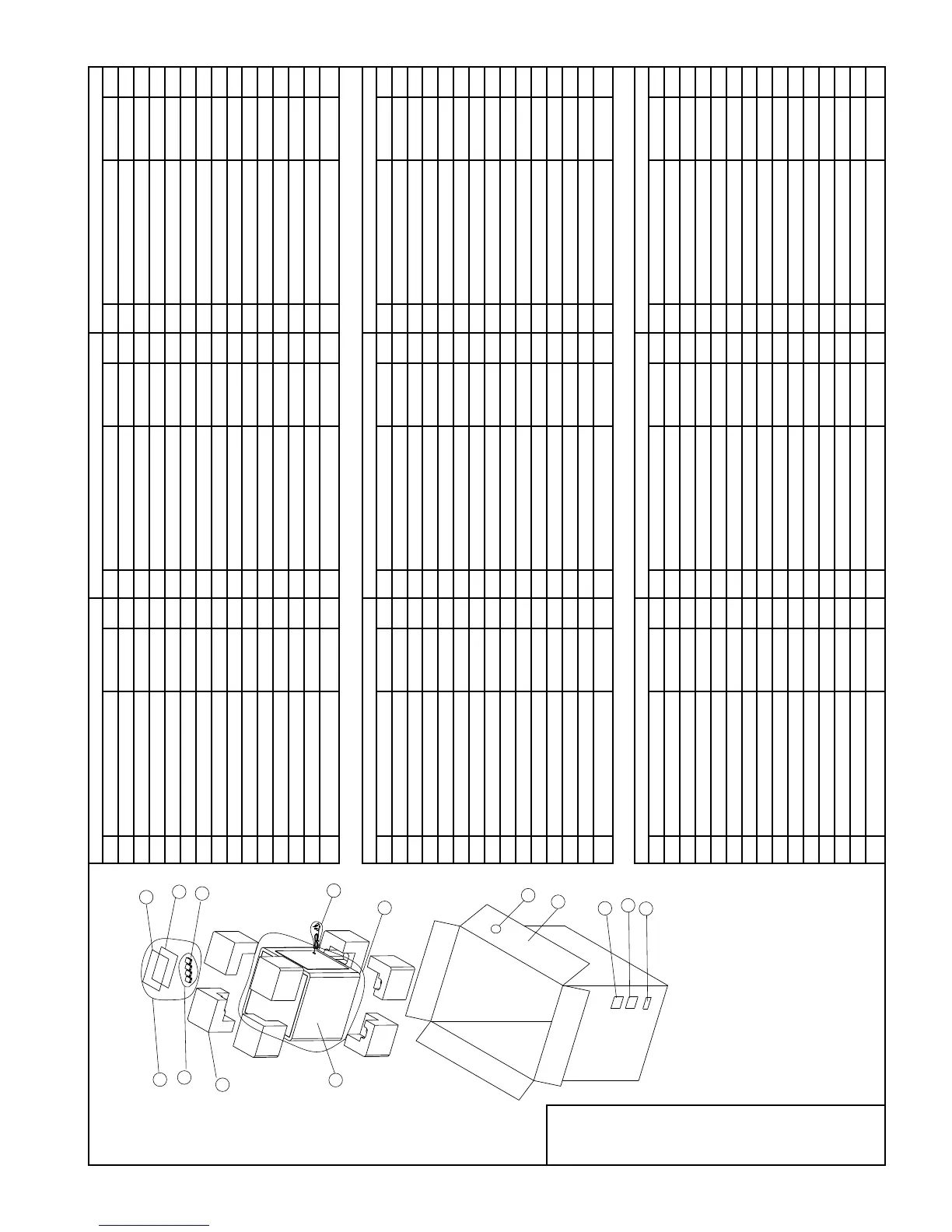

Celestion S8 - Packing Exploded View

7
10
9
8
12
6
14
3
2
13
11
5
4
1
17
FC310C-EU(S8MKII 230V CHERRY)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB CHERRY 1403-4320-0 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 CHERRY-EU 3000-6582-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC310C-UK(S8MKII 230V CHERRY)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB CHERRY 1403-4320-0 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 CHERRY-UK 3000-6584-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC310C-US(S8 110V CHERRY)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB CHERRY 1403-4320-0 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 CHERRY-US 3000-6583-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC311C-EU(S8MKII 230V BLACK)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB BLACK 1403-4320-1 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 BLACK-EU 3000-6585-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC311C-UK(S8MKII 230V BLACK)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB BLACK 1403-4320-1 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 BLACK-UK 3000-6587-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC311C-US(S8 110V BLACK)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB BLACK 1403-4320-1 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 BLACK-US 3000-6586-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC312C-EU(S8MKII 230V GRAY)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB GRAY 1403-4320-2 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 GRAY-EU 3000-6588-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC312C-UK(S8MKII 230V GRAY)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB GRAY 1403-4320-2 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 GRAY-UK 3000-6590-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
FC312C-US(S8 110V GRAY)
REF DESCRIPTION PARTS NO. QTY
1 P.FOAM FOR PSW1000/S8 1490-7343-0 4
2 CABINET FOR F-SUB GRAY 1403-4320-2 1
3 P.BAG 400*450*600 1497-4642-0 1
4 M.BOX FOR F-SUB SERIES 145A-6270-0 1
5 UPC LABEL S8 GRAY-US 3000-6589-0 1
6 P.BAG 140*140 1497-4302-0 1
7 MANUAL FOR S8 MKII 4301-5163-0 1
8 P.BAG 70*100 1497-4282-0 1
9 W.CARD MP-1 NEW VERSION 4301-6027-0 1
10 RUBBER PAD 20X20 4154-0461-0 8
11 BARCODE S/N LABEL 3000-6333-0 1
12 P.BAG 10'*14' W/ES GREEN 1497-4122-0 1
13 LABEL FOR S8MKII 3000-6616-0 1
14 LABEL FOR S8/PSW1000MKII 3000-6617-0 1
CELESTION S8
Packing Exploded View
