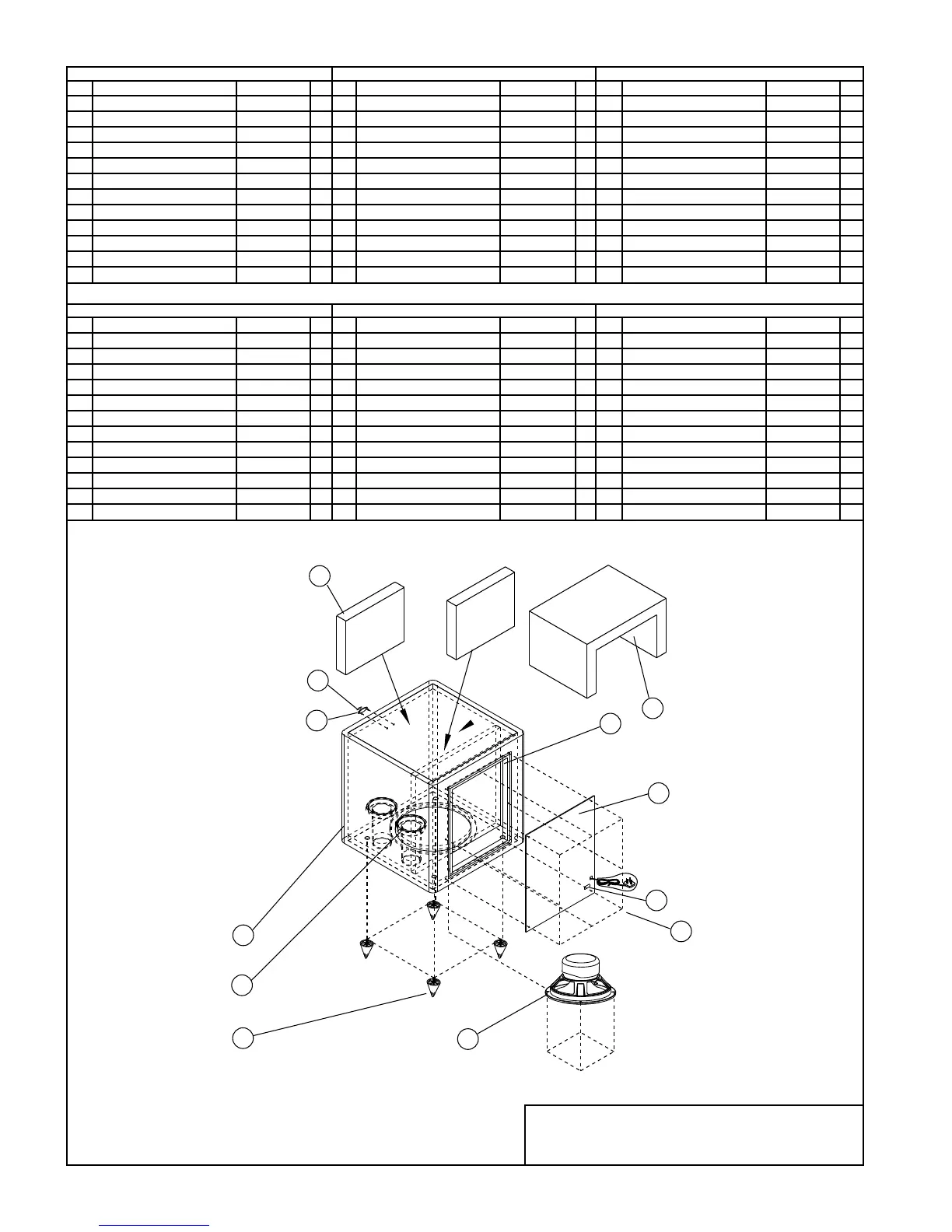

Celestion S8 - Assembly Exploded View

18
7
12
8
10
9
6
5
11
4
1
3
2
CELESTION S8
Assembly Exploded View
FC310C-US(S8MKII 110V CHERRY)
REF DESCRIPTION PARTS NO. QTY
1 CABINET FOR S8 CHERRY 1403-4320-0 1
2 PORT TUBE D74*100MM 4153-4591-1 2
3 PLASTIC FOOT FOR F-SUB 4153-9441-0 4
4 8"WOOFER F-SUB 8900-5740-0 1
5 SCREW BINDING HEAD M4*16 2913-4016-3000 12
6 AMPLIFIER 1
7 ACOUSTIC WOOL 860*320*30 4153-0351-0 1
8 ACOUSTIC WOOL 200*600*30 4153-0461-0 1
9 N.PLATE 'CELESTION' E-SE 2150-5481-0 1
10 N.PLATE CARRIER CELESTIO 2150-5491-0 1
11 BARCODE S/N LABEL SP8387 3000-6333-0 4
12 EVA GASKET 5*500 4153-3331-0 2
FC311C-US(S8MKII 110V BLACK)
REF DESCRIPTION PARTS NO. QTY
1 CABINET FOR S8 BLACK 1403-4320-1 1
2 PORT TUBE D74*100MM 4153-4591-1 2
3 PLASTIC FOOT FOR F-SUB 4153-9441-0 4
4 8"WOOFER F-SUB 8900-5740-0 1
5 SCREW BINDING HEAD M4*16 2913-4016-3000 12
6 AMPLIFIER 1
7 ACOUSTIC WOOL 860*320*30 4153-0351-0 1
8 ACOUSTIC WOOL 200*600*30 4153-0461-0 1
9 N.PLATE 'CELESTION' E-SE 2150-5481-0 1
10 N.PLATE CARRIER CELESTIO 2150-5491-0 1
11 BARCODE S/N LABEL SP8387 3000-6333-0 4
12 EVA GASKET 5*500 4153-3331-0 2
FC312C-US(S8MKII 110V GRAY)
REF DESCRIPTION PARTS NO. QTY
1 CABINET FOR S8 GRAY 1403-4320-2 1
2 PORT TUBE D74*100MM 4153-4591-1 2
3 PLASTIC FOOT FOR F-SUB 4153-9441-0 4
4 8"WOOFER F-SUB 8900-5740-0 1
5 SCREW BINDING HEAD M4*16 2913-4016-3000 12
6 AMPLIFIER 1
7 ACOUSTIC WOOL 860*320*30 4153-0351-0 1
8 ACOUSTIC WOOL 200*600*30 4153-0461-0 1
9 N.PLATE 'CELESTION' E-SE 2150-5481-0 1
10 N.PLATE CARRIER CELESTIO 2150-5491-0 1
11 BARCODE S/N LABEL SP8387 3000-6333-0 4
12 EVA GASKET 5*500 4153-3331-0 2
FC310C-EU/UK(S8MKII 230V CHERRY)
REF DESCRIPTION PARTS NO. QTY
1 CABINET FOR S8 CHERRY 1403-4320-0 1
2 PORT TUBE D74*100MM 4153-4591-1 2
3 PLASTIC FOOT FOR F-SUB 4153-9441-0 4
4 8"WOOFER F-SUB 8900-5740-0 1
5 SCREW BINDING HEAD M4*16 2913-4016-3000 12
6 AMPLIFIER 1
7 ACOUSTIC WOOL 860*320*30 4153-0351-0 1
8 ACOUSTIC WOOL 200*600*30 4153-0461-0 1
9 N.PLATE 'CELESTION' E-SE 2150-5481-0 1
10 N.PLATE CARRIER CELESTIO 2150-5491-0 1
11 BARCODE S/N LABEL SP8387 3000-6333-0 4
12 EVA GASKET 5*500 4153-3331-0 2
FC311C-EU/UK(S8MKII 230V BLACK)
REF DESCRIPTION PARTS NO. QTY
1 CABINET FOR S8 BLACK 1403-4320-1 1
2 PORT TUBE D74*100MM 4153-4591-1 2
3 PLASTIC FOOT FOR F-SUB 4153-9441-0 4
4 8"WOOFER F-SUB 8900-5740-0 1
5 SCREW BINDING HEAD M4*16 2913-4016-3000 12
6 AMPLIFIER 1
7 ACOUSTIC WOOL 860*320*30 4153-0351-0 1
8 ACOUSTIC WOOL 200*600*30 4153-0461-0 1
9 N.PLATE 'CELESTION' E-SE 2150-5481-0 1
10 N.PLATE CARRIER CELESTIO 2150-5491-0 1
11 BARCODE S/N LABEL SP8387 3000-6333-0 4
12 EVA GASKET 5*500 4153-3331-0 2
FC312C-EU/UK(S8MKII 230V GRAY)
REF DESCRIPTION PARTS NO. QTY
1 CABINET FOR S8 GRAY 1403-4320-2 1
2 PORT TUBE D74*100MM 4153-4591-1 2
3 PLASTIC FOOT FOR F-SUB 4153-9441-0 4
4 8"WOOFER F-SUB 8900-5740-0 1
5 SCREW BINDING HEAD M4*16 2913-4016-3000 12
6 AMPLIFIER 1
7 ACOUSTIC WOOL 860*320*30 4153-0351-0 1
8 ACOUSTIC WOOL 200*600*30 4153-0461-0 1
9 N.PLATE 'CELESTION' E-SE 2150-5481-0 1
10 N.PLATE CARRIER CELESTIO 2150-5491-0 1
11 BARCODE S/N LABEL SP8387 3000-6333-0 4
12 EVA GASKET 5*500 4153-3331-0 2
