Cello C1624F - Connecting an AV Device with Composite Cable

Making Video and Audio Connections
1. Use an AV cable to connect the TV’s Mini AV in-
put sockets to an external AV device’s compos-
ite audio/video sockets. (Video=yellow, Audio
Left=white, and Audio Right=red)
2. Plug the connected devices into the main
socket.
3. Press the STANDBY button on the TV or the
button on the remote control.
4. Press the SOURCE button on the TV or the
SOURCE button on the remote control to
display the Source List. Use the ▲▼ buttons
to select AV and then press the OK button to
ocnfirm.

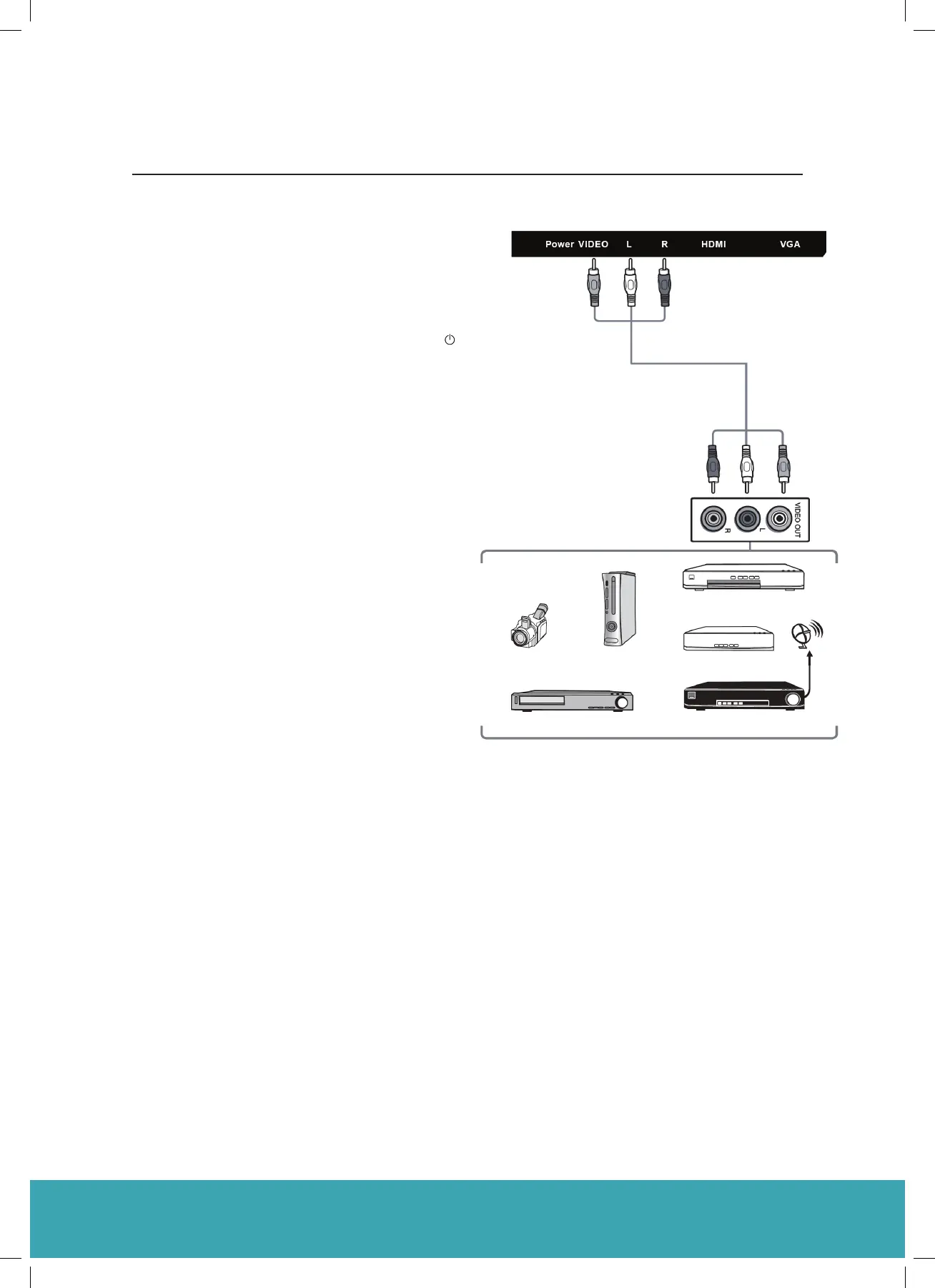

Rear View of TV
Yellow (Video)
White (L)
Red (R)
Yellow (Video) White (L)
Red (R)
AV Cable
(not included)
Video Camera Game Console Set-top Box
Satellite
Antenna
cable
Satellite Receiver
VCR
DVD Player/Recorder
