Step 3: Take away the mounting bracket and then drill four 8mm diameter holes on the wall.
Insert plastic wall plug into the drilled holes (Figure 3). If installing the appliance on a solid
wood wall there is no need to drill the holes in the wood and no need for the plastic wall
plug.
Figure 3

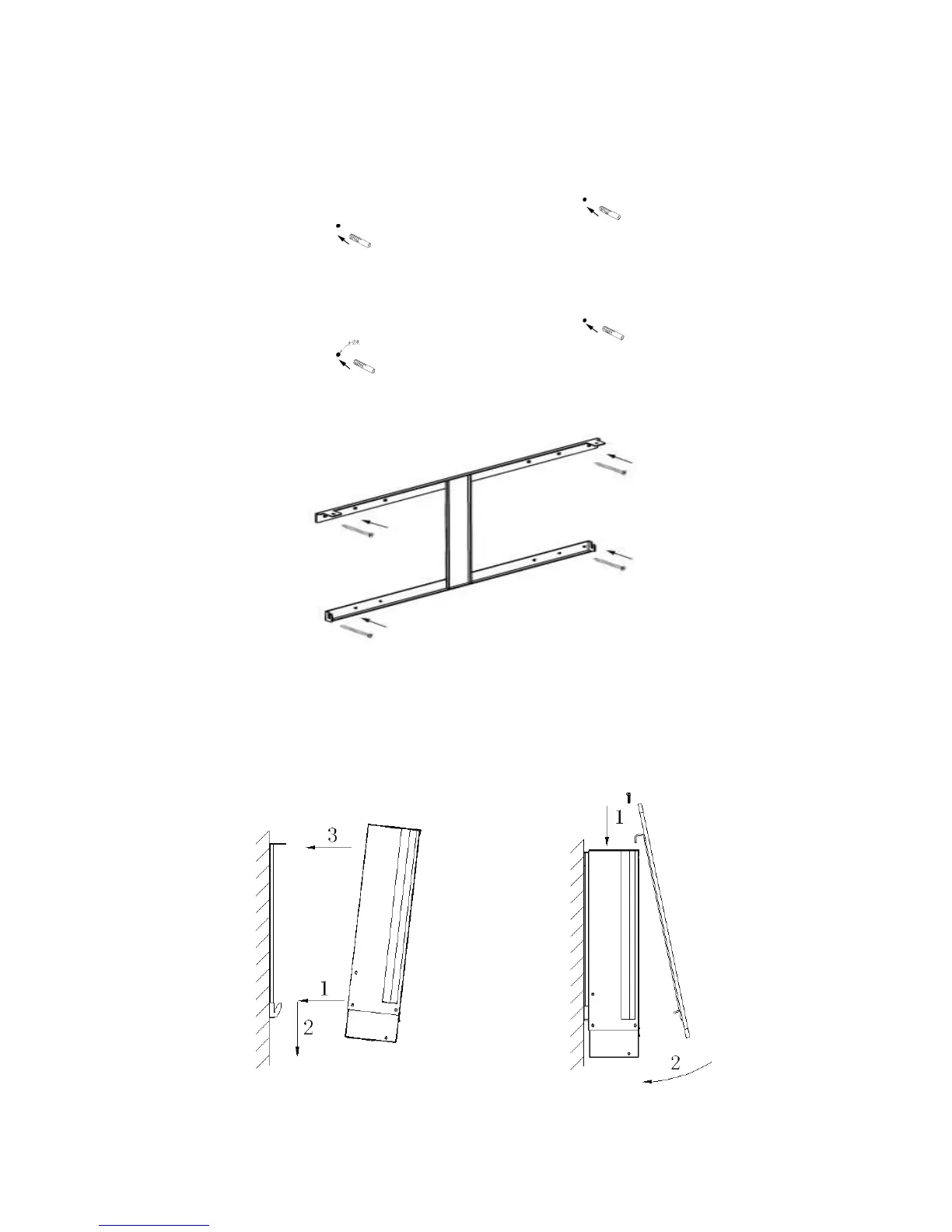

Step 4: Fix the mounting bracket using four M5×8 screws (Figure 4).
Figure 4
Step 5: Hang the appliance on the hooks at the bottom of the bracket and push the top of
the appliance into the mounting bracket. Now fix the appliance to the mounting bracket by
refitting the two M5×8 screws which were removed in step 1 (Figure 5).
Step 6: Fit the appliances front fascia as shown below. (Figure 6)
Figure 5 Figure 6
