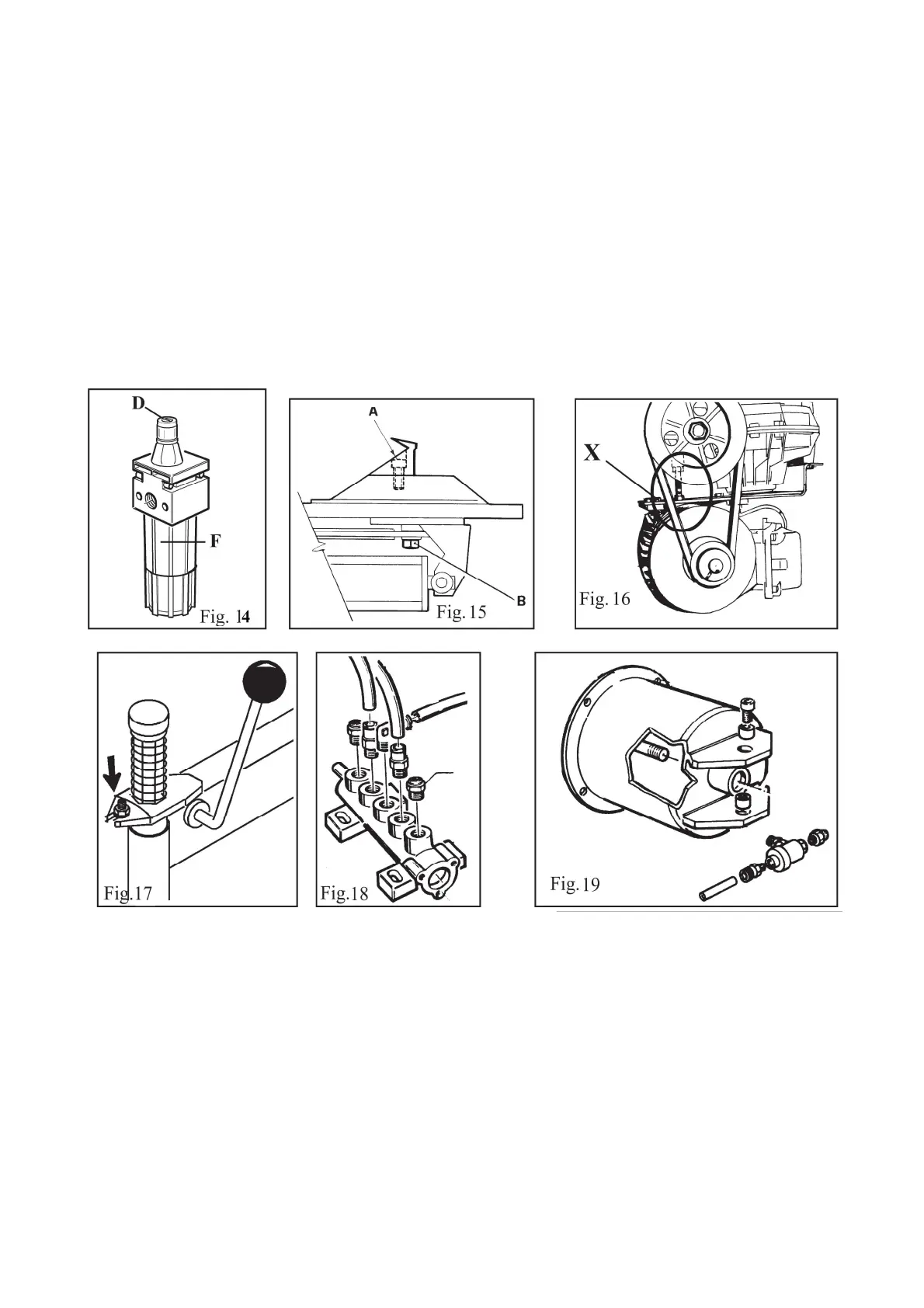

If necessary to adjust the vertical arm locking plate because the tool does not lock or it does not
rise from the rim of 2mm necessary for working, adjust nuts as shown in Fig. 17.
For cleaning or replacing the silencer for opening/closing clamps, see Fig 18 and proceed as follows:
1. Remove the left side panel of the machine body by unscrewing the four fixing screws.
2. Unscrewing the silencer put on the pedal system, on the clamp opening/closing pedal.
3. Clean by a jet of compressed air or, if damaged, replace by referring to the spare parts
catalogue.
For cleaning or replacing the silencer of bead breaker, see Fig. 19 and proceed as shown on previous
point 1 and 3.
