CHAPTER 2 – GENERAL INFORMATION
2.1
INTENDED USE
• This Semi-automatic tire changer has been designed and manufactured exclusively for
removing and mounting tires from/onto rims from 10" to 26" and a maximum diameter of
1000 mm.
• In particular THE MANUFACTURER cannot be held responsible for any damage caused
through the use of this tire changer for purposes other than those specified in this manual, and
therefore inappropriate, incorrect and unreasonable.

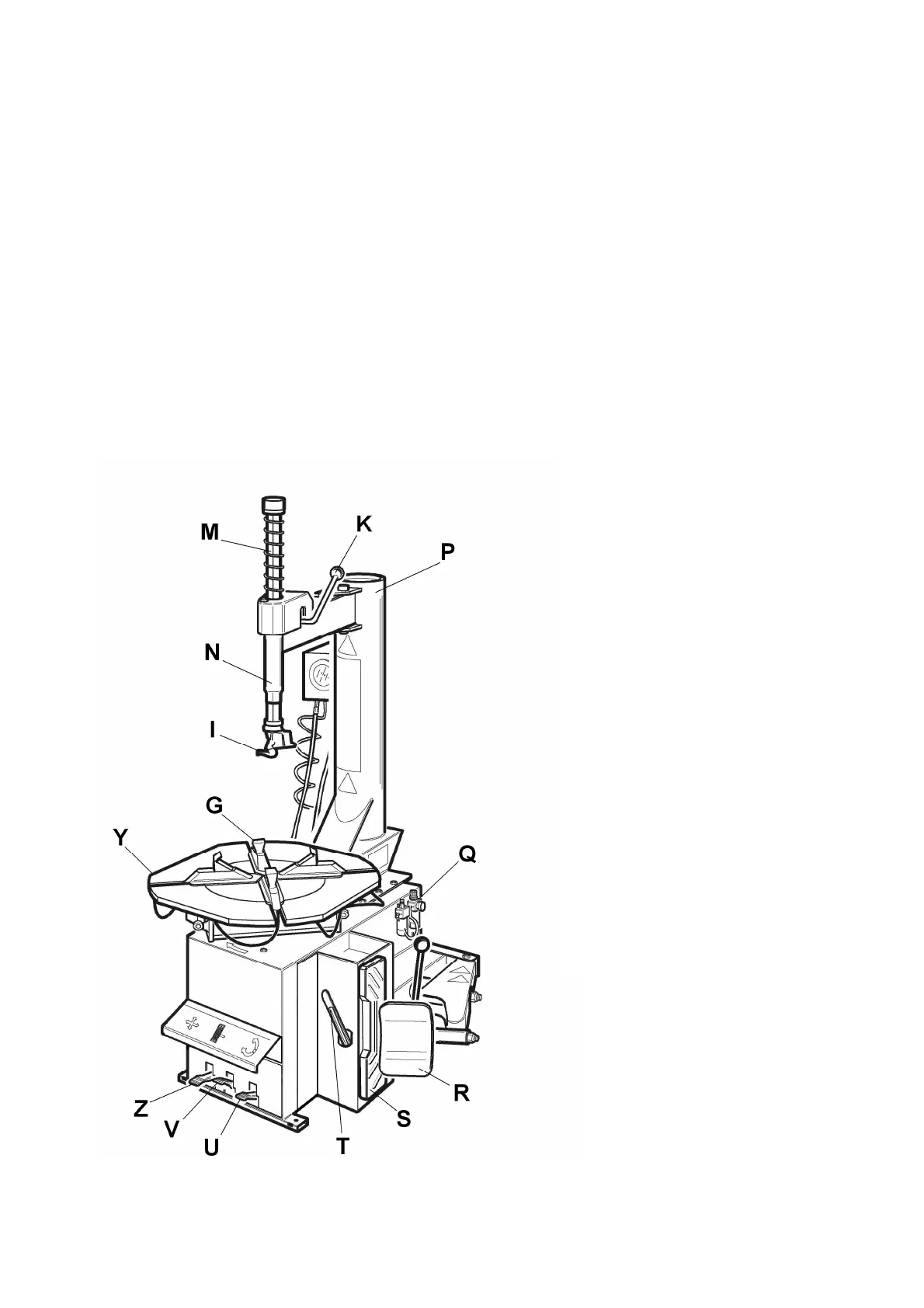

2.2 DESCRIPTION
G) Clamps
I) Mounting head
M) Mounting bar
N) Horizontal arm
P) Vertical arm
Q) Air supply
R) Bead breaker
S) Wheel support
T) Bead lifting lever
U) Clamp control pedal
V) Clamp control pedal
Z) Reverser control pedal
Y) Turntable
K) Locking lever
Fig . 1
