8

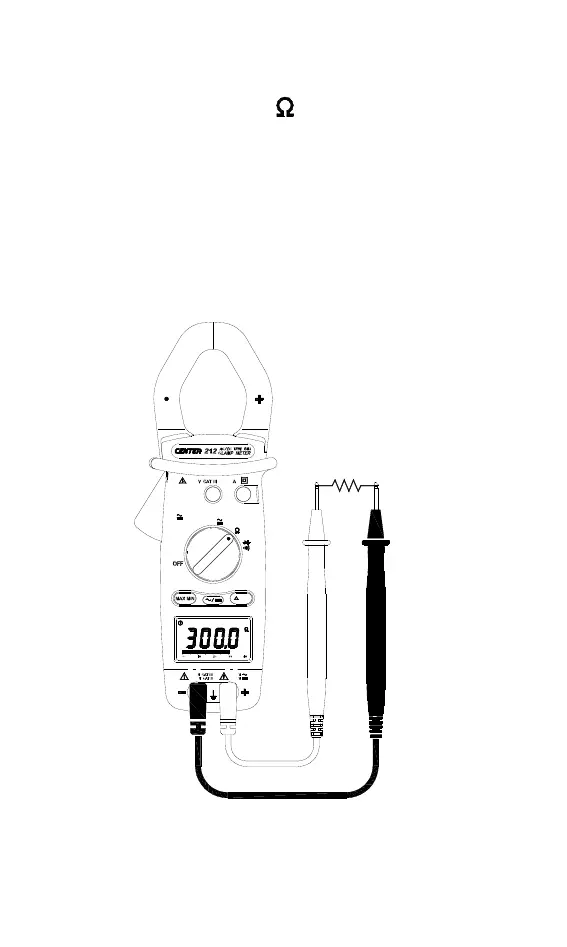

4.3 Resistance measurement:
Switch the main function to “ ” range, check the power line is
disconnected from the system .
Connect red test lead to “+” terminal and black one to the “ COM ”
terminal.
Connect tips of the test leads to the points where the value of the
resistance is needed.
Read the result from the LCD panel.
Note:
When take resistance value from a circuit system, make sure the
power is cut off and all capacitors need to be discharged.
600V
1000
600 600
1000
PEAK
1mS
400
40
A
REL
Hz
1000 V
600 1000
HOLD
