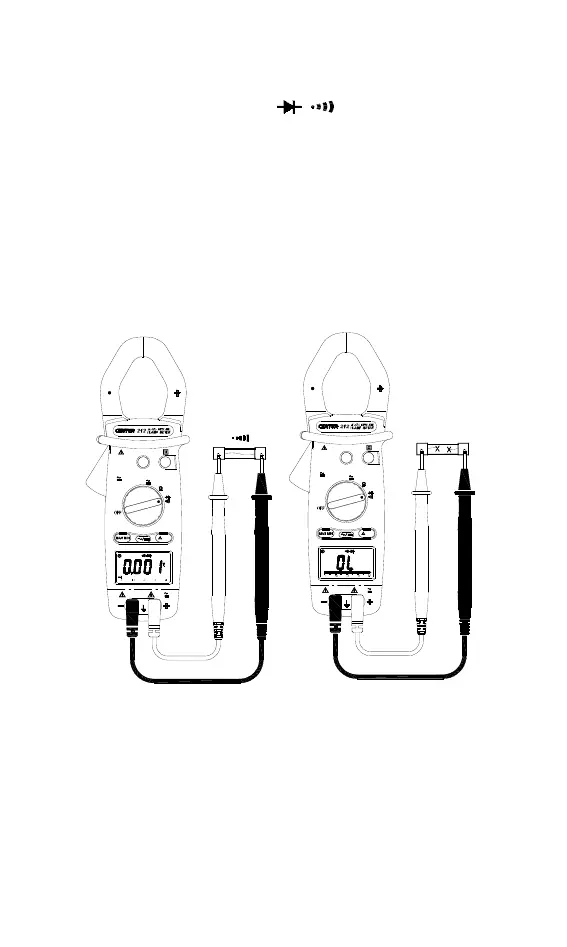

4.4 Continuity Test:
Switch the main function to ”
” range, check the power
line is disconnected from the system.
Connect red test lead to “+” terminal and black one to the “ COM ”
terminal.
Connect tips of the test leads to the points where the conduction
condition needed.
If the resistance is under 100Ω, the beeper will sound continuously.
Beeper
² Short circuit ² Open circuit
