Clamp Meter
10

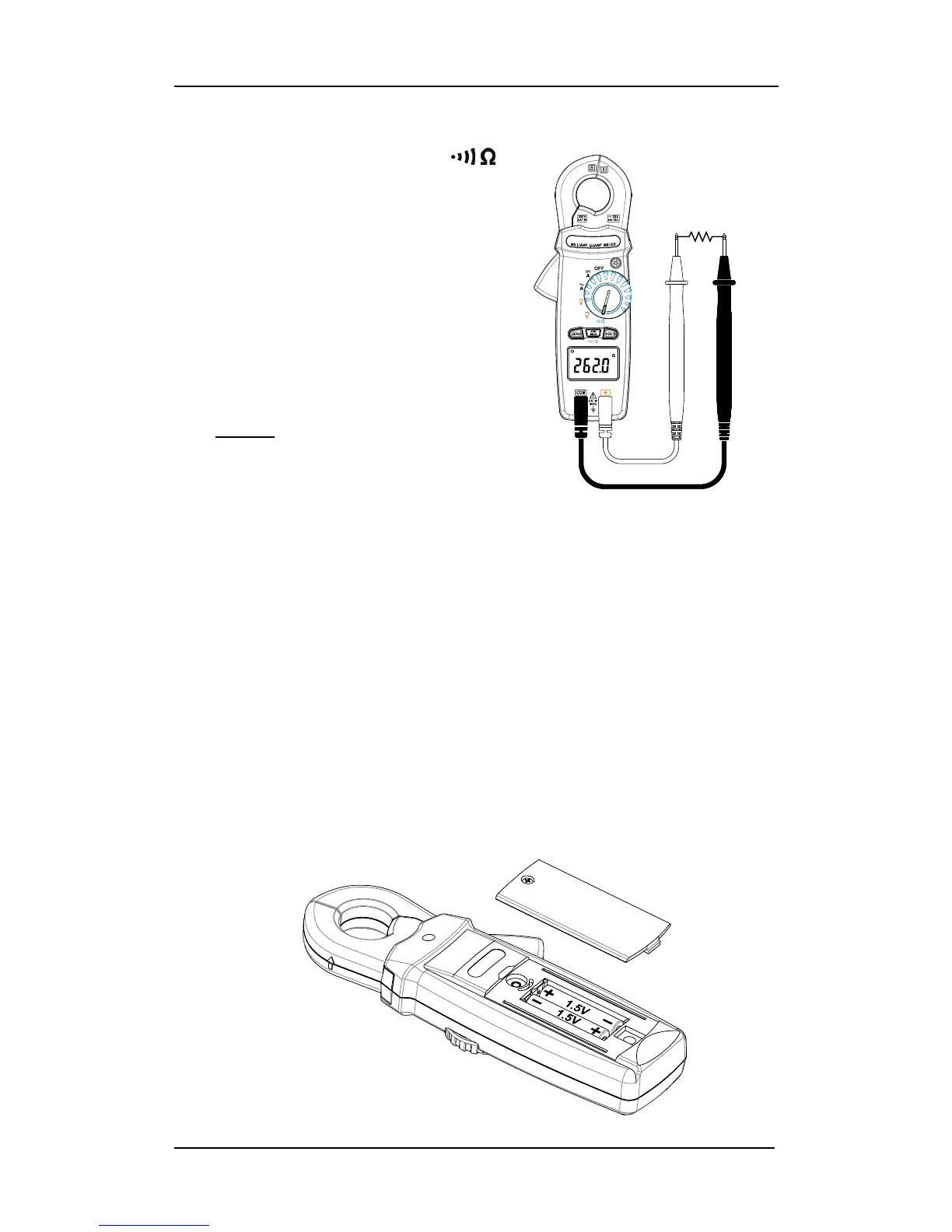

6-6 Resistance Measurement
Switch the main function to
range.
Connect red test lead to “+”
terminal and black one to the
"COM" terminal.
Connect tip of the test leads to
the points where the value of the
resistance is needed.
Read the result from the LCD
panel.
Note：
When take resistance value from
a circuit system, make sure the
power is cut off and all capacitors
need to be discharged.
7. BATTERY CHANGING
When the battery voltage drop below proper operation range the
symbol will appear on the LCD display and the battery needs to be
changed.
Before changing the battery, switch the main dial to “OFF ”and
disconnect test leads.
Open the back cover by a screwdriver.
Replace the old batteries with two new 1.5V(AAA Size) battery.
Close the back cover and fasten the screw.
