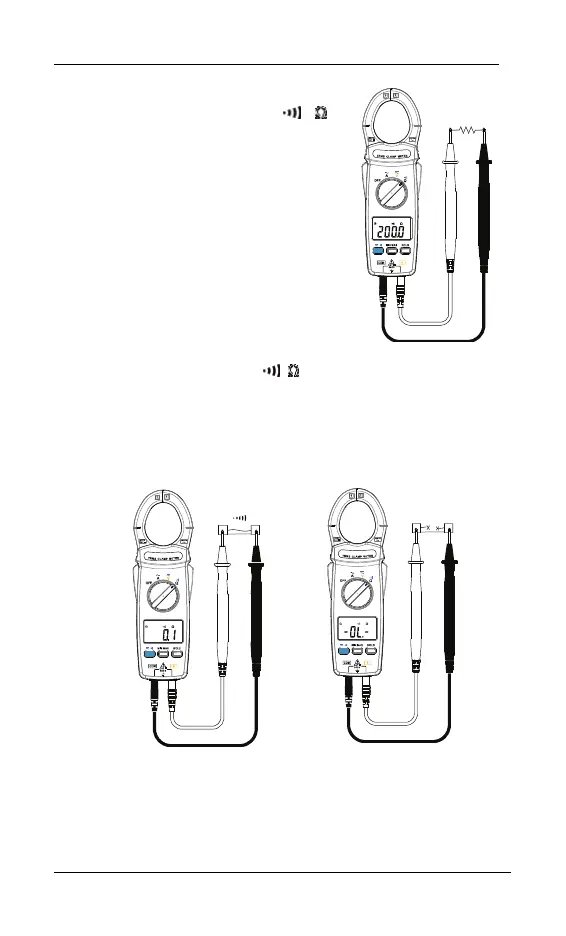

6-4 Resistance Measurement
Switch the main function to
range.
Connect red test lead to “+”terminal
and black one to the "COM” terminal.
Connect tip of the test leads to the
points where the value of the
resistance is needed.
Read the result from the LCD panel.
Note
：
When take resistance value from a
circuit system, make sure the power is
cut off and all capacitors need to be
discharged.
6-5 Continuity Test With Buzzer
：
Switch the main function to range.
Connect red test lead to“+”terminal and black one to the “COM”
terminal.
Connect tip of the test leads to the points where the conduction
condition needed.
If the resistance is under 100Ω, the beeper will sound continuously.
Beepe
Short circuit Open circuit
