Page 15For technical questions, please call 1-800-444-3353.Item 47016
67181
NOTICE
Clean the Spray Gun IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Spray Gun.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.

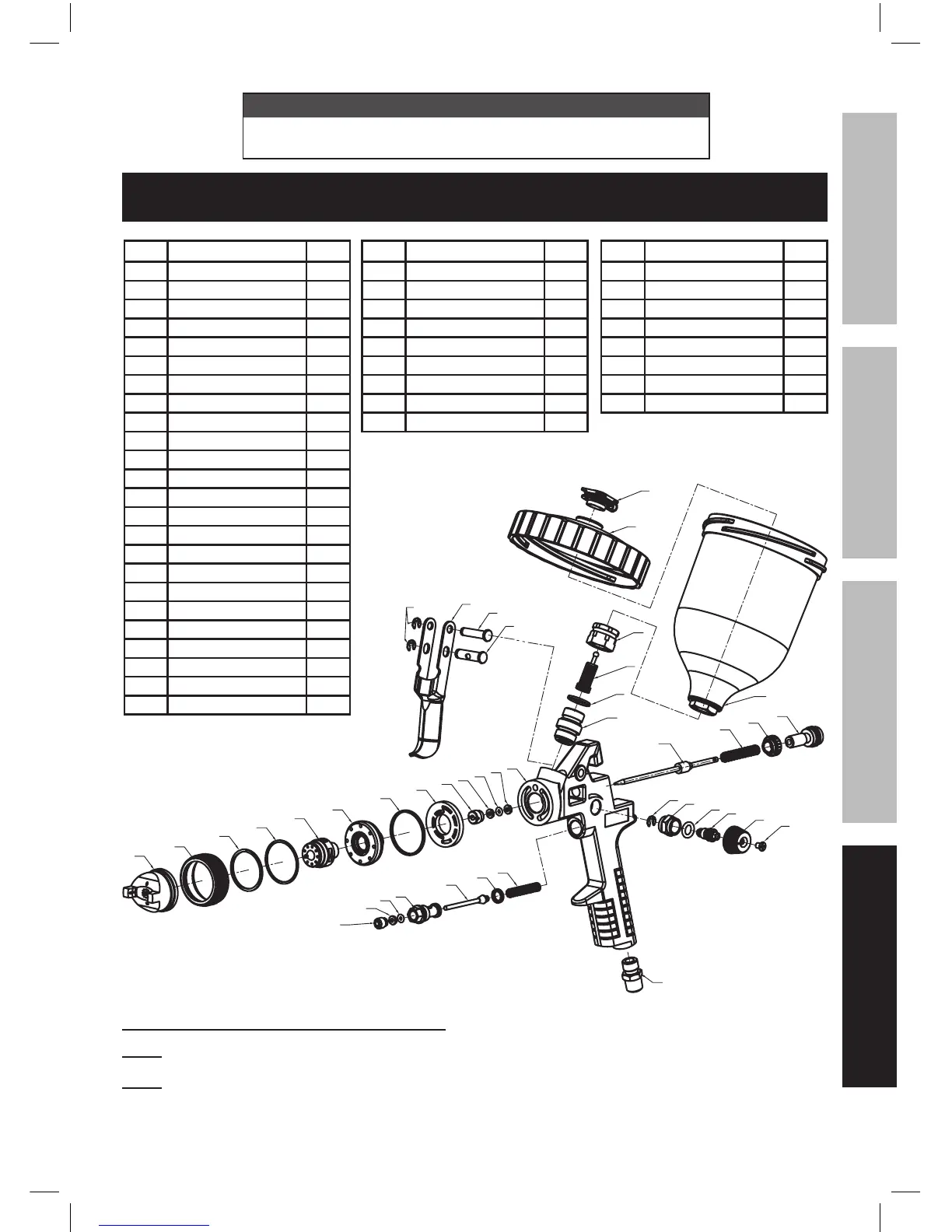

Parts List and Diagram
Part Description Qty
1 Nozzle 1
2 Lock Ring 1
3 Ring Washer 1
4 Sealed Ring 1
5 Fluid Nozzle 1
6 Nozzle Seat 1
7 Nozzle Seat Gasket 1
8 Spacing Ring 1
9 Screw Washer 1
10 Washer 2
11 O-Ring 1
12 Gun Body 1
13 Screw 1
14 Washer 1
15 O-Ring 1
16 Air Valve 1
17 Valve Shaft 1
18 Valve Gasket 1
19 Switch Spring 1
20 Air Inlet 1
21 Fixing Screw 1
22 Adjustment Nut 1
23 Pattern Knob 1
24 O-Ring 1
Part Description Qty
25 Adjustment Seat 1
26 Split Washer 1
27 Needle 1
28 Needle Spring 1
29 Adjusting Knob 1
30 Adj. Knob Screw 1
31 Split Washer 2
32 Trigger 1
33 Trigger Pin 1
Part Description Qty
34 Needle Pin 1
35 Fluid Inlet Screw 1
36 Washer 1
37 Filter Connection 1
38 Connection Nut 1
39 Cup 1
40 Cup Lid 1
41 Vent Cap 1
15
7
34
8
32
31
2
33
9
19
12
4
5
1
3
6
10
11
10
18
20
17
21
16
14
13
39
36
22
23
24
25
26
27
28
29
30
37
35
40
41
38
