Page 9For technical questions, please call 1-800-444-3353.Item 47016
67181
NOTICE
Clean the Spray Gun IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Spray Gun.
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this
product.
Inspect tool before use, looking for damaged, loose, and missing parts.
If any problems are found, do not use tool until repaired.
Workpiece and Work Area Set Up
1. Designate a work area that is clean
and well-lit. The work area must not
allow access by children or pets to
prevent distraction and injury.
2. Route the air hose along a safe
path to reach the work area without
creating a tripping hazard or exposing
the air hose to possible damage.
The air hose must be long enough to reach
the work area with enough extra length
to allow free movement while working.
3. Before spraying, mask nearby
objects not being sprayed and lay
cloths (not included) on the floors.
Nozzle
Trigger
Lock Ring
Fluid
Knob
Pattern
Adjustment
Knob
Air Inlet
Air Knob
Cup

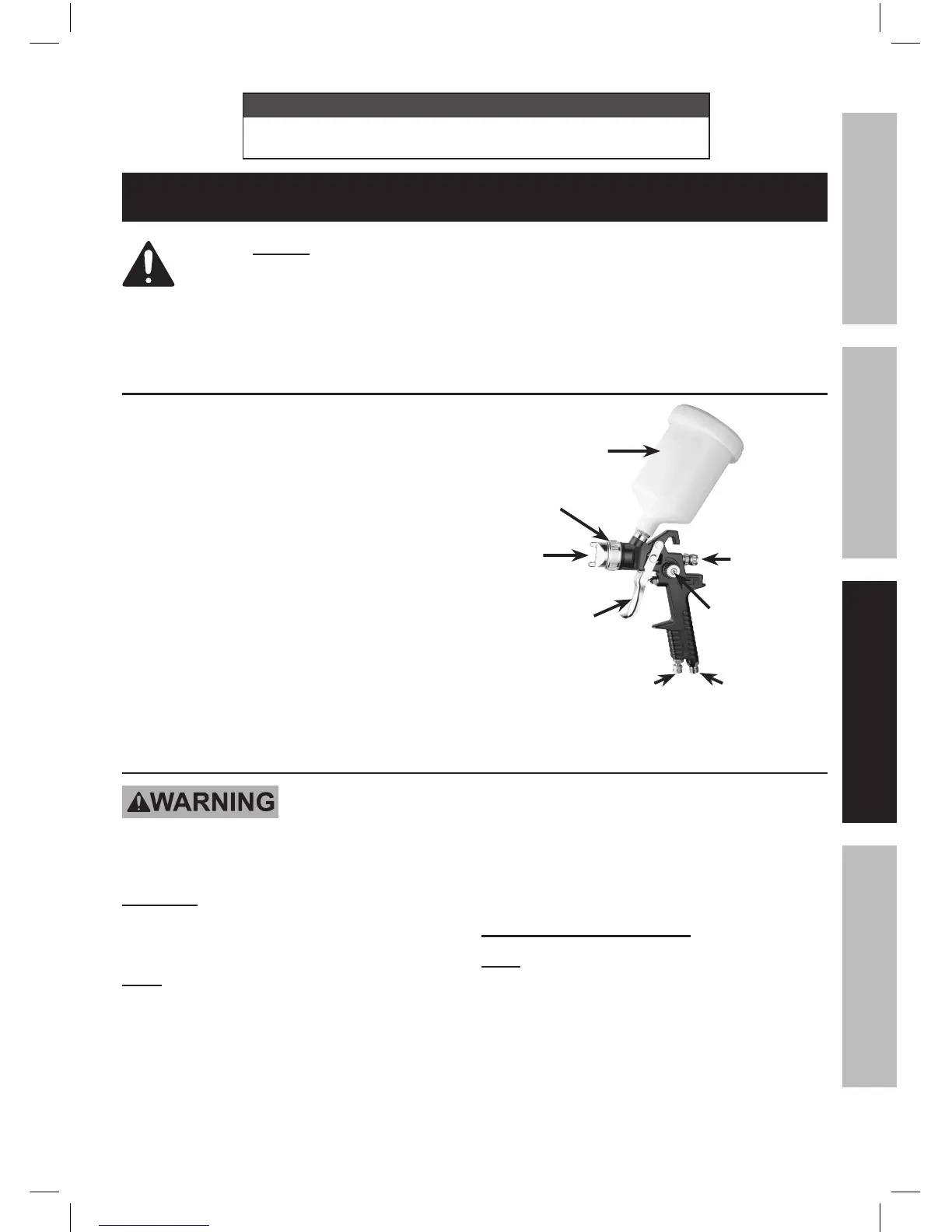

Figure C: Components and Controls
Spray Gun Setup Adjustment
TO PREVENT SERIOUS INJURY:
Do not adjust or tamper with any control or component in a way not specifically explained
within this manual. Improper adjustment can result in tool failure or other serious hazards.
CAUTION! Keep hands away from Trigger while making adjustments.
1. Thread the Cup to the top of the Gun Body
and tighten until the Cup is securely in place.
Note: This Spray Gun is meant for spraying
oil-based paints. It is not recommended for
regular wall paint or thin coatings of any type.
While these products can be used with
this Spray Gun, coverage will not be even.
Paint Preparation and Filling
Note: Proper paint mixture is essential.
Follow the manufacturer’s directions. Most paints
will spray easily if they are thinned properly.
2. Thin the paint according to manufacturer’s
directions and mix thoroughly.
3. Carefully strain the paint through
a paint strainer or a piece of cheesecloth.
SAFETYOPERATIONMAINTENANCE SETUP
