OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect spray gun before use,
looking for damaged, loose,
and missing parts. If any
problems are found, do not use
spray gun until repaired.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Detach the air supply, safely
discharge any residual air
pressure in the spray gun,
and release the trigger before
performing any inspection,
maintenance, or cleaning
procedures.
Material Preparation and filling
Note: Proper paint material mixture helps
to ensure less problems. Follow
the manufacturer’s directions. Most
materials will spray readily if they are
thinned properly.
1. Mix and thin the paint/materials
thoroughly according to the manufac-
turer’s directions.
2. Carefully strain the paint/material
through a paint strainer or piece of
cheese cloth.

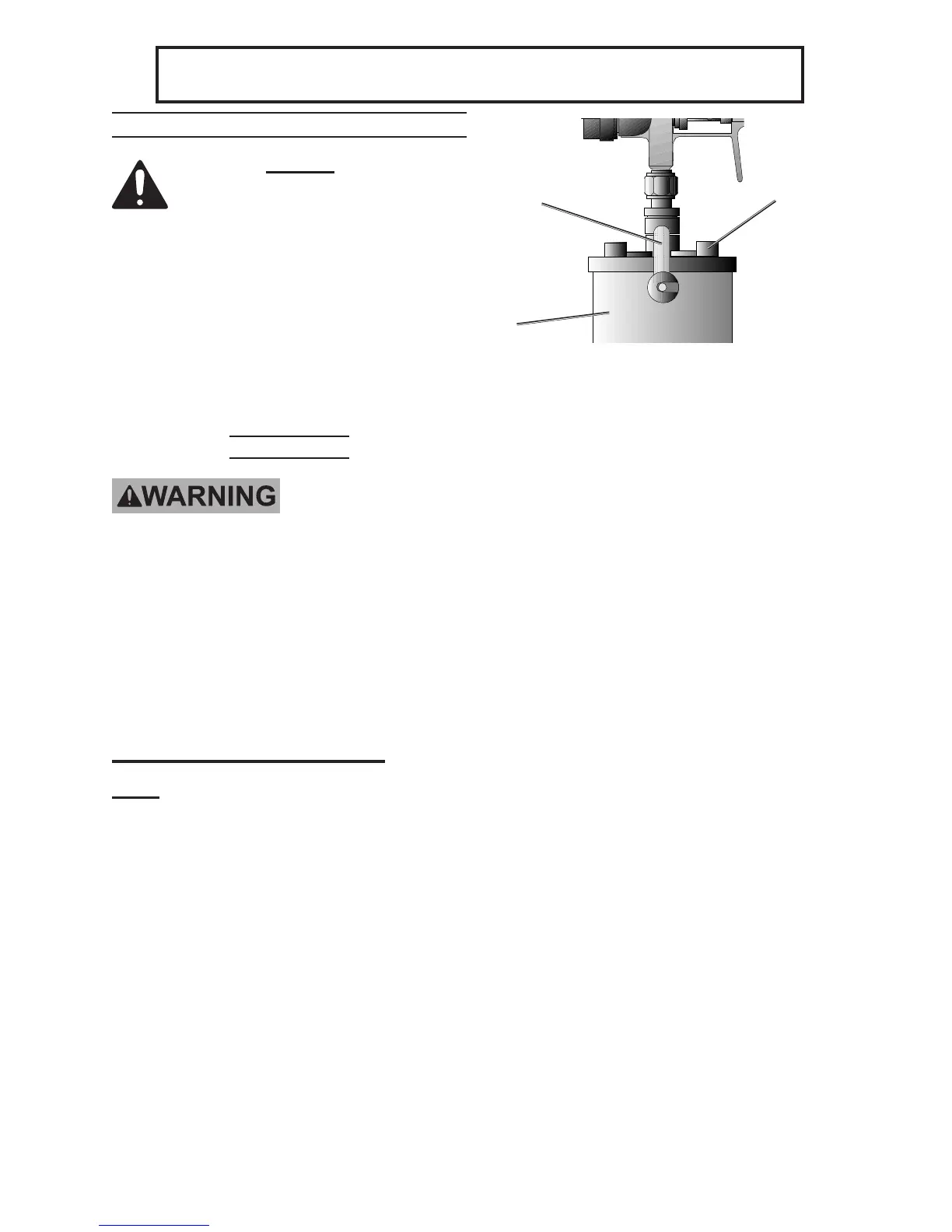

3.
Cup
Locking
Lever
Cup
Locking
Yoke
Cup
Move the Cup Locking Lever clock-
wise until the cup is released.
4. Fill the Cup to approximately 3/4 full.
5. Replace the Spray Gun on the Cup.
6. Hook the Cup Locking Yoke over
the tabs on the cup. Move the Cup
Locking Lever counterclockwise until
snug.
DO NOT FORCE THE LEVER!
7. Start the air compressor.
8. To adjust the spray pattern, set up a
piece of scrap material to practice on.
While practicing on the scrap mate-
rial, check to see that the material
you are spraying has the appropriate
consistency. If it appears too thin,
add a very small amount of thinner
(not included). Use the proper thinner
for the type of paint you are using. BE
CAREFUL when thinning. Proceed
slowly, adding very minimal amounts.
DO NOT exceed the manufacturer’s
thinning recommendations.
IMPORTANT: Clean the Spray Gun IMMEDIATELY after use.
Improper cleaning will cause the Spray Gun not to work.
