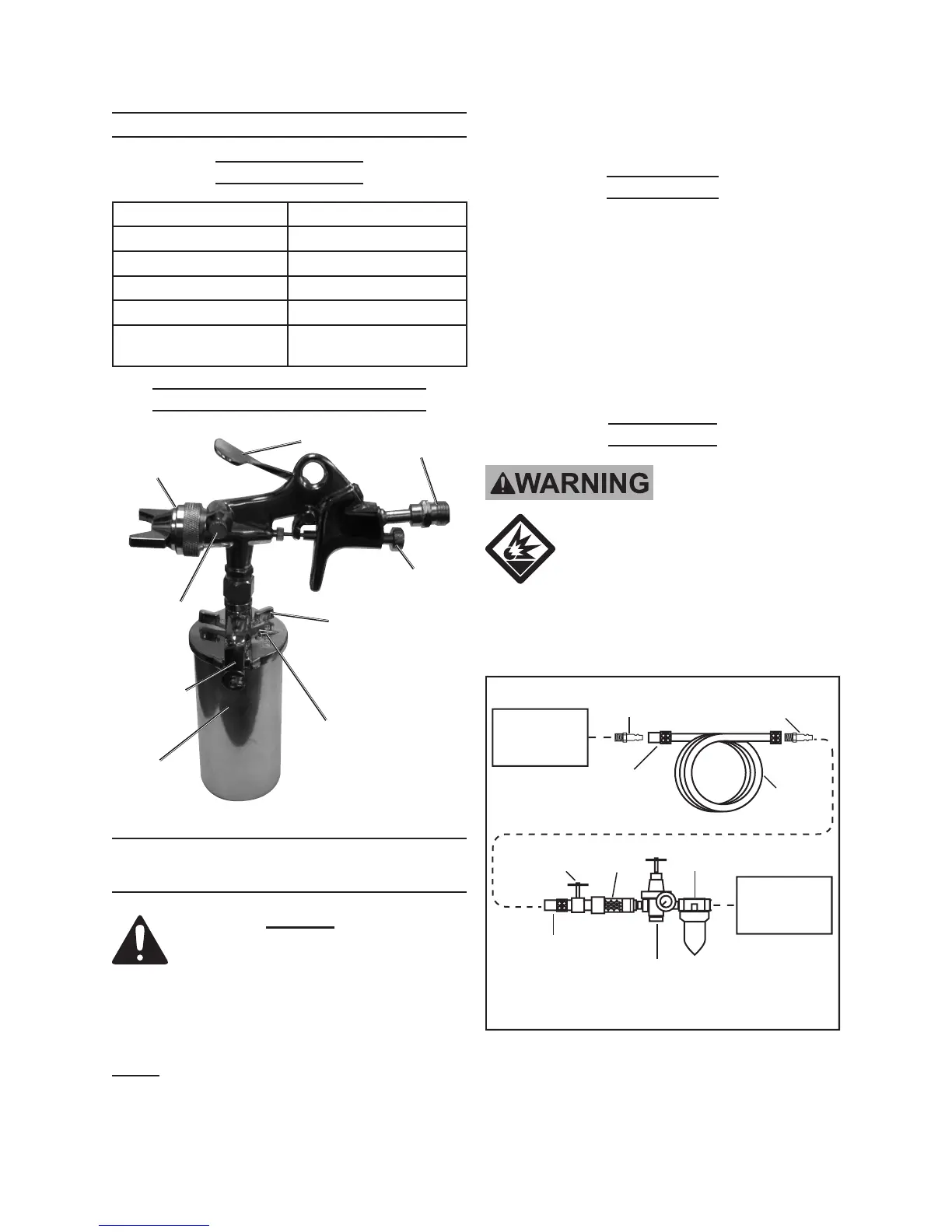

FUNCTIONAL DESCRIPTION
Specications
Operating Air Pressure 45-60 PSI
Paint Capacity 6.75 uid oz
Air Inlet 1/4” - 18 NPS
Nozzle Size .06” (1.5 mm)
Feed Type Siphon
Air Consumption
4.7 CFM @ 45 PSI
6.2 CFM @ 60 PSI
Components and Controls
Air Cap
Set
Trigger
Cup
Locking
Lever
Cup
Locking
Yoke
Cup
Vent
Pattern
Control
Knob
Fluid
Control
Knob
Air Inlet
Cup
INITIAL TOOL SET UP/
ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon
as possible.
• This spray gun may be shipped with
a protective plug covering the air in-
let. Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
spray gun. Do not use
oxygen, carbon dioxide,
combustible gases, or any
other bottled gas as a power
source for this spray gun.
Quick
Coupler
Dryer
Recommended Air Line Components
Regulator with
Pressure Gauge
Quick
Coupler
Air Hose
on Reel
Valve Filter
Coupler
Plug
Tool
Air
Compressor
Coupler
Plug
1. Incorporate a lter, regulator with
pressure gauge, dryer, in-line shutoff
valve, and quick coupler for best ser-
