Specifications
Electrical Rating 120V~ / 60Hz / 12A
Air Outlet Size
1
/
4
″ -18 NPT
Air Pressure
Shut-off 125 PSI
Restart 95 PSI
Air Tank Capacity 8 Gallons
Air Flow Capacity
4.5 CFM @ 90 PSI
5.5 CFM @ 40 PSI
Oil Capacity 12 oz.
Oil Type
SAE 30W, non-detergent, Air Compressor Oil
(sold separately)
Sound Level 88 dB @ 3'
226892

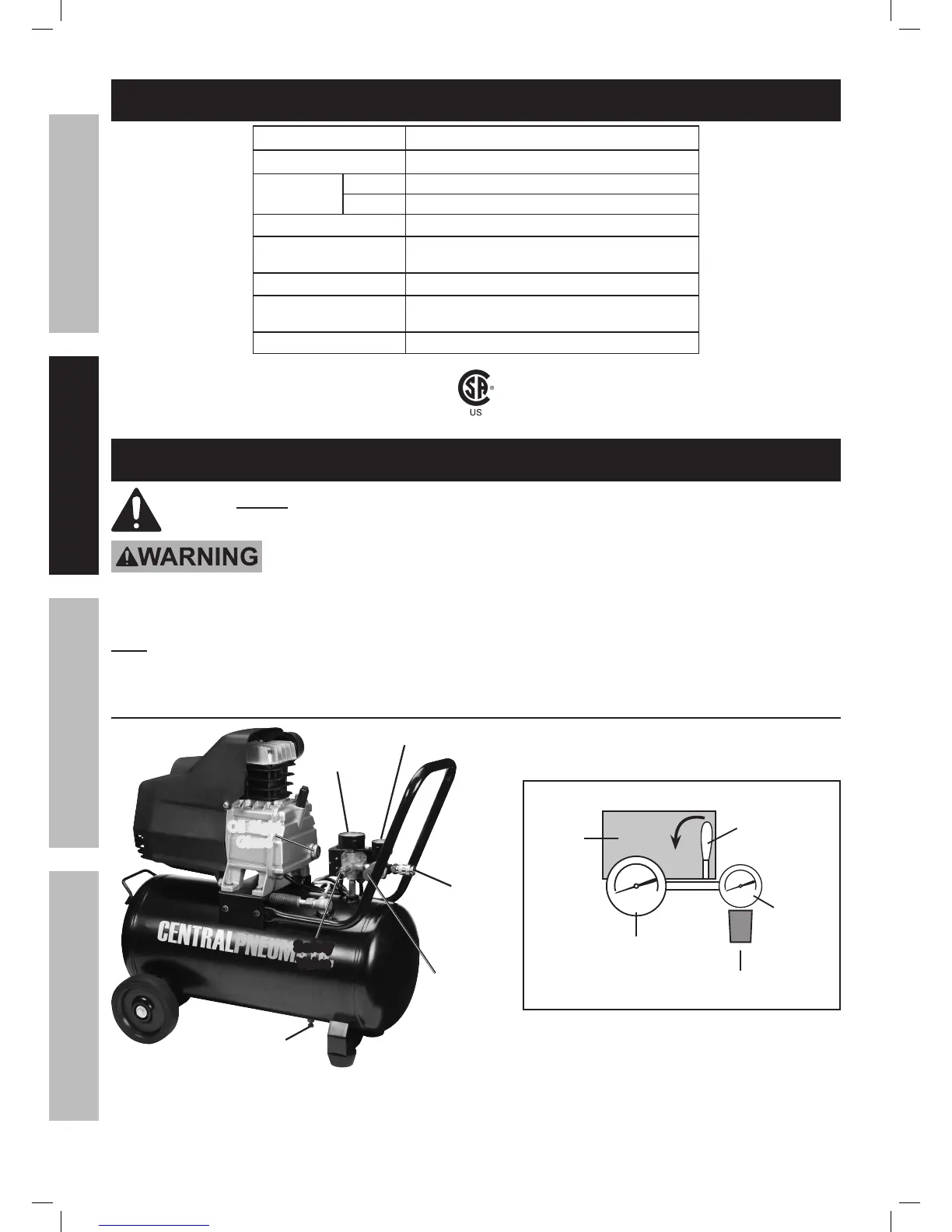

Instructions for putting into use
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and unplug the Air Compressor from its electrical
outlet before assembling or making any adjustments to the compressor.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Functions
Figure A
Oil Sight
Glass
Pressure
Regulator
Safety
Valve
Tank
Pressure
Gauge
Output Pressure
Gauge
Air
Output
Coupler
Drain
Valve
OFF
ON
ON/OFF
Power
Lever
Tank Pressure
Gauge
Output
Pressure
Gauge
Pressure
Regulator
Pressure
Switch
(Top View)
