SKU 94667 For technical questions, please call 1-800-444-3353.
PAGE 10
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.

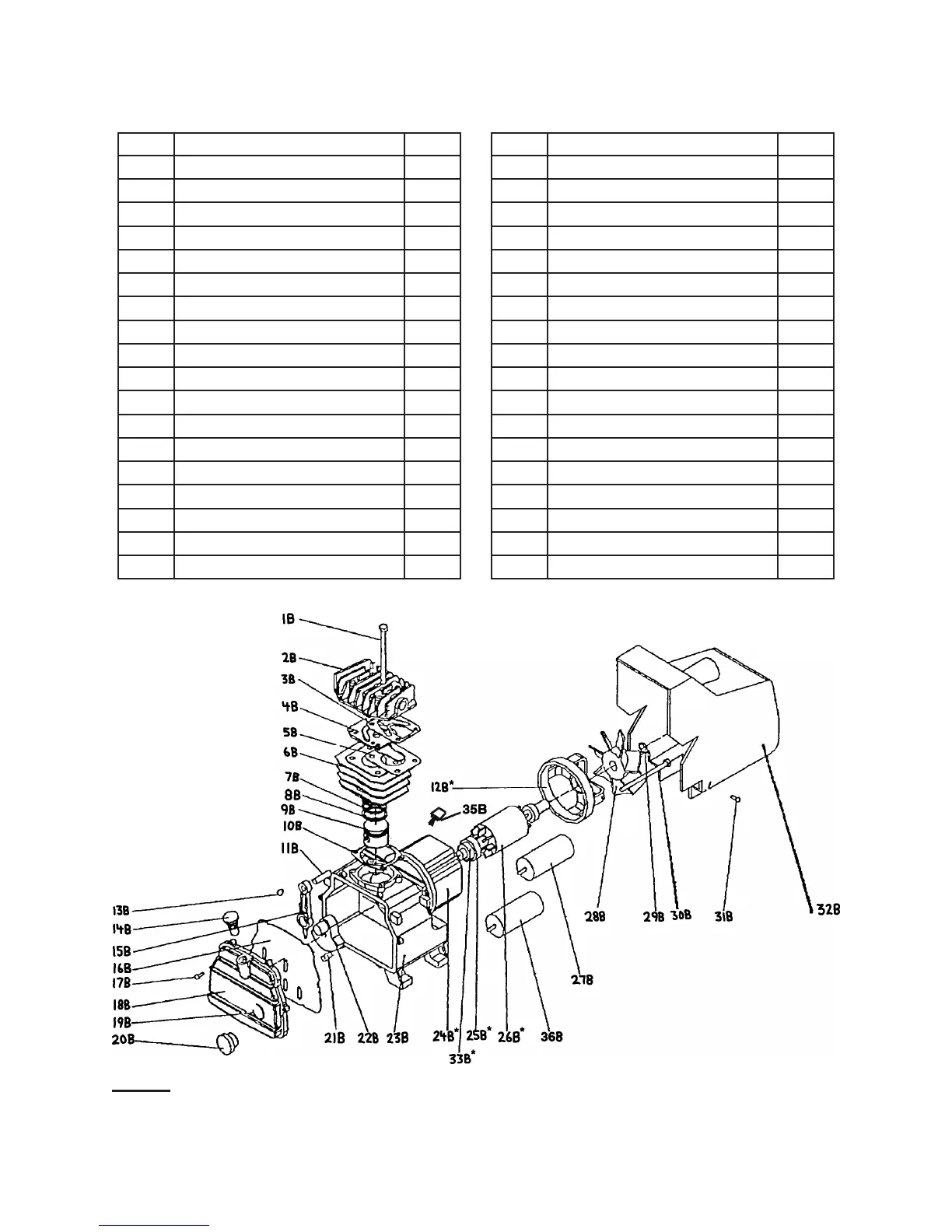

PARTS LIST B / ASSEMBLY DIAGRAM B
Part Description Qty.
1B Bolt 4
2B Cylinder Case 1
3B Gasket 1
4B Valve Seat 1
5B Gasket 1
6B Cylinder 1
7B Compression Ring 2
8B Oil Scraping Ring 1
9B Piston 1
10B Gasket 1
11B Piston Pin 1
12B* End Cover 1
13B Crankshaft Retainer 2
14B Breather Valve 1
15B Connecting Rod 1
16B Gasket 1
17B Bolt 6
18B Front Cover 1
Part Description Qty.
19B Gasket 1
20B Oil Window 1
21B Crankshaft Bolt 1
22B Crankshaft 1
23B Crankshaft Case 1
24B* Stator 1
25B* Bearing 2
26B* Armature 1
27B Start Capacitor, 70 mF±5% bMK 1
28B Radiating Fan Wheel 1
29B Retainer Ring 1
30B Bolt 4
31B Screw 2
32B Radiating Cover 1
33B* Seal Washer 1
34B Motor Assembly 1
35B Overload Switch 1
36B Run Capacitor, 50 mF±5% bMK 1
*Not available individually. Must be ordered as entire Motor Assembly (See part #34B).
To Next Page
