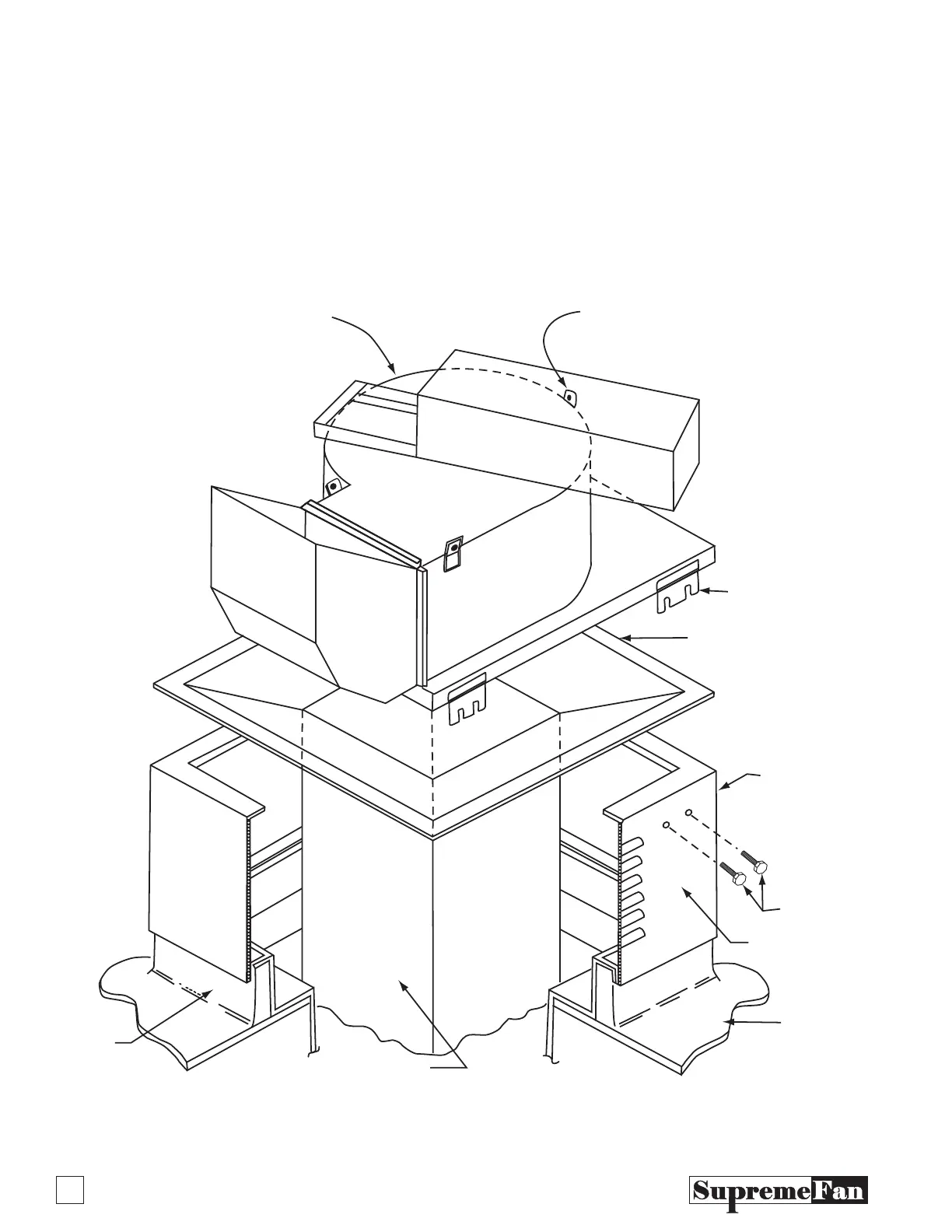

Kitchen Hood Exhauster – Installation Procedure
Lifting
Lugs
Blower
Assembly
Hinges
Duct Flange &
Transition
(By Others)
Fan
Base
Hinge
Bolts
Mount
Disconnect
Switch
Roof
Exhaust Duct
(By Others)
Curb
Step-3 Installation of Top Blower Assembly
Once the duct and transition are in place, the blower assembly can be set. Lifting lugs are factory provided for rig-
ging. Set blower assembly on fan base so hinges match hinge holes in fan base. Tighten hinge bolts and install elec-
trical.
