4 | P a g e

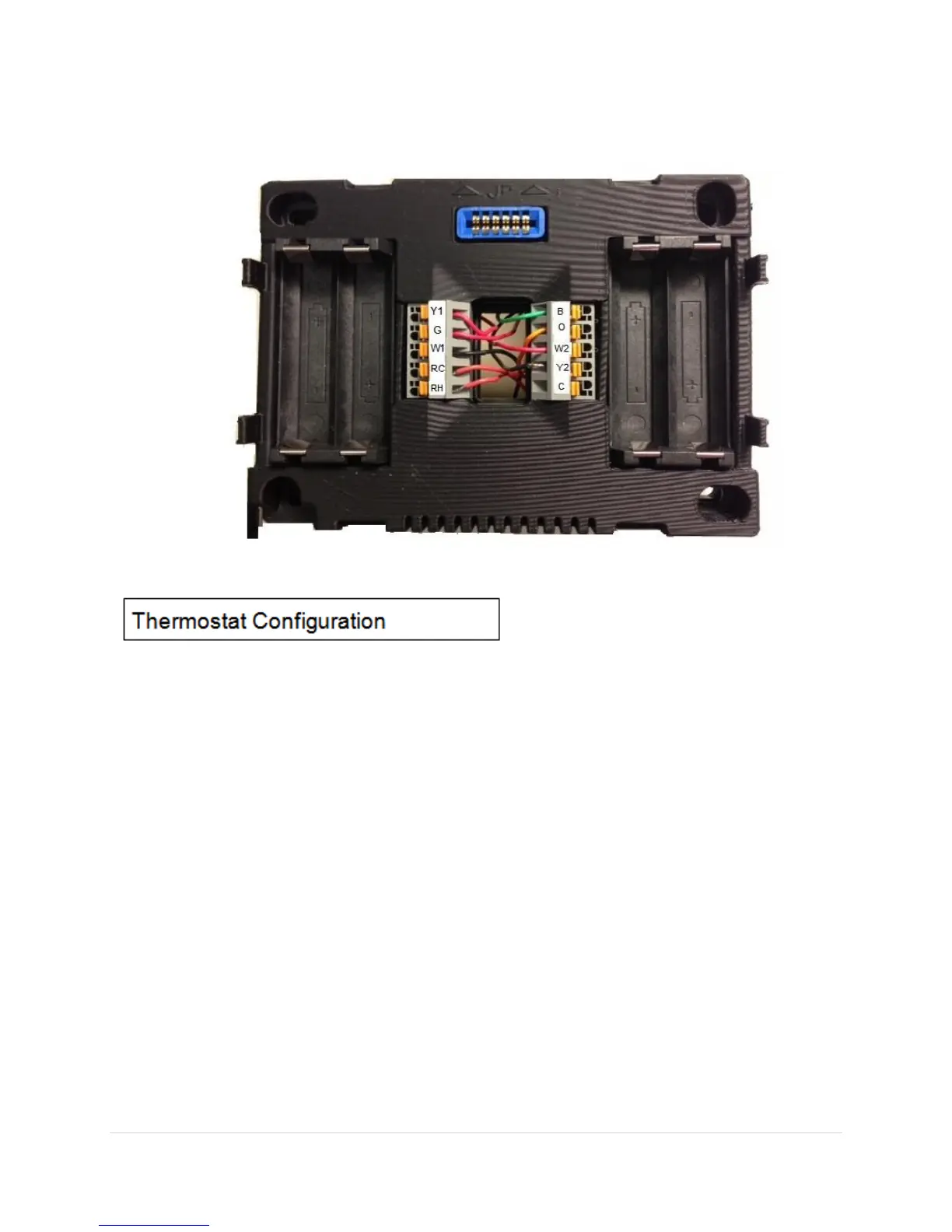

Figure-1 – Full Terminal View
From the factory the thermostat comes configured to work with single stage Cool/Heat,
Single Speed Fan systems.
If your HVAC system is different refer to the programming section to configure the
thermostat for your system.
If you have separate power for RH and RC then you will need to remove the factory
installed jumper between RH and RC.
