page 7 www.centsys.com

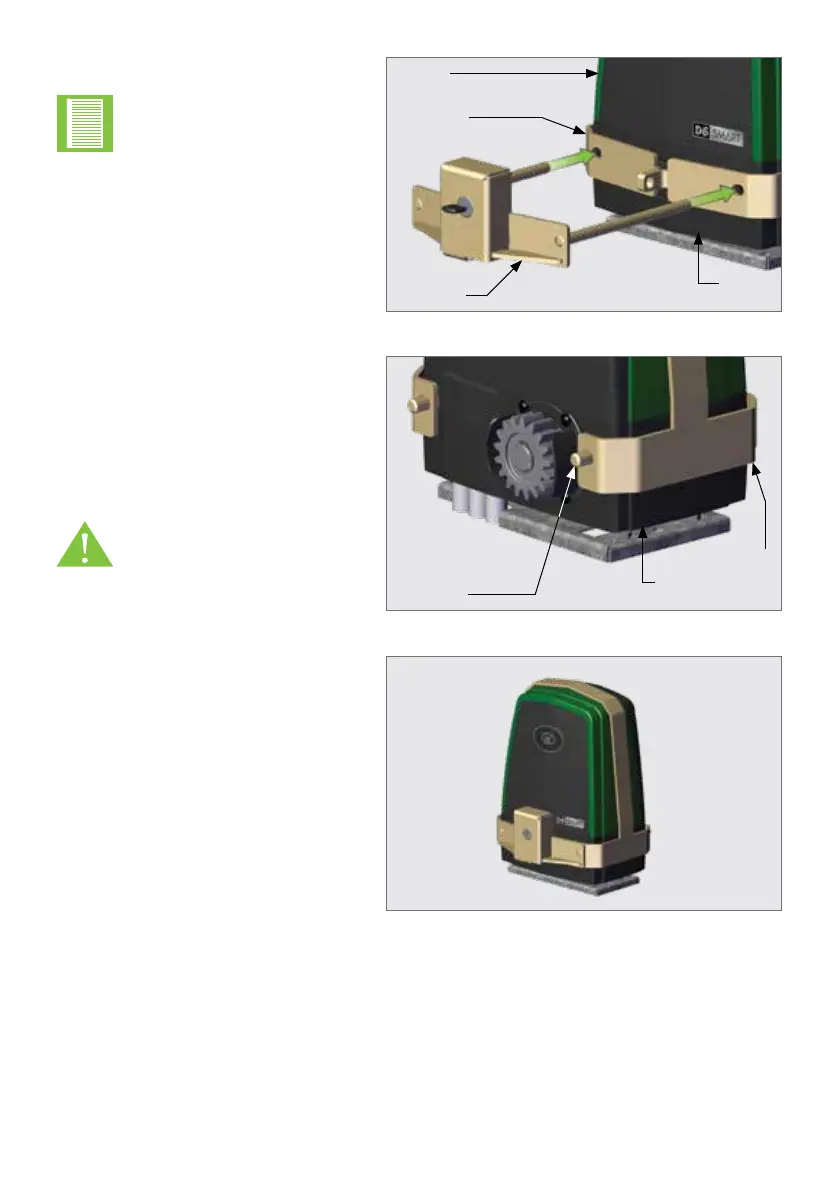

FIGURE 5
FIGURE 6
FIGURE 7
Align the two holes in the Overstrap
with the two holes in the front of
the SMART Operator's Gearbox,
and insert the Front Bar Assembly
through the holes of the Overstrap
and Gearbox.
Lock the Front Bar Assembly into
position, remove the Key and store it
in a safe place.
The nished installation should look
as shown in Figure 7.
SECTION 4
Push the Front Bar Assembly
completely through the Gearbox
and Overstrap, ensuring that the
bar extends out the back of the
Overstrap.
Take care when pushing
the Front Bar Assembly
through the back of the
Gearbox.
Forcing it may cause
damage to the Gearbox
housing.
Front Bar
Assembly
SMART
Operator Gearbox
SMART Operator
Gearbox
Overstrap
Front Bar
Assembly
SMART
Operator
Overstrap
Always unlock the Discus
Padlock before placing the
Front Bar Assembly into
position.
Once the D3 SMART / D5-EVO SMART / D6 SMART Theft-Deterrent Cage has been
successfully installed and its operation tested, it is important for the operation and safety
considerations to be explained to the end-user of the system.
5. Installation Handover
SMART OPERATOR THEFT-DETERRENT CAGE INSTALLATION
