SECTION 10 OPERATOR INSTALLATION - OUTWARD OPENING GATES

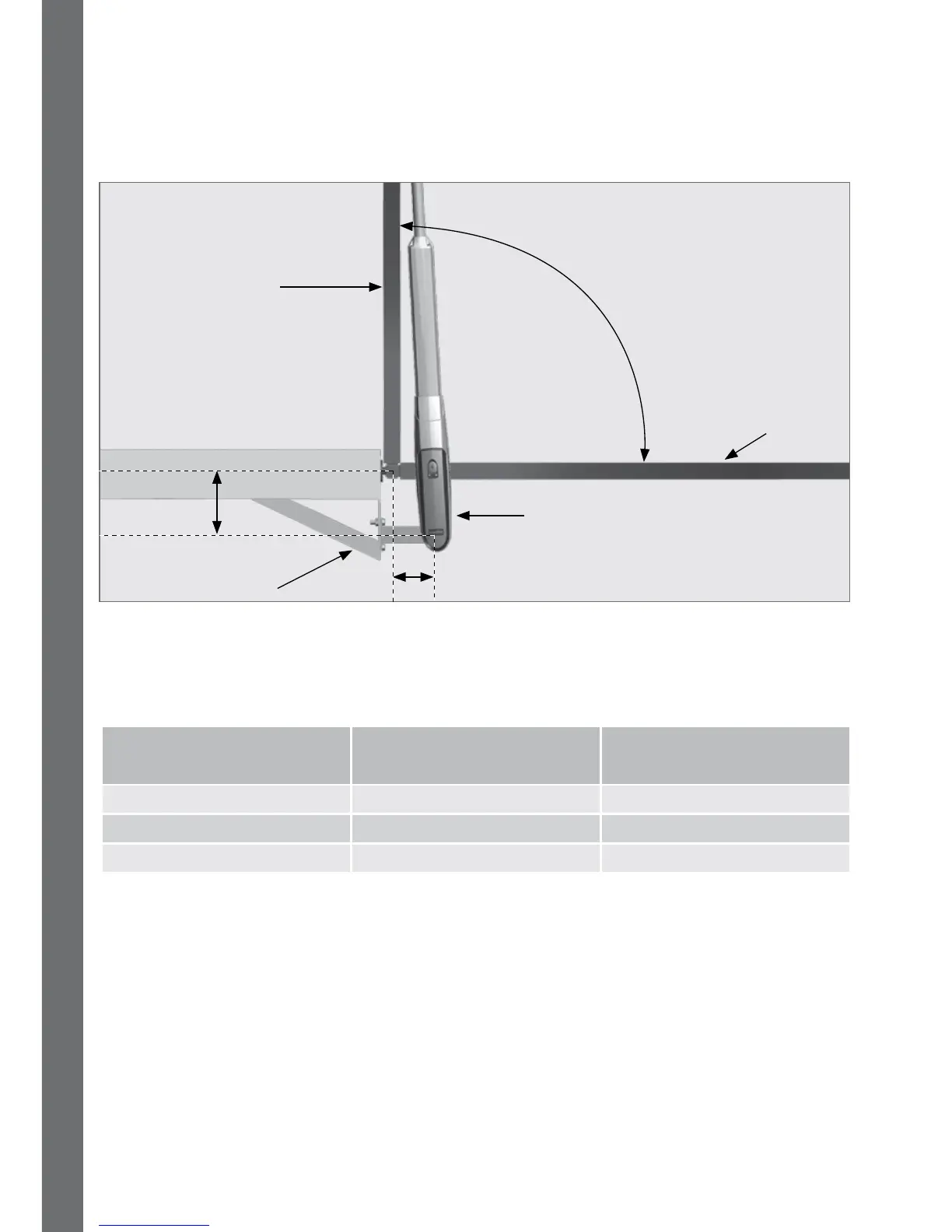

FIGURE 28. VANTAGE 500 OUTWARD OPENING GATE
Make up bracket to suit
B
Gate in closed
position
Gate in open position
VANTAGE
operator
Gate opening angle
VANTAGE 500 Outward Opening Gate:
VANTAGE 500 Outward Opening Geometry Tables:
Gate Opening Angle A B
90° 280mm 205mm
100° 260mm 195mm
110° 240mm 190mm
A
TABLE 17
