ASSEMBLY INSTRUCTIONS

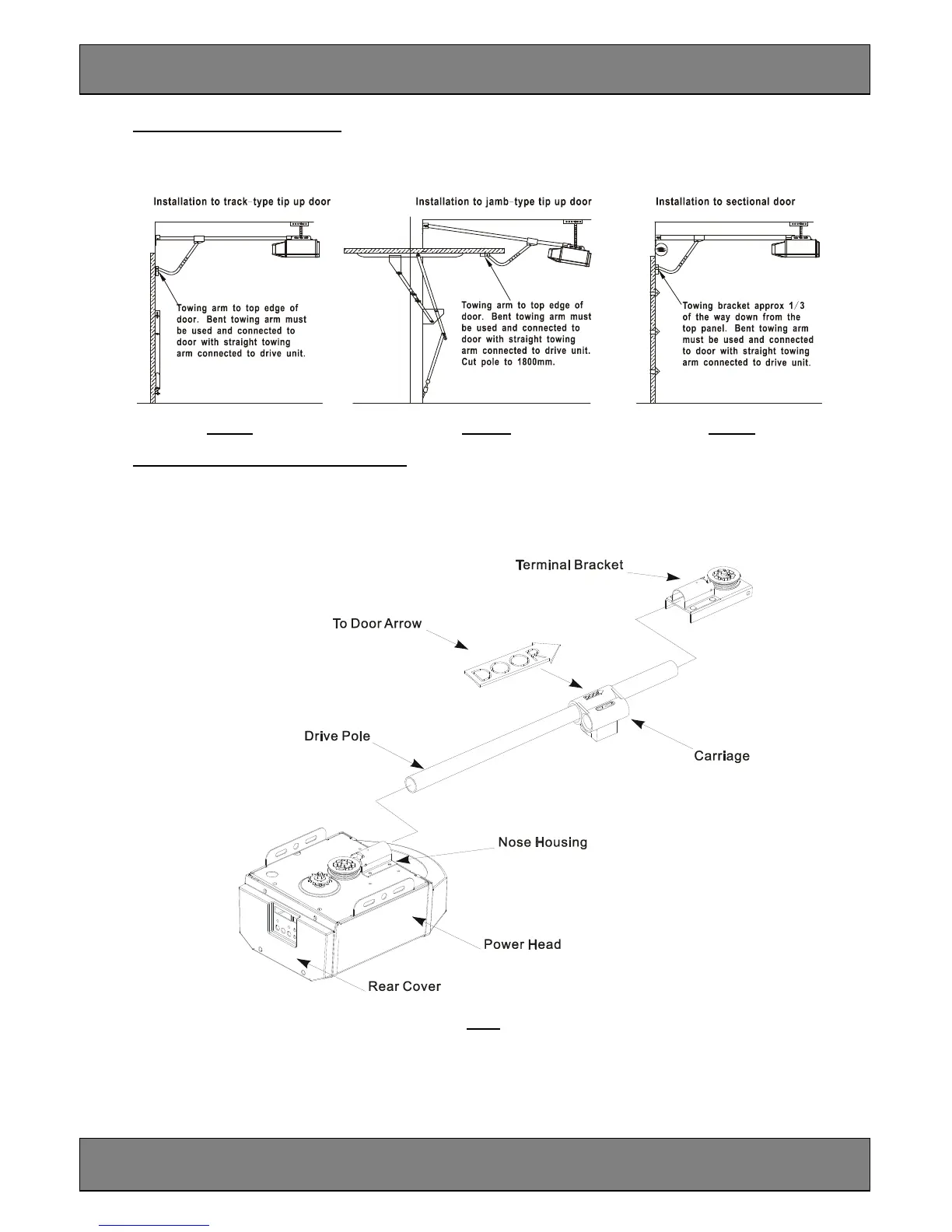

1. Identifying Garage Door Type
Identify the garage door type and then select the preferred installation type that is best suited to the
application.
Fig 1A Fig 1B Fig 1C
2. Assembling Drive Pole and Power Head
Refer to Figs 1A~C in order to identify Garage Door type and length of rail required.
On a clean, smooth surface, unpack the Power Head, Drive Pole, Carriage and Terminal Bracket (Fig.2)
and place them end to end on the floor.
Fig 2
Insert the Drive Pole into the Nose Housing of the Power Head ensuring that the Drive Pole hits the stopper in
the end of the Nose Housing. (Fig.3)
