CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL 22

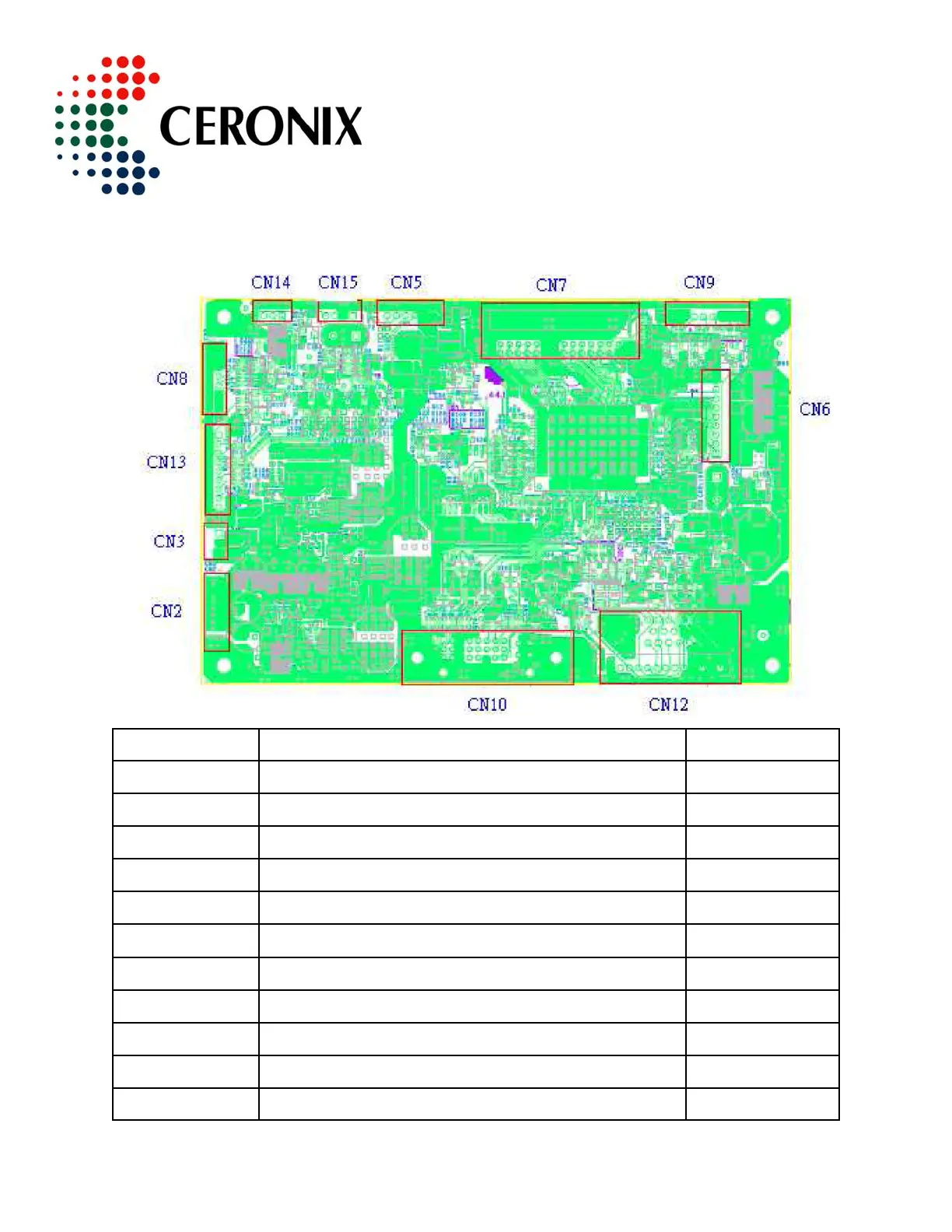

13. A/D Controller Board Pin Description
CONNECTOR DESCRIPTION PIN COUNT
CN2 24VDC INPUT 6
CN3 TOUCH POWER 3
CN5 GPIO, UART 6
CN6 VIDEO ITU656, LIGHT SENSOR 10
CN7 LCD LVDS 32
CN8 INVERTER 7
CN9 AUDIO 8
CN10 DVI-D 24
CN12 VGA 15
CN13 OSD KEY 9
CN15 IR RECEIVER 15
