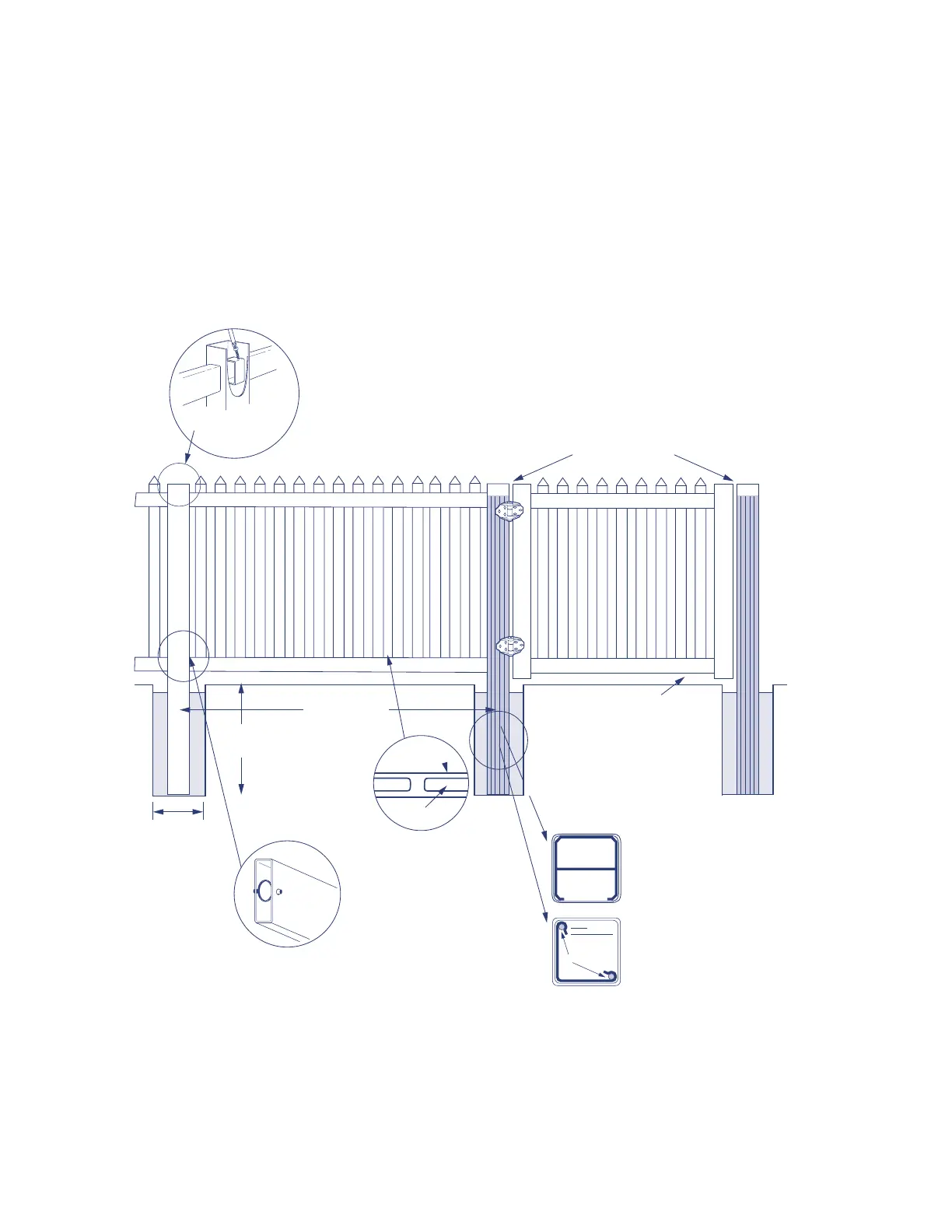

POST HOLES
4 x 4 POSTS = 10"
5 x 5 POSTS = 12"
ALLOW CLEARANCE
FOR GATE SWING
ALLOW 1" FOR HINGE AND
3/4" FOR LATCH SYSTEM
ATTACH TRADITIONAL PICKETS TO RAILS
WITH 5/16" X 3/4" HEX WASHER HEAD
SCREWS. TIGHTEN WITH 1/2" NUT DRIVER.
INSERT PLUG-IN RAIL
DIG HOLES 30"
DEEP OR TO
FROST LINE
LOCK TOP RAIL IN POST
WITH #8 X 3/4" SCREW
BOTTOM RAIL
PICKETS
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
4 x 4 POST CENTERS
3" PICKET = 96"
5 x 5 Post Centers = 97"
