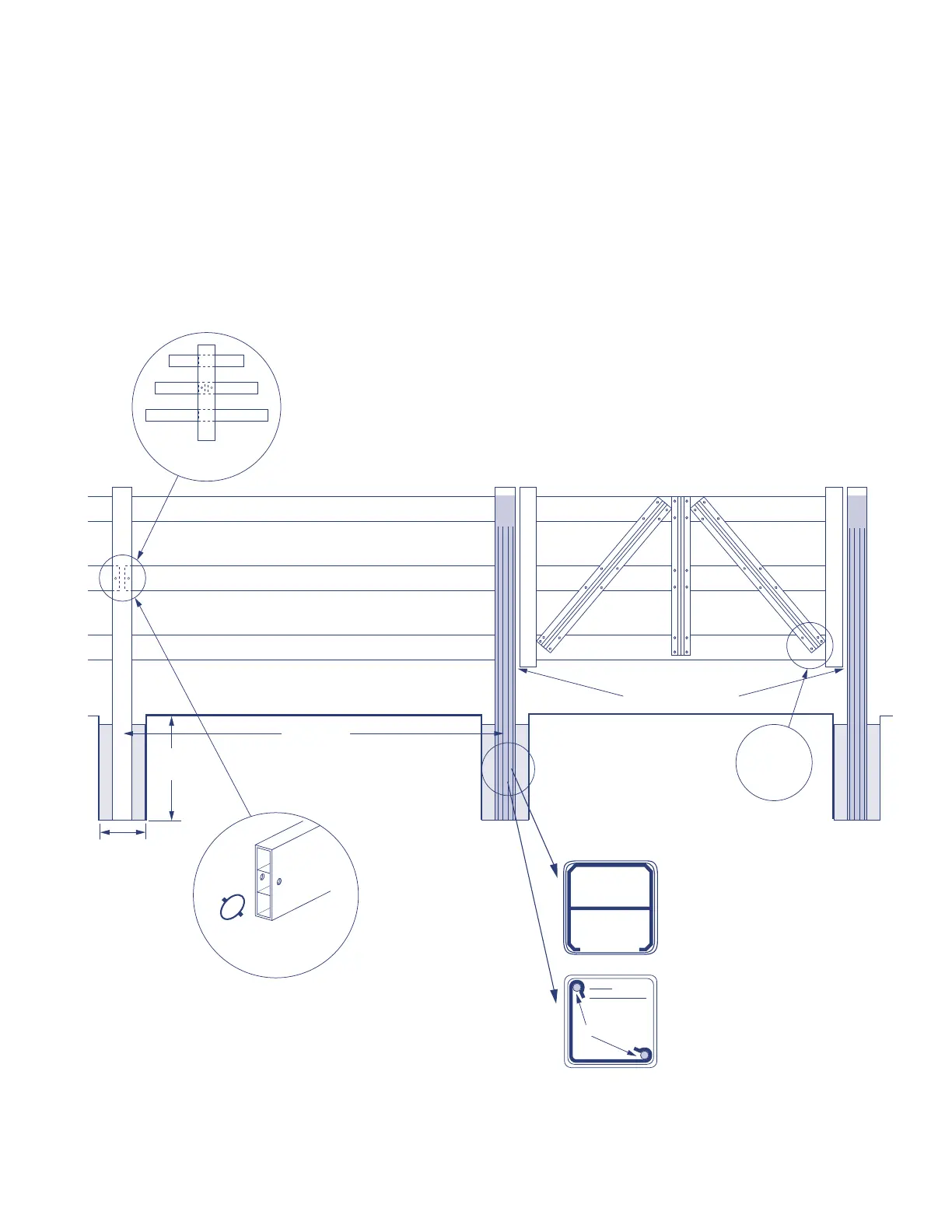

ALLOW 1-1/2" GAP ON HINGE SIDE
OF GATE AND 1-1/4" ON LATCH
SIDE OF GATE HARDWARE
STAGGER RAIL ENDS FOR
GREATER STRENGTH
ATTACH BRACES
ON BOTH SIDES OF
GATE IN IDENTICAL
POSITIONS
POST HOLES
5 x 5 POSTS = 12"
DIG HOLES 30"
DEEP OR TO
FROST LINE
POST CENTERS
5 x 5 POSTS = 96"
HOLD RAILS IN POST WITH LOCK RING.
DEPRESS LOCK RING TABS
INSERT IN RAIL AND
RELEASE
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
