15

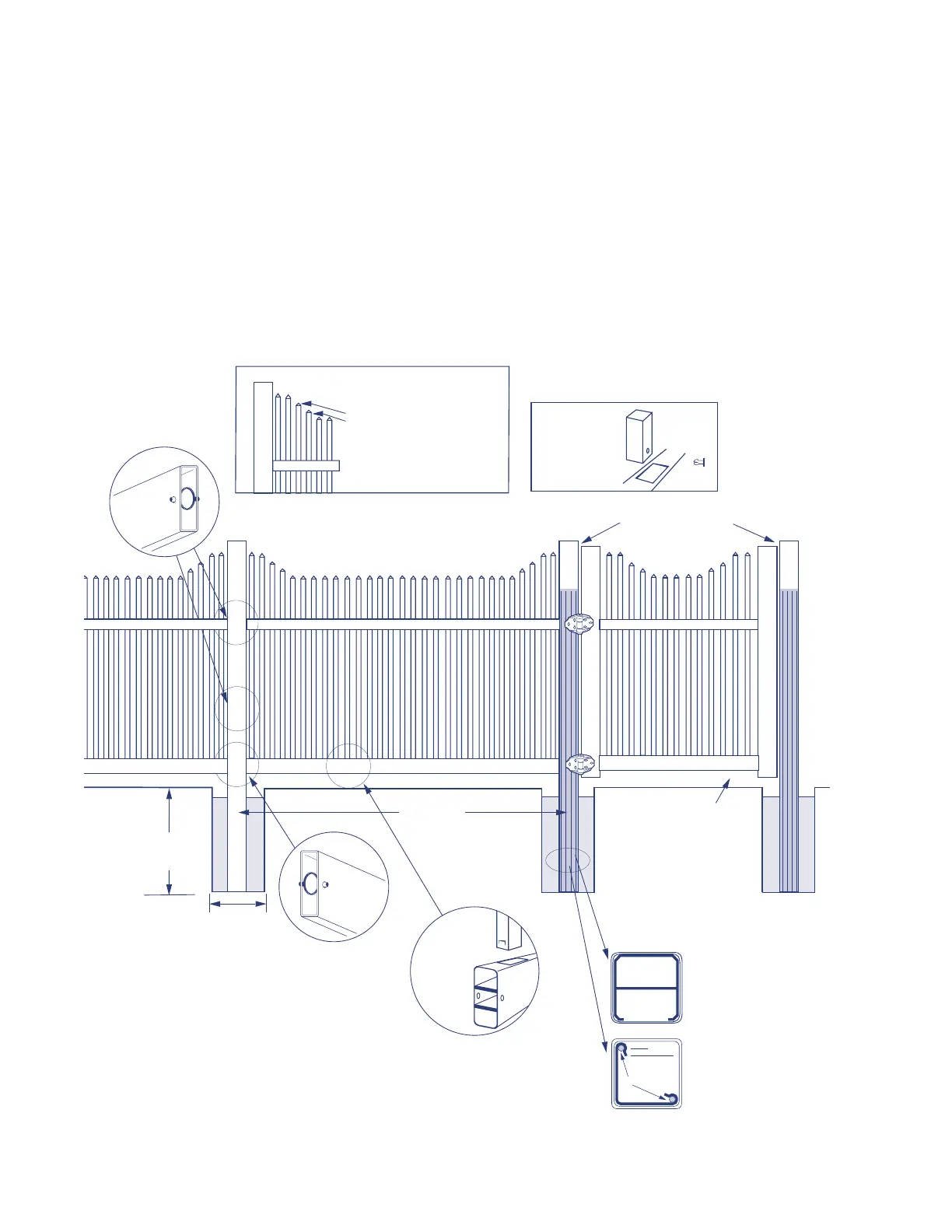

Classic Fence
Includes: Manchester (straight & concave)
ALLOW CLEARANCE
FOR GATE SWING
ALLOW 1" FOR HINGE
AND 3/4" FOR LATCH SYSTEM
PICKETS ARE
FACTORY CRIMPED
TO HOLD IN RAIL
DIG HOLES 30"
DEEP OR TO
FROST LINE
HOLE SIZE
5 x 5 POST =12"
FOR MANCHESTER CONCAVE,
FIRST FOUR AND LAST FOUR
PICKETS MAY BE FIELD CUT TO
FORM DESIRED DESIGN. TO
HOLD PICKET IN BOTTOM RAIL,
DRILL 1/4" HOLE THROUGH
SIDE OF PICKET AND INSERT
BULLET CLIP
MANCHESTER CONCAVE SHOWN
TO ACHIEVE THIS SCALLOP:
- CUT 2" OFF BOTTOM OF 3RD PICKET
- CUT 4" OFF BOTTOM OF 4TH PICKET
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
POST CENTERS = 96"
