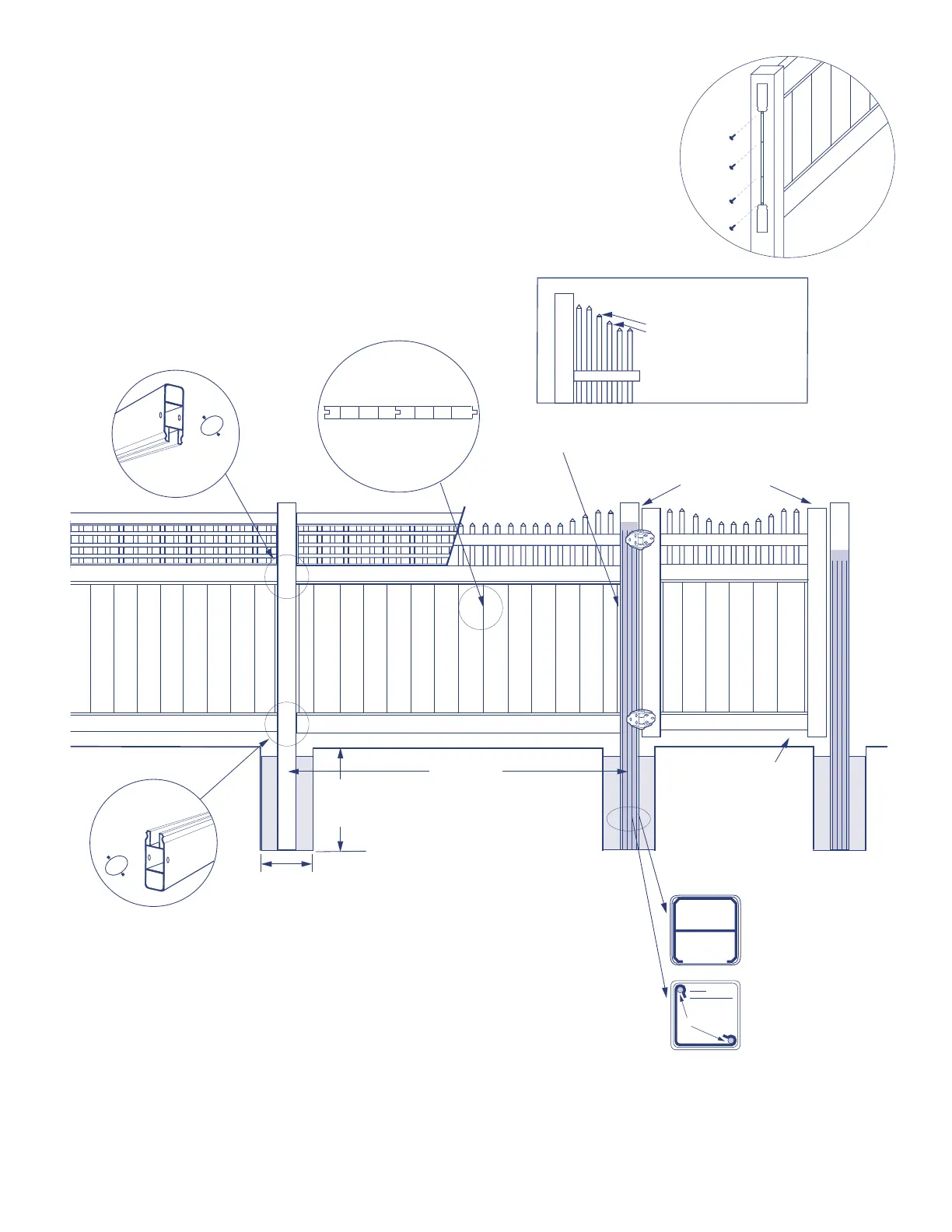

CertainTeed Bufftech - Chesterfield with Westminster Accent

37
Privacy Fence
Includes: Chesterfield with Huntington Accent
Chesterfield with Westminster Accent
ALLOW CLEARANCE
FOR GATE SWING
PICKETS FOR THIS STYLE
ARE TONGUE AND GROOVE
ALLOW 1" FOR HINGE
AND 3/4" FOR LATCH SYSTEM
DIG HOLES 30"
DEEP OR TO
FROST LINE
TO ACHIEVE THIS SCALLOP:
- CUT 1" OFF BOTTOM OF 3RD PICKET
- CUT 2" OFF BOTTOM OF 4TH PICKET
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
POST CENTERS
5 X 5 POSTS = 97"
POST HOLES
5 X 5 POSTS = 12"
WESTMINSTER HUNTINGTON
END CHANNEL
HOLD TOP RAILS
IN POST WITH
LOCK RING
HOLD BOTTOM
RAILS IN POST
WITH LOCK
RING
ATTACH END
CHANNEL TO POST
WITH 4 SCREWS
