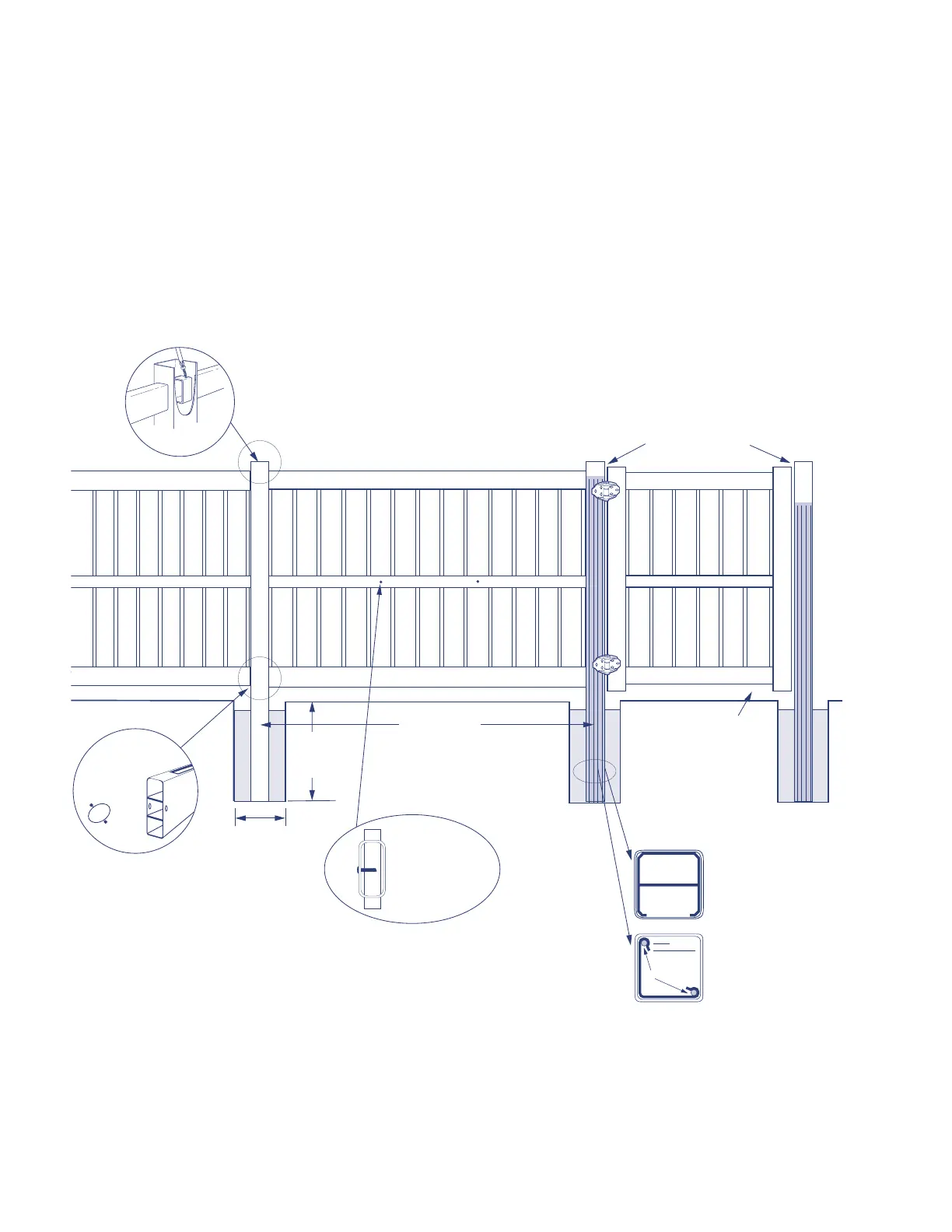

SECURE MIDDLE
RAIL TO PICKETS
WITH (2) #8 X 1-1/2"
SCREWS, CAPS
AND WASHERS
ALLOW CLEARANCE
FOR GATE SWING
ALLOW 1" FOR HINGE
AND 3/4" FOR LATCH SYSTEM
DIG HOLES 30"
DEEP OR TO
FROST LINE
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
POST CENTERS
5 X 5 POSTS = 96"
POST HOLES
5 X 5 POSTS = 12"
HOLD TOP AND BOTTOM
RAILS IN POST
WITH LOCK RING
LOCK TOP RAIL IN POST
WITH #8 X 3/4" SCREW
